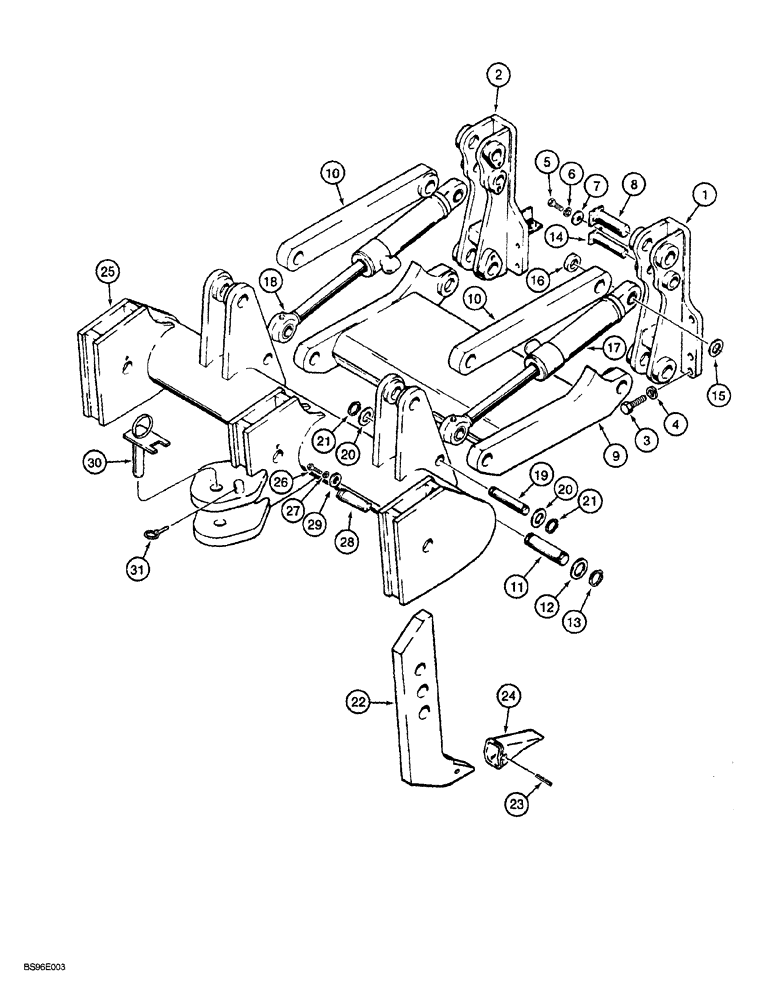

Запчасти Case 1150G (9-008) - RIPPER (05) - UPPERSTRUCTURE CHASSIS
№
Артикул
Название
Примечание
Количество
1
R38913
PLATE
BRACKET mounting, right-hand
1шт.
2
R38914
PLATE
BRACKETmounting, left-hand
1шт.
3
113-941
LOCK BOLT,Locking, 1"-8 x 2 1/2", G8
18шт.
4
D30196
WASHER
flat, special, 1 inch
18шт.
5
106-91020
LOCK BOLT,Locking, 5/8"-11 x 1 1/4", G5, Full Thd
6шт.
6
492-11062
BEARING WASHER,5/8"
6шт.
7
495-11066
WASHER,5/8", SAE
flat, 21/32 x 1-5/16 x 3/32 inch
6шт.
8
R38745
PIN
mounting, lower and upper, Serial Range: arms-brackets
4шт.
9
R38907
ARM
ripper, lower
1шт.
10
R36114
ARM
ripper, upper
2шт.
11
R28375
PIN,179.83mm OD x 50.8mm L
mounting, to tool bar
4шт.
12
95-81155
WASHER,52.38mm ID x 76.2mm OD x 3.35mm Thk
flat, 2-1/16 x 3 x 1/8 inch
8шт.
13
103-16200
SNAP RING,#200, Ext
Pin
8шт.
14
R38178
PIN
mounting, cylinder
2шт.
15
R26690
WASHER
SPACER, outer
2шт.
16
R26689
RING
SPACER washer, inner
2шт.
17
G101272
CYLINDER ASSY.,Double Acting, 50.8mm Rod, 254mm Stroke
102 (4) ID x 245 mm (10 inch) stroke, right-hand ripper, see Figure 8-032
1шт.
18
G101273
CYLINDER ASSY.,Double Acting, 50.8mm Rod, 254mm Stroke
102 (4) ID x 245 mm (10 inch) stroke, left-hand ripper, see Figure 8-032
1шт.
19
R57306
PIN,44.45mm OD x 179.8mm L
mounting, 2 x 7-1/16 inch, cylinder to tool bar
2шт.
20
95-81150
WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk
flat, 1-13/16 x 2-1/2 x 1/8 inch
4шт.
21
103-16175
SNAP RING,#175, Ext
Pin
4шт.
22
122237A1
SHANK, BUCKET TOOTH
ripper
3шт.
23
L32090
PIN
PIN flex, No. 25
3шт.
24
D55468
TOOTH
tooth, standard forged
3шт.
25
R57305
BEAM
BAR tool, includes welded-on drawbar
1шт.
26
106-91020
LOCK BOLT,Locking, 5/8"-11 x 1 1/4", G5, Full Thd
3шт.
27
492-11062
BEARING WASHER,5/8"
3шт.
28
R45977
AXLE PIN,50.8mm OD x 139.7mm L
mounting, shank mounting
3шт.
29
70523
WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk
flat, special, pin retaining
3шт.
30
R26750
PIN
drawbar
1шт.
31
A30338
PIN
lock, drawbar pin
1шт.
Выбрано товаров: 31
