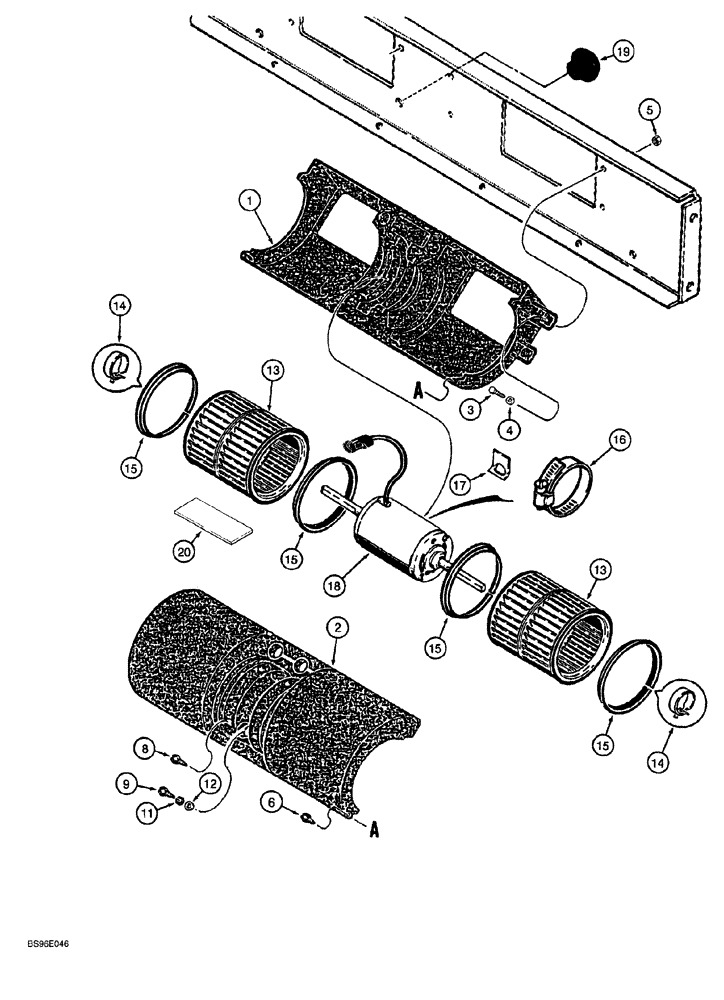

Запчасти Case 1150G (4-038) - ROPS CAB BLOWER, INSIDE CAB ROOF (05) - UPPERSTRUCTURE CHASSIS

1

F64740

HOUSING

fan, lower

1шт.

2

F64741

HOUSING

fan, upper

1шт.

3

463-11012

SCREW,Hex Hd, #10-24 x 3/4"

machine, hex head, No. 10 NC x 3/4 inch

4шт.

4

195-513

WASHER,#10

flat, 7/32 x 1/2 x 3/64 inch

4шт.

5

230-42409

NUT,#10-24, GA

hex, self-locking, No. 10 NC

4шт.

6

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

8шт.

8

187-1928

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

self-tapping, pan head Phillips, No. 10 - 16 x 1 inch, motor mounting

4шт.

10

260-16512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

2шт.

11

493-41020

LOCK WASHER,Ext Tooth, #10

2шт.

12

495-31022

WASHER,#10

Replaces 195-513

2шт.

13

F64935

BLOWER,Fan

FAN blower

2шт.

14

F64936

CLAMP

steel spring, fan retaining

2шт.

15

F64739

RING

plastic, fan retaining

4шт.

16

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

adj., 2 - 1/16 - 3 inch dia., motor retaining

1шт.

17

R51563

CLIP,ELECTRICAL

motor retaining clamp

1шт.

18

1546448C1

MOTOR, ELECTRIC

blower, 24 volt

1шт.

18

370512A1R

REMAN-ELECTRIC MOTOR

1150G, Reman For New P/N 1546448C1

1шт.

18

370512A1C

CORE-ELECTRIC MOTOR

Return Number

1шт.

19

R54547

GROMMET

26 mm (1-1/32 inch) hole size, in blower mounting panel

1шт.

20

1999608C1

GASKET

1 x 4 x 1/16 inch, blower motor mount

2шт.
