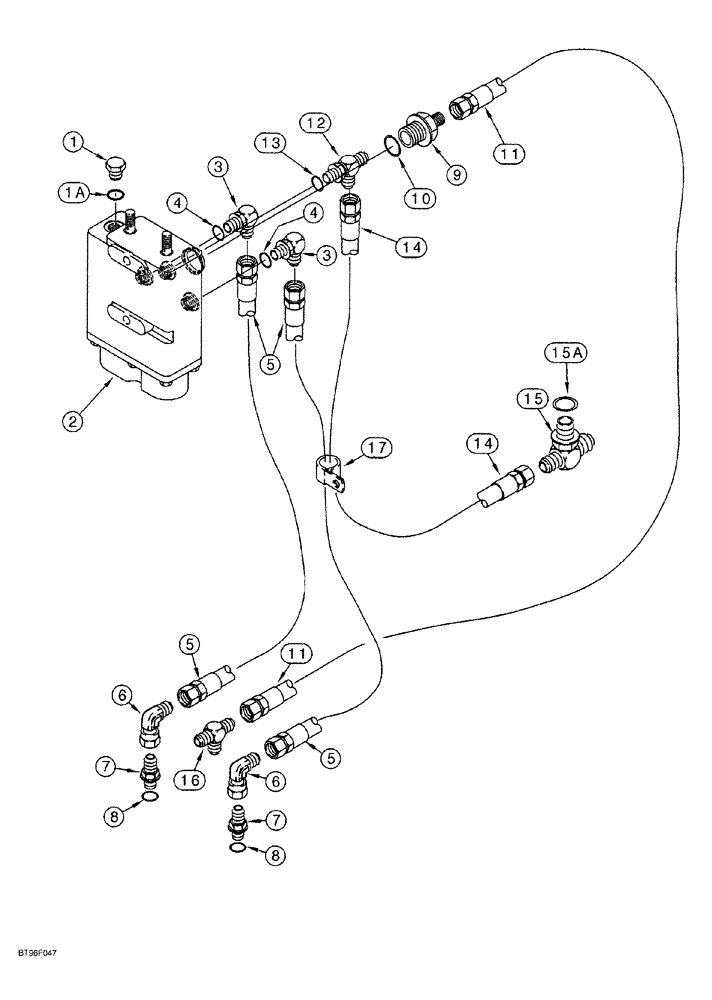

Запчасти Case 1150G (7-008) - POWER BRAKE HYDRAULIC LINES, VALVE TO TRANSMISSION (04) - UNDERCARRIAGE

1

76349

PLUG,9/16" - 18 ORB

Incl. Ref 1A

1шт.

2

1272218C1

VALVE

ASSY., brake, see Figure 7-010 , see Figure 7-006 for mounting hardware and linkage

1шт.

3

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90°, 9/16-18 inch flare x adj. O-ring boss, Includes: Ref. 4

2шт.

5

R58723

HOSE

1163 mm (45-7/8 inch) long, Serial Range: valve-transmission

2шт.

6

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

2шт.

7

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

If used, Incl. Ref. 8

2шт.

9

218-5044

HYD CONNECTOR,9/16" - 18 Male JIC x 1-1/16" - 12 Male ORB

straight, 9/16-18 flare x 1-1/16-12 inch O-ring boss, Includes: Ref. 10

1шт.

10

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

11

L19294

HOSE,0.38" ID x 18.75", SAE 100R1

476 mm (18-3/4 inch) long, valve to transmission

1шт.

12

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: Ref. 13

1шт.

14

143462A1

HOSE ASSY.

1117 mm (44 inch) long, brake valve to torque converter, see Figure 6-034, Ref. 29 for attaching hose

1шт.

15

218-5184

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8-14 inch adj. O-ring branch x flare x flare, Includes: Ref. 15A

1шт.

15a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

16

218-613

TEE,9/16"-18, 37 Degree x 1/4"-18, NPTF Run

9/16-18 flare branch x flare x 1/4 inch PT, see Figure 6-034, Ref. 2 for attaching hose

1шт.

17

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type

1шт.

1a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
