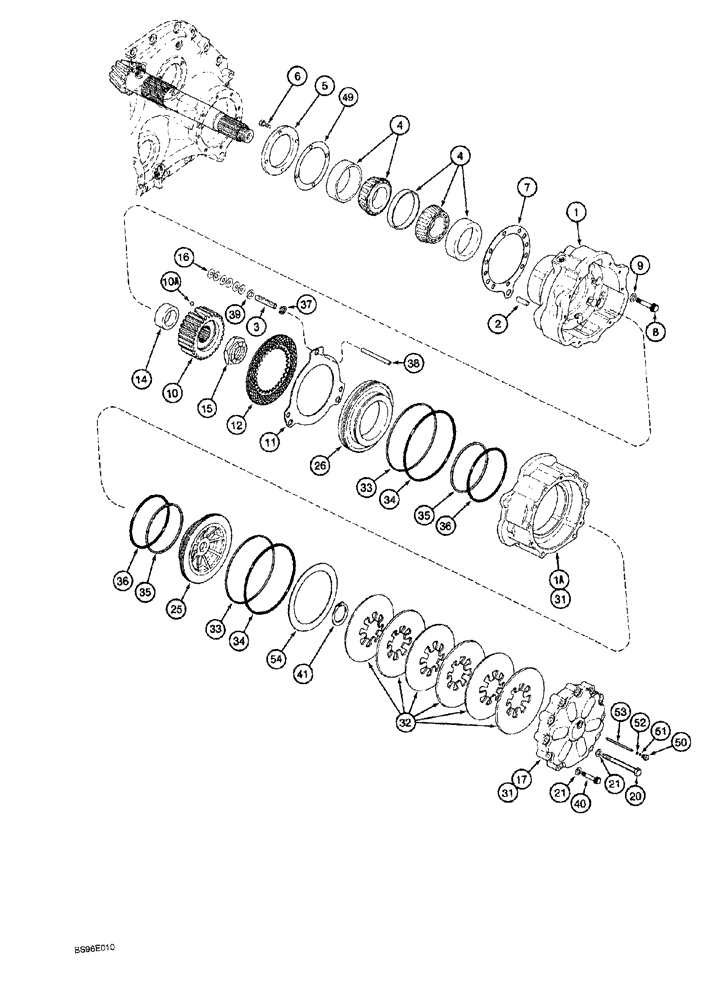

Запчасти Case 1150G (7-002) - TRANSMISSION BRAKES, HOUSING, DISCS AND ADJUSTERS (04) - UNDERCARRIAGE

139993A1

TRANSMISSION

ASSY., see Figures 6-010 - 6-031C and 7-002, Includes: Ref. 1 - 54

1шт.

1

1348984C2

HOUSING

brake, intermediate, see Figure 6-010

1шт.

1a

1997049C1

HOUSING

brake, right-hand

1шт.

1348960C2

HOUSING

brake, left-hand

1шт.

2

37-1860

DOWEL,3/4" x 3 3/4"

dowel, 1/2 x 3-3/4 inch, hardened

4шт.

3

139967A1

TUBE,12.7 mm OD, 65.13 mm Length

self-adjusting

6шт.

4

1348834C1

TAPERED BEARING,53.98mm ID x 104.8mm OD x 73.46mm W

tapered roller, paired, includes two bearings, two cups and a center retainer

2шт.

5

A50686

RETAINER

tapered roller bearing

2шт.

6

107-9616

LOCK BOLT,Locking, 3/8"-16 x 1", G8, Full Thd

8шт.

7

A50688

SHIM,.005" Thk

(0.127 mm)

1шт.

Part of seal kit 238104A1

1шт.

7

A50687

SHIM,.007" Thk

(0.178mm)

1шт.

Part of seal kit 238104A1

1шт.

8

180-608

12 PT SCREW,Flg, 7/16" - 14 x 2 1/4", Gr 8

BOLT, 12 point flange, chemical coating, 7/16 NC x 2-1/4 inch, grade 8

16шт.

9

A50689

WASHER

flat, special, 1/2 x 13/16 x 1/16 inch

16шт.

10

139962A1

HUB

brake disc, 29 external and 27 internal teeth, Includes: Ref. 10A

2шт.

10a

NSS

NOT SOLD SEPARAT

BALL steel, 9/32 inch diameter

1шт.

11

1348965C3

LARGE PLATE

PLATE, LARGE separator, 46 external teeth

14шт.

12

G102354

PLATE

DISC friction

12шт.

14

A50691

SPACER

SPACER brake disc hub

2шт.

15

131-468

NUT,1 1/2"-12

thin hex, self-locking, 1-1/2-12 inch

2шт.

16

1348985C1

SPRING

piston return

36шт.

17

139958A1

COVER

brake

2шт.

20

107-9692

LOCK BOLT,Locking, 3/8"-16 x 5 3/4", G8

16шт.

21

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

flat, 13/32 x 13/16 x 3/32 inch, hardened

22шт.

25

1348971C2

PISTON

parking brake

2шт.

26

1348972C2

PISTON

brake

2шт.

31

B17555

LOCTITE

SEALANT, Gasket Eliminator No. 515, 50 ml tube

1шт.

Part of seal kit 238104A1

1шт.

32

1348986C1

SPRING

parking brake

12шт.

33

1348992C1

SEAL

brake piston

4шт.

Part of seal kit 238104A1

1шт.

34

238-7167

O-RING,0.103" Thk x 6.987" ID, -167, Cl 7, 75 Duro

4шт.

Part of seal kit 238104A1

1шт.

35

1348903C1

SEAL

brake piston

4шт.

Part of seal kit 238104A1

1шт.

36

238-5159

O-RING,0.103" Thk x 4.987" ID, -159, Cl 5, 75 Duro

4шт.

Part of seal kit 238104A1

1шт.

37

100-1450

SNAP RING,#50, Ext

12шт.

38

37-1660

DOWEL,3/8" x 3 3/4"

dowel, 3/8 x 3-3/4 inch, hardened

6шт.

39

496-41041

WASHER,13/32" x 1 1/8" x .134"

Hardened, Replaces 25553R1

6шт.

40

180-618

12 PT SCREW,Flg, 3/8" - 16 x 2 1/4", Gr 8

BOLT, 12 point flange, chemical coating, 3/8 NC x 2-1/4 inch

6шт.

41

100-16193

SNAP RING,#193, Ext

2шт.

49

1348841C1

SHIM

bearing, 0.08 mm thick

1шт.

Part of seal kit 238104A1

1шт.

49

1348842C1

SHIM

bearing, 0.13 mm thick

1шт.

Part of seal kit 238104A1

1шт.

50

1997050C3

PLUG

special

2шт.

51

238-5006

O-RING,0.07" Thk x 0.114" ID, -6, Cl 5, 75 Duro

2шт.

Part of seal kit 238104A1

1шт.

52

100-2531

SNAP RING,0.312", Int, #31

2шт.

Part of seal kit 238104A1

1шт.

53

139966A1

PIN

sight gauge

2шт.

54

1348999C1

SPRING WASHER,146.8mm ID x 187mm OD x 1.05mm Thk

spring, parking brake

2шт.

238104A1

SEAL KIT

KIT transmission, Includes: Ref. 7, 31, 33 - 36, 49, 51, 52, plus additional seals on Figures 6-010 - 6-018, 6-024 and 6-031A

1шт.
