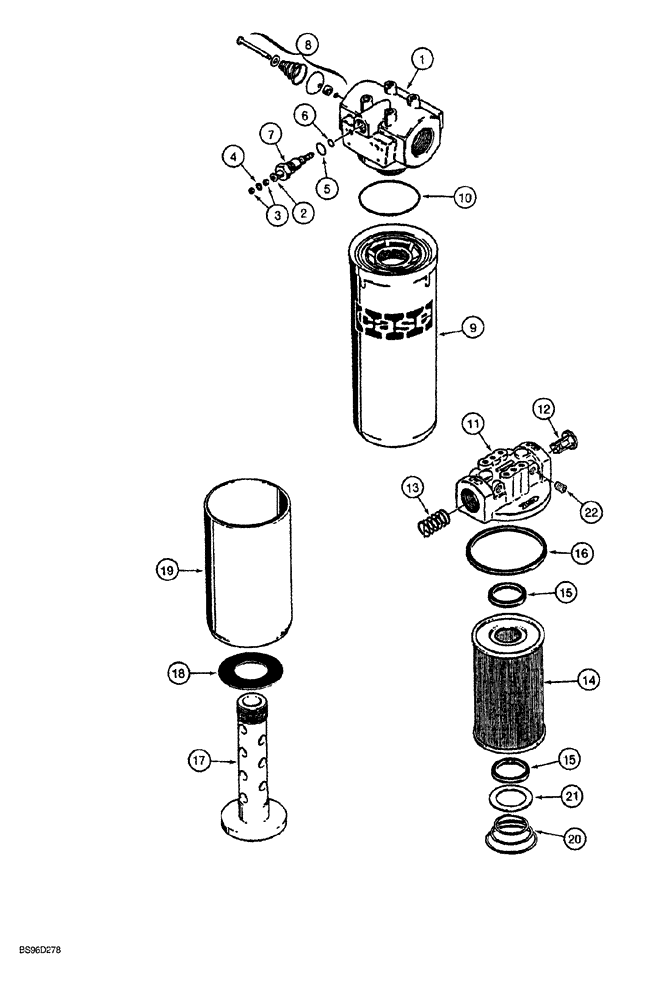

Запчасти Case 1150G (6-042) - TRANSMISSION OIL FILTER ASSEMBLIES (04) - UNDERCARRIAGE

R54348

FILTER ASSY

oil, transmission, see Figure 6-034, Includes: Ref. 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD filter

1шт.

N13268

PRESSURE SWITCH

ASSY., restriction, electrical, Includes: Ref. 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

WASHER identification, red-white color

1шт.

3

129-667

NUT,#10-32, LH

2шт.

4

493-21020

LOCK WASHER,Int Tooth, #10

(3/16")

1шт.

6

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

7

NSS

NOT SOLD SEPARAT

INDICATOR restriction, order N13268 assembly

1шт.

8

NSS

NOT SOLD SEPARAT

VALVE bypass, filter, 50 psi, order R54348 filter assembly

1шт.

N9086

HYDRAULIC OIL FILTER

ASSY., filter, Includes: Ref. 9, 10

1шт.

9

NSS

NOT SOLD SEPARAT

ELEMENT filter, order N9086 element assembly

1шт.

10

D21006

O-RING,0.125" Thk x 3.125" ID, 70 Duro

element

1шт.

R50627

FILTER

ASSY., suction line, transmission oil, see Figure 6-036, Includes: Ref. 11 - 22

1шт.

11

NSS

NOT SOLD SEPARAT

HEAD filter, order R50627 assembly

1шт.

12

D74434

VALVE POPPET

relief

1шт.

13

N14031

SPRING

relief valve

1шт.

14

S233969

FILTER, ENGINE OIL

FILTER, OIL ELEMENT

1шт.

15

W12214

GASKET

element

2шт.

16

T29789

SEALING RING,4.35" ID x 0.25" Width

SEALRING filter housing to head

1шт.

17

T29796

SUPPORT

POST center

1шт.

18

T29795

GASKET

lower

1шт.

19

T29794

HOUSING

filter assembly

1шт.

20

T29793

SPRING

conical

1шт.

21

T42195

WASHER

spring seat

1шт.

22

86637724

PLUG,1/8" - 27 NPT

Headless

4шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
