(6-040) - TRANSMISSION HYD CIRCUIT, COOLING SYSTEM, MODELS W/R51141 THERMAL BYPASS VALVE, JJG0218249 & AFTER

Запчасти Case 1150G (6-040) - TRANSMISSION HYD CIRCUIT, COOLING SYSTEM, MODELS W/R51141 THERMAL BYPASS VALVE, JJG0218249 & AFTER (04) - UNDERCARRIAGE

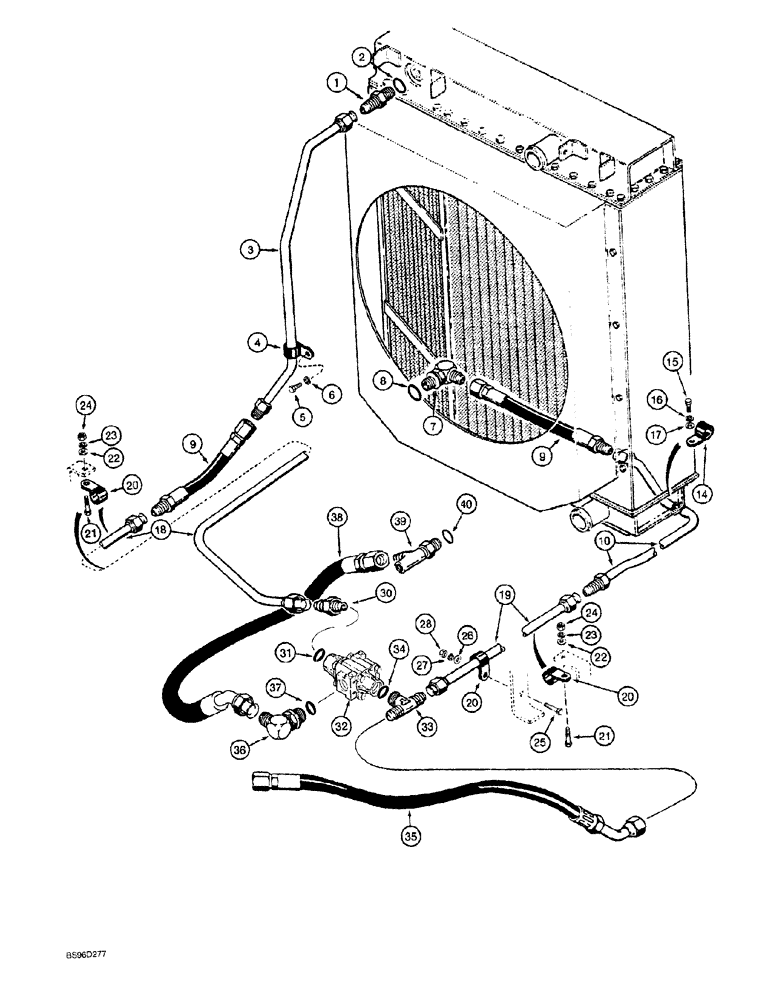

Схема запчастей Case 1150G - (6-040) - TRANSMISSION HYD CIRCUIT, COOLING SYSTEM, MODELS W/R51141 THERMAL BYPASS VALVE, JJG0218249 & AFTER (04) - UNDERCARRIAGE
23
39
17
28
32
5
15
16
27
20
35
21
23
20
14
2
9
31
8
24
9
19
36
38
22
30
3
6
34
22
4
24
37
33
25
10
26
40
21
7
18
20
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adapter, Straight, O-Ring boss, Top rear of radiator, Incl. Ref. 2

1шт.

2

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

3

R55011

PIPE,0.75" OD

TUBE, to top of radiator, 62 inch gauge long track models only

1шт.

4

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type, To rear of radiator

1шт.

5

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

6

492-11038

LOCK WASHER,3/8"

1шт.

7

218-5550

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90°, long, 1-1/16-12 inch flare x O-ring boss, adjustable, Includes: Ref. 8

1шт.

8

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

9

R49468

HOSE

305 mm (12 inch) long

2шт.

10

R54645

PIPE,0.75" OD

TUBE, from lower front of radiator

1шт.

14

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type, Front of radiator

1шт.

15

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

16

492-11038

LOCK WASHER,3/8"

1шт.

17

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

1шт.

18

232855A1

TUBE

from oil cooler at thermo-bypass valve

1шт.

19

R54211

PIPE,19.05 mm OD x 30, 918 mm L

TUBE oil cooler to tee at bypass valve

1шт.

20

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type

4шт.

21

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

22

495-11034

WASHER,5/16", SAE

(flat, 11/32" x 11/16" x 1/16")

3шт.

23

492-11031

LOCK WASHER,5/16"

3шт.

24

425-105

NUT,5/16"-18, G5

3шт.

25

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

26

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

1шт.

27

492-11038

LOCK WASHER,3/8"

1шт.

28

425-106

NUT,3/8"-16, Cl 5

1шт.

30

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adapter, Straight, O-Ring boss, Incl. Ref. 31

1шт.

31

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

32

R51141

THERMOSTAT

VALVE ASSY., bypass, see Figure 6-044

1шт.

33

218-5185

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

TEE, 1-1/16-12 inch adj. O-ring branch x flare x flare, Includes: Ref. 34

1шт.

34

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

35

177052A1

HOSE ASSY.

914 mm (36 inch) long, to clutch lube oil block on front of transmission, return

1шт.

36

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 37

1шт.

37

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

38

177160A1

HOSE ASSY.

650 mm (25-5/8 inch) long, thermal bypass valve to torque converter port

1шт.

39

D44004

FITTING

TEE special, at torque converter port, Includes: Ref. 40

1шт.

40

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.
