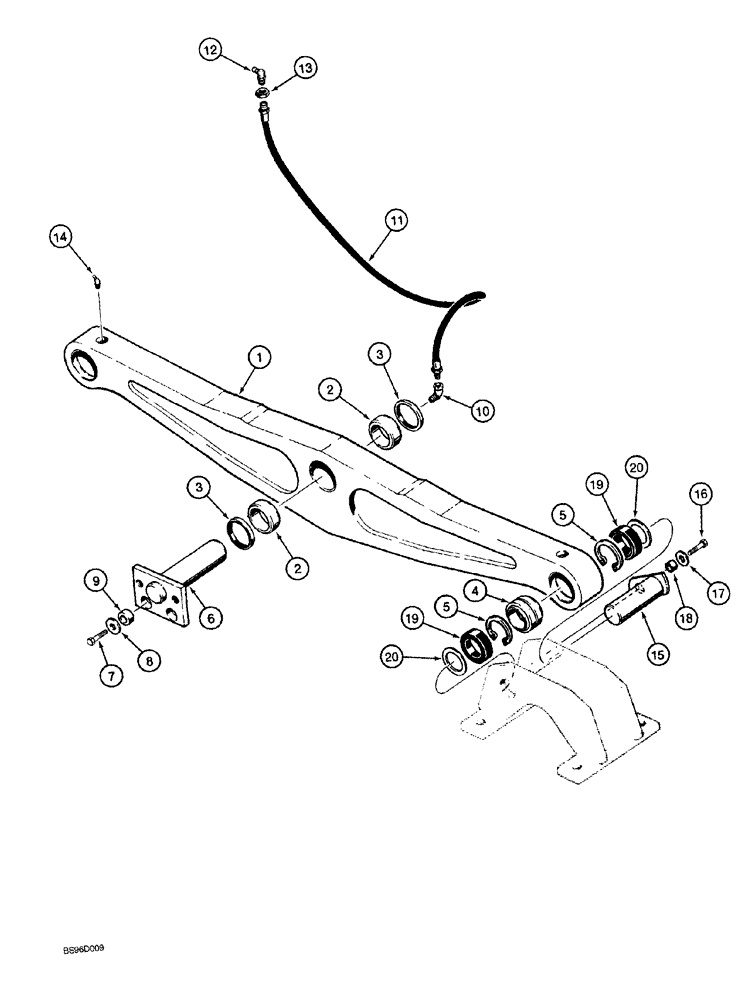

Запчасти Case 1150G (5-028) - SUSPENSION SYSTEM, EQUALIZER BEAM (04) - UNDERCARRIAGE

R55857

BEAM ASSY.

equalizer, 1575 mm (62 inch) gauge models

1шт.

R55859

BEAM ASSY.

equalizer, 1880 mm (74 inch) gauge models, not shown, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

BEAM equalizer suspension

1шт.

2

D46403

BUSHING,63.75mm ID x 76.2mm OD x 28.44mm L

center

2шт.

3

R39286

SEAL,63.5mm ID x 76.33mm OD x 7.92mm Thk

bushing, uses Ref. 3A, B17069, Loctite, and Ref. 3B, B500637, primer

2шт.

3a

B17069

LOCTITE

Hi Strength, No. 601, 2 oz. (50 ml), use on center bushing seals, use with B500637 primer, not shown

1шт.

3b

B500637

LOCTITE

PRIMER Locquic, Grade T, 6 oz. aerosol can, use with B17069 Loctite, not shown

1шт.

4

R55649

BUSHING,50.8mm ID x 80.96mm OD x 44.45mm W

self-aligning, outer

2шт.

5

100-21315

SNAP RING,3.156", Int, #315

Outer bushing

4шт.

6

R40497

PIN,63.5mm OD x 213mm L

center, equalizer beam to main frame

1шт.

7

113-2714

LOCK BOLT,Locking, 3/4"-10 x 2", G8

2шт.

8

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

flat, 13/16 x 1-1/2 x 7/32 inch, hardened

2шт.

9

T31129

BUSHING,19.66mm ID x 31.75mm OD x 17.48mm L

pin

2шт.

10

221-1411

ELBOW,90 Degree, 1/8"-27, NPT

ELBOW street, 90°, 1/8 inch PT

1шт.

11

R45862

HOSE,3.17mm ID x 1041.4mm L, SAE 100R7

1041 mm (41 inch) long

1шт.

12

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING grease, 90°, 1/4-28 taper x 3/4 inch

1шт.

13

F53473

LOCK NUT,1/8-27 NPSM

special

1шт.

14

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

Special, short

2шт.

15

R47945

PIN,50.77mm OD x 151.13mm L

Beam, outer

2шт.

16

107-91228

LOCK BOLT,Locking, 3/4"-10 x 1 3/4", G8, Full Thd

2шт.

17

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

flat, 13/16 x 1-1/2 x 7/32 inch, hardened

2шт.

18

T31129

BUSHING,19.66mm ID x 31.75mm OD x 17.48mm L

pin

2шт.

19

R36521

SEAL

pin

4шт.

20

D34668

WASHER,52.39mm ID x 76.2mm OD x 3.57mm Thk

flat, special

4шт.
