(1-012) - PICTORIAL INDEX - EQUIPMENT HYDRAULIC CIRCUIT SUPPLY AND RETURN LINES

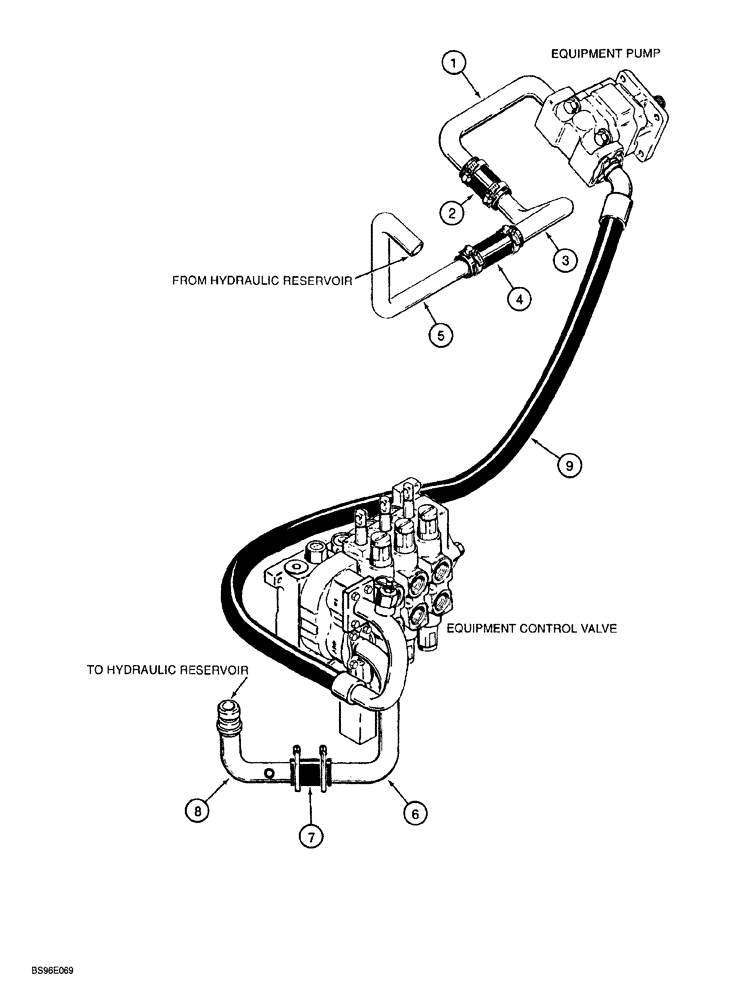

Запчасти Case 1150G (1-012) - PICTORIAL INDEX - EQUIPMENT HYDRAULIC CIRCUIT SUPPLY AND RETURN LINES (00) - PICTORIAL INDEX

Схема запчастей Case 1150G - (1-012) - PICTORIAL INDEX - EQUIPMENT HYDRAULIC CIRCUIT SUPPLY AND RETURN LINES (00) - PICTORIAL INDEX
7
1
9
2
5
6
8
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Tube at pump, Page 8-7

1шт.

2

Hose, connecting, Page 8-7

1шт.

3

Tube at pump, Page 8-7

1шт.

4

Hose, connecting, Page 8-7

1шт.

5

Tube from reservoir to pump, Page 8-7

1шт.

6

Tube at control valve outlet, Page 8-9 - 8-9D

1шт.

7

Hose, connecting, Page 8-9 - 8-9D

1шт.

8

Tube, return to hydraulic reservoir, Page 8-9 - 8-9D

1шт.

9

Hose to control valve, Page 8-9 - 8-9D

1шт.
