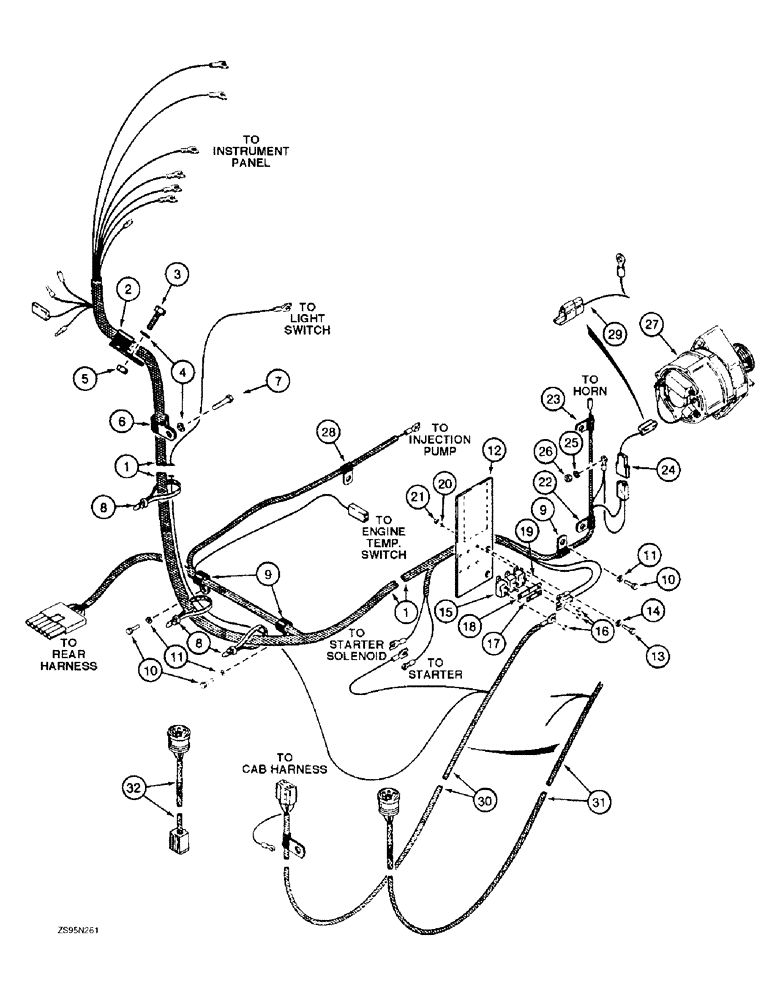

Запчасти Case 1150E (4-30) - FRONT WIRING HARNESS AND CONNECTIONS, 6T-590 ENGINE, 62" GUAGE LONG TRACK DOZERS & LOADER MODELS (04) - ELECTRICAL SYSTEMS

1

R54110

HARNESS

- front wiring, prior to P.I.N. JAK0009807

1шт.

1

R57562

HARNESS

- front wiring, P.I.N. JAK0009807 and after

1шт.

2

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type, On back of instrument panel 5/8", Insul, 3/8" Bolt

1шт.

3

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1-2шт.

4

492-11038

LOCK WASHER,3/8"

2шт.

5

425-106

NUT,3/8"-16, Cl 5

1-2шт.

6

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type, Front harness, Back of firewall 3/4", Insul, 3/8" Bolt

1шт.

7

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

1шт.

8

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

9

49836

CLAMP

- front harness, P-type, 1/2 inch ID, at rear and right-hand side of engine

3шт.

10

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

3шт.

11

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

3шт.

12

R51631

LARGE PLATE

PLATE - circuit breaker mounting (right-hand side of engine), includes decal, for decal see Figure 9-130

1шт.

13

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

2шт.

14

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

15

R45475

BREAKER

- circuit, 40 amp, 2used without cab, 3 used with cab, Includes: Ref. 16

2шт.

16

225-14210

NUT,#10-32

2шт.

17

R45468

PLATE ASSY.

PLATE - circuit breaker mounting, with 2 slots, lower

1шт.

18

R45467

PLATE ASSY.

PLATE - circuit breaker mounting, with 3 slots, upper

1шт.

19

470-1088

SCREW,Slotted Pan Hd, #8-32 x 1/2"

- machine, pan head slotted, No. 8 NC x 1/2 inch

4-6шт.

20

492-11008

LOCK WASHER,#8

Washer, Lock, #8

4-6шт.

21

225-14108

NUT,#8-32

- hex, No. 8 NC

4-6шт.

22

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type, Wiring harness, Use engine oil cooler hardware 1/2", Insul, 3/8" Bolt

1шт.

23

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

P-type, Wiring harness, Use engine oil cooler hardware 5/16", Insul, 3/8" Bolt

1шт.

24

R53471

ELECTRICAL WIRE

WIRE - harness adapter at alternator, prior to P.I.N. JAK0009807

1шт.

25

493-21026

LOCK WASHER,Int Tooth, 1/4"

WASHER - internal tooth lock, 1/4 inch, alternator output terminal

1шт.

26

825-1406

NUT,M6, Cl 8

Alternator output terminal M6, Cl 8

1шт.

27

REF

INSTRUCTION

ALTERNATOR - electrical, for correct assembly and components, see Figures 4-14 and 4-16, mounting on Figure 2-112

1шт.

28

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

P-type, Wiring harness routing, to injection pump, left-hand side of engine, use engine hardware 5/16", Insul, 3/8" Bolt

1шт.

29

L129011

ELECTRICAL WIRE

WIRE - adapter, used between R53471 adapter wire (item 24) and A187916 replacement alternator, if used

1шт.

30

R51357

HARNESS

- lead, circuit breaker to cab wiring harness, prior to P.I.N. JAK0009807 (for cab wiring harness see Figure 4-46)

1шт.

31

R58602

HARNESS

- lead, circuit breaker to cab wiring harness, P.I.N. JAK0009807 and after, for cab wiring harness see Figures 4-50 and 4-52

1шт.

32

100885A1

HARNESS

ADAPTER - harness, air conditioning models, P.I.N. JAK0009807 and after, if used

1шт.
