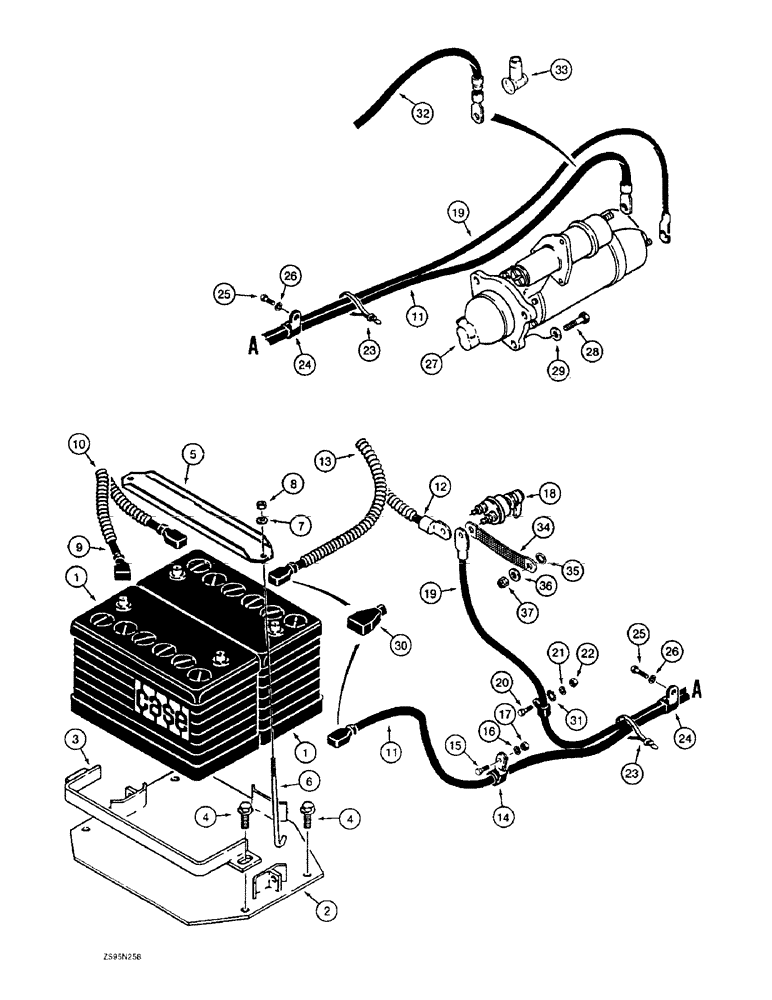

Запчасти Case 1150E (4-24) - BATTERY MOUNTING, CABLES, AND STARTER, 6-830 AND 6T-830 (04) - ELECTRICAL SYSTEMS

1

BMF31E

DRY BATTERY

BATTERY - dry, 12 volt

2шт.

2

R51652

SUPPORT

PLATE - battery mounting

1шт.

3

R51654

SUPPORT

BRACKET - rear, battery retainin

1шт.

4

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

4шт.

5

R46490

BRACKET

- top, battery retaining

1шт.

6

R27652

ROD

BOLT - J-type

2шт.

7

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

8

231-4115

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.

9

177504A1

CABLE

- jumper, between batteries

1шт.

10

R51835

LOOM

CONDUIT - 5 inch (127 mm) long, jumper cable, cut from R44806 bulk conduit, see below

1шт.

11

R54122

CABLE

- positive, battery, to starter solenoid, order R57564 cable and L126713 cover, Ref. 32 and 33 below

1шт.

12

R47203

CABLE

- negative, battery

1шт.

13

R40572

CONDUIT

- plastic, 25 inch (635 mm) long, negative battery cable, cut from R44806 bulk, see below, if used

1шт.

14

R43926

CLAMP

- twist, positive battery cable

1шт.

15

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

16

492-11038

LOCK WASHER,3/8"

1шт.

17

425-106

NUT,3/8"-16, Cl 5

1шт.

18

R52278

SWITCH

- master disconnect

1шт.

19

R40474

CABLE

- battery ground, includes clamp, 81 inch (2057 mm) long, master disconnect switch to starter terminal, prior to P.I.N. JAK0009807

1шт.

19

R54123

CABLE

- battery ground, includes clamp, 61 inch (1550 mm) long, master disconnect switch to starter terminal, P.I.N. JAK0009807 and after

1шт.

20

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

21

492-11038

LOCK WASHER,3/8"

1шт.

22

425-106

NUT,3/8"-16, Cl 5

1шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

24

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

P-type, Positive battery cable and ground cable on RH side of main frame 1 1/2", Insul, 3/8" Bolt

2шт.

25

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

26

492-11038

LOCK WASHER,3/8"

2шт.

27

REF

INSTRUCTION

STARTER - electrical, dozer, for service assembly number and parts list see Figures 4-4 through 4-12

1шт.

28

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

3шт.

29

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

3шт.

30

A27072

COVER

BOOT - positive battery cable terminals

4шт.

31

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

WASHER - internal-external tooth lock, 3/8 inch, between ground cable (item 19) clamp and tank frame

1шт.

32

R57564

CABLE

- positive, battery

1шт.

33

L126713

BOOT

- plastic, starter solenoid terminal, used with R57564 cable

1шт.

34

D120366

STRAP

- ground, cab

1шт.

35

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

WASHER - internal-external tooth lock, 3/8 inch

1шт.

36

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

37

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - light hex, self locking, 3/8 inch NC

1шт.

R44806

LOOM

CONDUIT - bulk, 88-1/2 inch (2248 mm) long

1шт.
