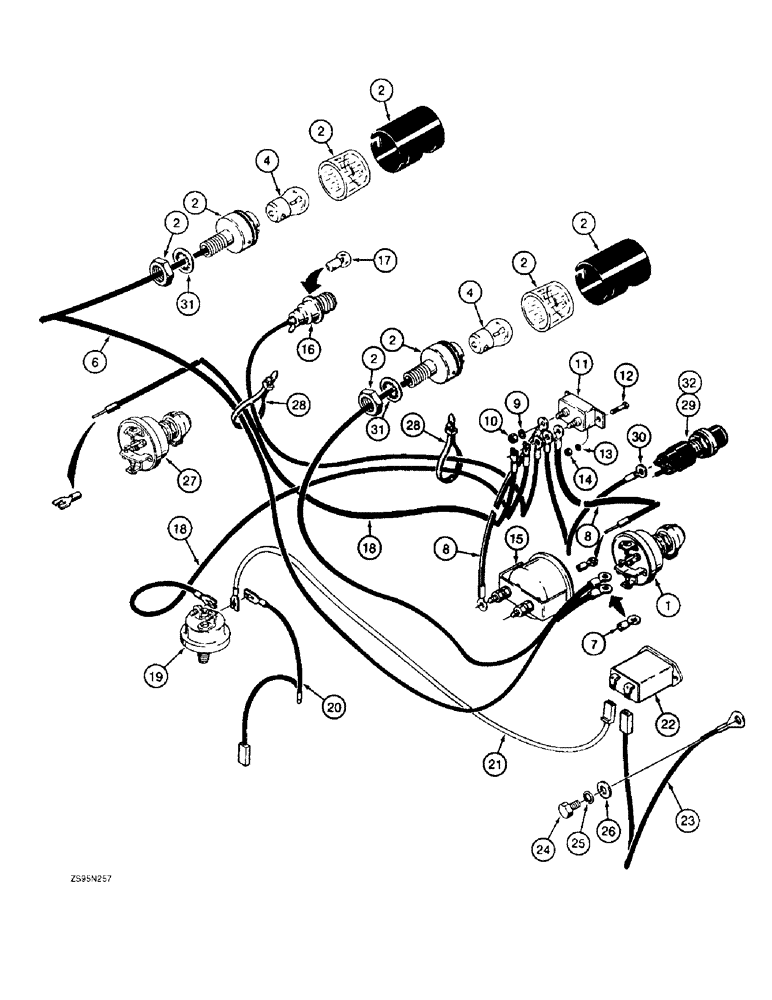

Запчасти Case 1150E (4-22) - INSTRUMENT PANEL WIRING (04) - ELECTRICAL SYSTEMS

1

R54064

IGNITION SWITCH

SWITCH - lamp, instrument panel

1шт.

2

185383A1

ASSEMBLY

LAMP ASSEMBLY - instrument panel, Includes: Ref. 4

2шт.

4

71421

BULB,R5W, 12V, 5W

- No. 623

1шт.

7

223-59

TERMINAL CONNECTOR

TERMINAL - eyelet, 14-16 wire x No. 8 screw size, use to attach trimmed lamp wire to lamp switch (item 1)

2шт.

8

51200220

ELECTRICAL WIRE

WIRE - jumper, from circuit breaker to ammeter and lamp switch

2шт.

9

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

10

225-14210

NUT,#10-32

2шт.

11

L104328

BREAKER

- circuit, 25 amperes, instrument panel lamps

1шт.

12

470-1088

SCREW,Slotted Pan Hd, #8-32 x 1/2"

- machine, pan Phillips, No. 8 NC x 1/2 inch

2шт.

13

492-11008

LOCK WASHER,#8

Washer, Lock, #8

2шт.

14

225-14108

NUT,#8-32

- hex, No. 8 NC

2шт.

15

R38643

ELECTRICAL GAUGE

GAUGE - ammeter

1шт.

16

R43546

LAMP

- transmission filter indicator, Includes: Ref. 17

1шт.

17

L32969

BULB

- lamp, No. 456R

1шт.

18

R33635

CABLE

WIRE - circuit breaker to pressure switch and fuel shutoff switch

2шт.

19

D28796

SWITCH

- pressure, engine oil, see Figure 4-20

1шт.

20

R43547

CABLE

WIRE - with diodes, pressure switch to main wiring harness

1шт.

21

R27252

HARNESS

WIRE - hourmeter to pressure switch

1шт.

22

L107631

METER

HOURMETER - engine

1шт.

23

R47428

ELECTRICAL WIRE

WIRE - hourmeter ground, attach to main frame

1шт.

24

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

1шт.

25

493-21026

LOCK WASHER,Int Tooth, 1/4"

WASHER - internal tooth lock, 1/4 inch

1шт.

26

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

1шт.

27

R54064

IGNITION SWITCH

SWITCH - fuel shutoff

1шт.

28

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

29

S241920

SWITCH

- push button, horn (replaces D34924 switch)

1шт.

30

51200220

ELECTRICAL WIRE

WIRE - horn switch, to instrument panel circuit breaker

1шт.

31

193-63

LOCK WASHER,Int Tooth, 5/8"

WASHER - internal tooth lock, 5/8 inch, lamp ground

2шт.

32

B17425

LOCTITE

SEALANT - pipe threads, with Teflon, Loctite No. 92, 50 ml tube, use to seal the rubber boot of item 29 horn switch

1шт.
