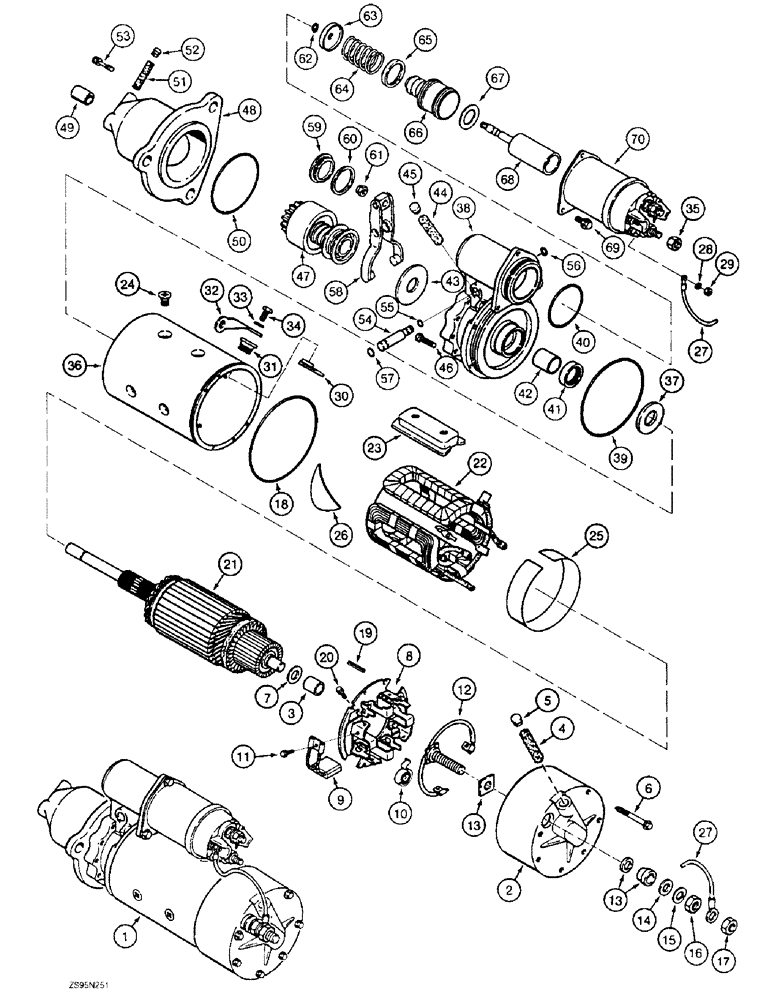

Запчасти Case 1150E (4-04) - STARTER ASSEMBLY, 6-830 AND 6T-830 ENGINE (04) - ELECTRICAL SYSTEMS

A186270

STARTING MOTOR

STARTER ASSEMBLY - production, 24 volt, Delco-Remy No. 1993796, for service order A187568 starter assembly, Ref. 1

1шт.

1

A187568

STARTING MOTOR

STARTER ASSEMBLY - service replacement, 24 volt, Delco-Remy No. 1990453, Includes: Ref. 2 - 70

1шт.

2

A187561

COVER

ASSEMBLY - commutator end, Includes: Ref. 3 - 5

1шт.

3

A40868

BUSHING

- cover

1шт.

Part of Bushing Kit, P/N A187514

1шт.

4

A49769

WICK

- oil

1шт.

Part of Bushing Kit, P/N A187514

1шт.

5

A49573

PLUG

- oil wick

1шт.

Part of Bushing Kit, P/N A187514

1шт.

6

A187511

CAPTIVE WASHER SCREW

BOLT - with washer and seal, commutator end

6шт.

Part of Bushing Kit, P/N A187514

1шт.

7

195-2056

WASHER,5/8" x 1" x .065"

- flat, 9/16 x 1 x 1/16 inch, special

1шт.

Part of Bushing Kit, P/N A187514

1шт.

8

A49778

BRUSH ASSY.

MOUNT - brush, starter, Includes: Ref. 9 - 11

1шт.

9

A49777

COMMUTATOR BRUSH

BRUSH - starter

4шт.

10

A49575

SPRING

- brush

4шт.

11

A47894

SCREW,#8 - 32 x 5/16"

- brush retainer

4шт.

12

A49764

TERMINAL CONNECTOR

WIRE - terminal, commutator end

1шт.

13

A49768

KIT

- insulator, terminal, commutator end

1шт.

14

95-81101

WASHER,0.52" ID x 0.88" OD x 0.07" Thk

- flat, 33/64 x 7/8 x 1/16 inch

1шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

16

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

1шт.

17

A47890

NUT

NUT - flange type, special, 1/2 inch NC, terminal stud

1шт.

18

238-5158

O-RING,0.103" Thk x 4.737" ID, -158, Cl 5, 75 Duro

Field frame to commutator end -158, 70 Duro, 4.737" ID x .103" Thk

1шт.

Part of Bushing Kit, P/N A187514

1шт.

19

A49753

PIN, SPLIT (COTTER)

PIN - roll, end cover retaining

2шт.

20

A47894

SCREW,#8 - 32 x 5/16"

- field coil lead to brush retainer

4шт.

21

A49770

ARMATURE

- starter

1шт.

22

A49776

COIL ASSY.

COIL - field

1шт.

23

R15115

SHOE

- pole

4шт.

24

188-100

SCREW,Cross Flat Hd, 3/8"-24 x 5/8"

- machine, flat Phillips, 3/8 NF x 21/32 inch

8шт.

25

A49767

RUBBER INSULATOR

INSULATOR - field coil terminal

1шт.

26

A41977

RUBBER INSULATOR

INSULATOR - field coil end

2шт.

27

A48316

ELECTRICAL WIRE

WIRE - field coil, Serial Range: terminal-solenoid

1шт.

28

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

29

129-667

NUT,#10-32, LH

1шт.

30

A49501

RUBBER INSULATOR

INSULATOR - inner, field terminal

1шт.

31

A49500

RUBBER INSULATOR

INSULATOR - outer, field terminal

1шт.

32

A49779

TERMINAL CONNECTOR

CONNECTOR - field, Serial Range: terminal-solenoid

1шт.

33

A42100

WASHER

- flat, special, field terminal

1шт.

34

A49751

BOLT,Hex, 1/4" - 20 x 9/16"

- field terminal connector

1шт.

35

A47890

NUT

NUT - flange type, special, 1/2 inch NC, solenoid switch, Serial Range: terminal-connector

1шт.

36

NSS

NOT SOLD SEPARAT

FRAME - field, order A187568 starter assembly

1шт.

37

A40892

WASHER

- thrust, armature

1шт.

Part of Bushing Kit, P/N A187514

1шт.

A187513

KIT

- brush, starter, includes all items above marked with a bullet on this Figure

1шт.

A187514

KIT

- bushing, includes all items marked with an asterisk on this Figure and Figure 4-6

1шт.

A187568

STARTING MOTOR

STARTER ASSEMBLY - service replacement, 24 volt Delco-Remy No. 1990453

1шт.

A49772

HOUSING

- shift lever, Includes: Ref. 38 - 45

1шт.

38

NSS

NOT SOLD SEPARAT

HOUSING - shift lever

1шт.

39

238-5243

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

- 4-1/4 ID x 1/8 inch wide, lever housing to field frame

1шт.

Part of Bushing Kit, P/N A187514

1шт.

40

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

Lever housing to solenoid -228, 70 Duro, 2.234" ID x .139" Thk

1шт.

Part of Bushing Kit, P/N A187514

1шт.

41

R21582

OIL SEAL

- oil, shift lever housing

1шт.

Part of Bushing Kit, P/N A187514

1шт.

42

A49765

BUSHING

- armature, starter drive

1шт.

Part of Bushing Kit, P/N A187514

1шт.

43

A185121

WASHER

- shift lever housing

1шт.

Part of Bushing Kit, P/N A187514

1шт.

44

A49567

WICK

- oil, armature bushing, lever housing

1шт.

Part of Bushing Kit, P/N A187514

1шт.

45

A49573

PLUG

- oil wick, lever housing

1шт.

Part of Bushing Kit, P/N A187514

1шт.

46

414-416

BOLT,Hex, 1/4" - 28 x 1", Gr 5

- hex, 1/4 NF x 1 inch, plated, lever housing

5шт.

47

A47523

DRIVE

- starter

1шт.

A49773

HOUSING

- drive end, Includes: Ref. 48 - 52

1шт.

48

NSS

NOT SOLD SEPARAT

HOUSING - drive end, order A49773 housing assembly

1шт.

49

A47257

BUSHING

- armature, drive end housing

1шт.

Part of Bushing Kit, P/N A187514

1шт.

50

A43854

O-RING,3.237" ID x 0.106" THK

- housing, to shift lever housing

1шт.

Part of Bushing Kit, P/N A187514

1шт.

51

A47888

WICK

- oil, drive end housing

1шт.

Part of Bushing Kit, P/N A187514

1шт.

52

A47989

SPRING

PLUG - oil wick, drive end housing

1шт.

Part of Bushing Kit, P/N A187514

1шт.

53

D32489

HEX SOC SCREW,5/16" - 18 x 0.86"

SCREW - drive end housing

6шт.

54

A42199

PIN

SHAFT - shift lever

1шт.

55

A47259

O-RING,0.244" ID x 0.391" OD

- shaft, 3/8 inch O.D., inner

1шт.

56

100-1137

SNAP RING,#37, Ext

Ring, Snap, , shift lever shaft #37, Ext

1шт.

57

A47258

O-RING,0.369" ID x 0.515" OD

- shaft, 1/4 ID x 1/16 inch wide, outer

1шт.

58

A49775

LEVER

- shift

1шт.

59

R21587

PLUG

- inspection, shift lever housing

1шт.

60

A41924

GASKET

- plug

1шт.

Part of Bushing Kit, P/N A187514

1шт.

61

131-489

LOCK NUT,5/16"-24, G8

NUT - hex, self-locking, 5/16 inch NF, plated

1шт.

Part of Bushing Kit, P/N A187514

1шт.

62

100-1137

SNAP RING,#37, Ext

Ring, Snap, , solenoid plunger #37, Ext

1шт.

63

A43419

SEAT

- spring, outer

1шт.

64

A41242

SPRING

- plunger return

1шт.

65

A43380

BACK-UP RING

SEAT - plunger spring, inner

1шт.

66

A49589

BOOT

- plunger

1шт.

67

A41922

WASHER

- plunger seat

1шт.

68

A49757

PLUNGER

- solenoid

1шт.

69

A49587

CAPTIVE WASHER SCREW,Hex, 1/4" - 20 x 0.50"

SCREW - special, solenoid retaining

3шт.

70

A49774

SWITCH

SOLENOID ASSEMBLY - starter, parts list Figure 4-12

1шт.

A187515

KIT

- shift lever, starter, includes all items marked with a bullet on this Figure

1шт.

A187514

KIT

- bushing, includes Refs. 3 - 7, 18, 37, 39 - 45, 49 - 52, 60 & 61 and Figure 4-4

1шт.
