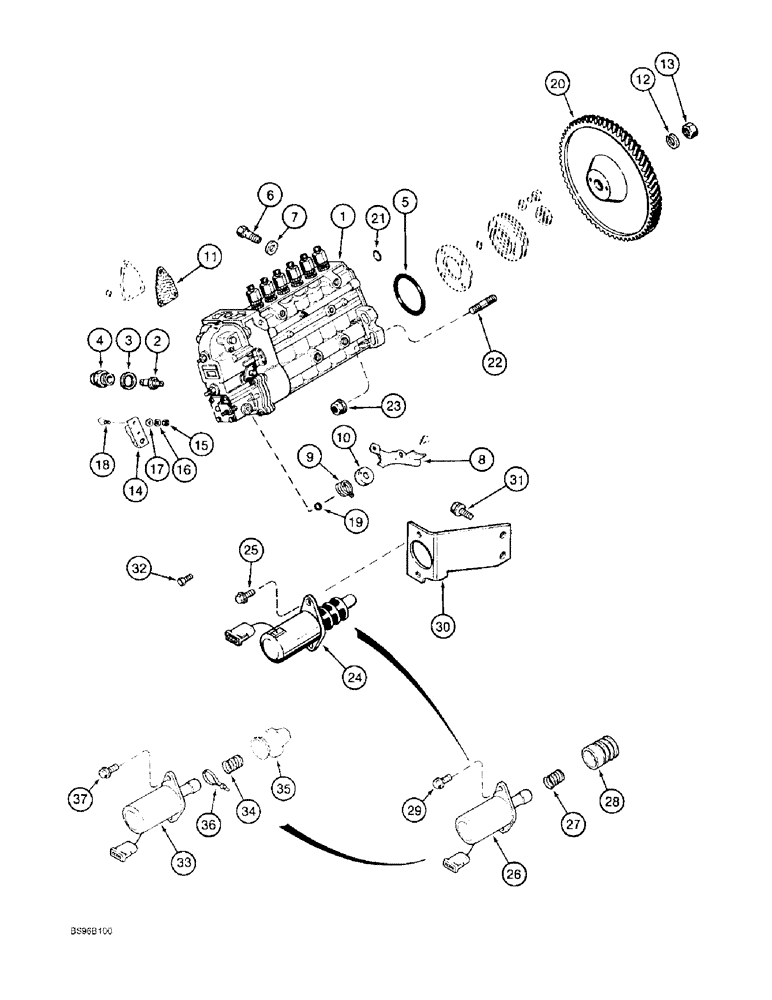

Запчасти Case 1150E (3-24) - FUEL INJECTION PUMP AND DRIVE, 6-830 ENGINE, 6T-830 ENGINE PRIOR TO ENG SN 44866361 (03) - FUEL SYSTEM

JR915964

REMAN-INJECTION PUMP

PUMP ASSEMBLY - injection, remanufactured, North America only, component parts shown on this Figure do not apply to the remanufactured assembly

1шт.

JC913339

CORE

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

1

J915964

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection, new, no longer available, for service order JR915964 pump assembly, Includes: Ref. 2 - 19

1шт.

2

A77720

PIN

- timing

1шт.

3

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

Replaces 933222R1 washer M18 x 24 x 1.5

1шт.

4

J912888

PLUG

- timing

1шт.

5

A41856

O-RING,3mm Thk x 75mm ID

- sealing, replaces J910501 O-ring

1шт.

6

J912886

VALVE

- overflow

1шт.

7

933697R1

SEALING RING,M10 x 13.5 x 1

WASHER - valve sealing

1шт.

8

J910979

LEVER

- pump shutoff, replaces J914094 lever

1шт.

9

J912890

SPRING

- lever shutoff

1шт.

10

691292C1

RETAINER

HOUSING - spring return

1шт.

11

A71110

GASKET

- mounting, replaces A46322 gasket

1шт.

12

A77775

LOCK WASHER

- lock, replaces J912895 washer

1шт.

13

A41852

LOCK NUT

- hex, self-locking

1шт.

14

1808728C1

LEVER

- throttle control

1шт.

15

829-1306

NUT,M6, Cl 10

- hex, 6 mm - 1.0, class 10

1шт.

16

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

17

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

18

1808822C1

THUMB SCREW,M6 x 26mm

BOLT - throttle lever

1шт.

19

680187C1

O-RING,2.5mm Thk x 9mm ID

- sealing, special

1шт.

20

J912614

GEAR

- fuel pump, repalces J910261 gear

1шт.

21

J916284

O-RING

- sealing, fuel injection pump, replaces J910503 O-ring

1шт.

22

J915036

STUD

- pump mounting, replaces J907978 stud, 55 mm (2-5/32 in)

4шт.

23

J902662

FLANGE NUT

- hex flange, 10 mm

4шт.

24

J914371

SOLENOID

- fuel shutoff, replaces J910261 solenoid, no longer available, order item 33, J921980 solenoid

1шт.

25

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

Replaces J902261 bolt Hex Flg, M6 x 15, 8.8, Full Thd

2шт.

26

J918601

SOLENOID

- fuel shutoff, 24 volt, replaces J914371and J910261 solenoid, no longer available, order item 33, J921980 solenoid, Includes: Ref. 27 & 28

1шт.

27

A77702

SPRING

- return, plunger

1шт.

28

A77681

BOOT

- protective, plunger

1шт.

29

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

2шт.

30

J916142

SUPPORT

BRACKET - solenoid mounting

1шт.

31

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 20 mm, class 10.9

2шт.

32

J910768

BOLT

- hex, special

1шт.

33

J921980

SOLENOID

SOLENOID - fuel shutoff, 24 volt, Includes: Ref. 34 - 36

1шт.

34

J921760

SPRING

- return

1шт.

35

J924912

BOOT

- protective

1шт.

36

473321C1

CABLE TIE,8" OAL x 0.098" W

STRAP, CABLE, .098" x 8"

1шт.

37

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

2шт.
