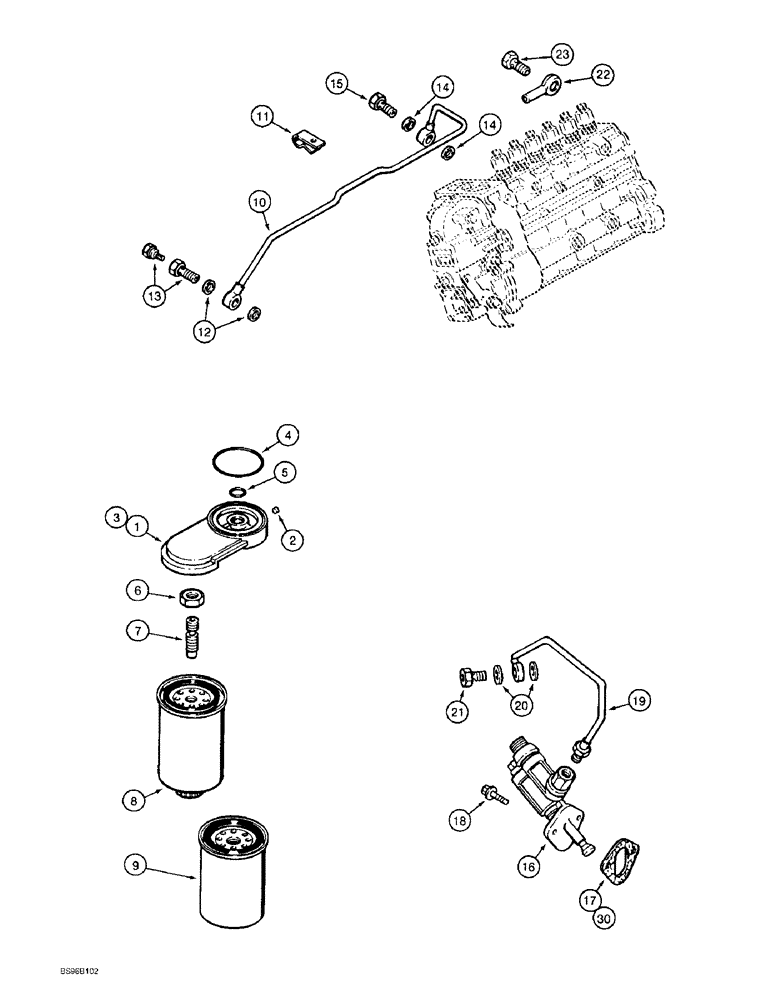

Запчасти Case 1150E (3-20) - FUEL FILTER AND TRANSFER PUMP, 6-830 ENGINE, 6T-830 ENGINE (03) - FUEL SYSTEM

1

J904362

HEAD

ASSEMBLY - fuel filter, no longer available, for service order J915240 head, Includes: Ref. 2

1шт.

2

A77432

PLUG

- expansion, if used

1шт.

3

J915240

SUPPORT

HEAD - fuel filter, replaces J904362 head

1шт.

4

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

O-RING - sealing, 70 mm ID, replaces J903546 O-ring

1шт.

5

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

O-RING - sealing, 14 mm ID, replaces J903846 O-ring

1шт.

6

J903293

JAM NUT

- hex, special, 16 mm - 2.0

1шт.

7

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

- fuel filter, replaces J903845 adapter

1шт.

A77470

SEPARATOR

KIT - fuel filter, Includes: Ref. 8 & 9

1шт.

8

J925274

FILTER, FUEL

FILTER - fuel, primary, replaces J903410 filter

1шт.

9

J903640

FILTER, FUEL

FILTER - fuel

1шт.

10

J912923

FUEL TUBE,8 mm OD x 509.8 mm L

TUBE - fuel supply, replaces J910512 tube

1шт.

11

J914711

CLIP

CLAMP - P-type, replaces A77436 clamp

1шт.

12

J918191

PACKING RING

WASHER - sealing, special, 12 x 18 x 1 mm, replaces J903037 washer

2шт.

13

J905860

BANJO BOLT

BOLT ASSEMBLY - banjo hex, special

1шт.

14

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER - sealing, special, 14 x 20 x 1 mm, replaces J907542 and J914896 washer

2шт.

15

J907541

BANJO BOLT

BOLT - banjo connector

1шт.

16

J917998

PUMP

- fuel lift and transfer, see item 24 for repair kit, replaces J906795 pump

1шт.

17

J923054

GASKET

- mounting, fuel transfer pump, replaces J904044 and J914304 gasket

1шт.

18

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 20 mm, Replaces J900630 bolt

2шт.

19

J906790

FUEL TUBE,8 mm OD x 306.3 mm L

TUBE - supply

1шт.

20

J918191

PACKING RING

WASHER - sealing, special, 12 x 18 x 1 mm, replaces J903037 washer

2шт.

21

J911446

BANJO BOLT,M12 x 1.5 x 24mm

BOLT, BANJO, M12 x 1.5 x 24

1шт.

22

J911447

CONNECTOR, ELEC

CONNECTOR - banjo, fuel return

1шт.

23

J912886

VALVE

- overflow

1шт.

24

J926764

GASKET KIT

KIT - transfer pump repair, replaces J920544 gasket, not shown, Includes: Ref. 25 - 31

1шт.

25

NSS

NOT SOLD SEPARAT

VALVE - check, not shown

2шт.

26

NSS

NOT SOLD SEPARAT

GASKET - check valve, not shown

2шт.

27

NSS

NOT SOLD SEPARAT

O-RING - seal, not shown

1шт.

28

NSS

NOT SOLD SEPARAT

O-RING - seal, not shown

2шт.

29

NSS

NOT SOLD SEPARAT

O-RING - seal, not shown

1шт.

30

J923054

GASKET

- mounting, fuel transfer pump

1шт.

31

NSS

NOT SOLD SEPARAT

VALVE - check, not shown

1шт.
