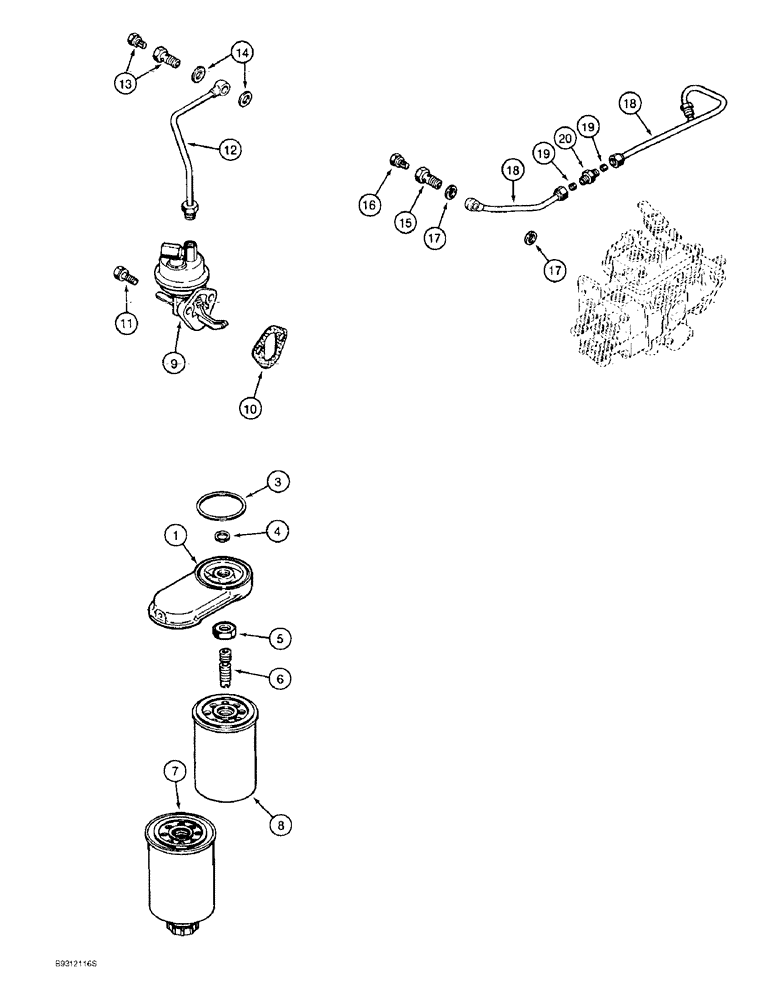

Запчасти Case 1150E (3-18) - FUEL FILTER AND LIFT PUMP, 6T-590 ENGINE (03) - FUEL SYSTEM

1

J915240

SUPPORT

HEAD - fuel filter, replaces J904362 head

1шт.

3

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

O-RING - sealing, 70 mm ID, replaces J903546 O-ring

1шт.

4

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

O-RING - sealing, 14 mm ID, replaces J903846 O-ring

1шт.

5

J903293

JAM NUT

- hex, special, 16 mm - 2.0, special

1шт.

6

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

- fuel filter, replaces J903845 adapter

1шт.

A77470

SEPARATOR

KIT - fuel filter, Includes: Ref. 7 & 8

1шт.

7

J925274

FILTER, FUEL

FILTER - fuel, primary, replaces J903410 filter

1шт.

8

J903640

FILTER, FUEL

FILTER - fuel, secondary

1шт.

9

J928143

PUMP

- lift, fuel, replaces J904374 pump

1шт.

10

J923054

GASKET

- mounting, fuel transfer pump, replaces J904044 and J914304 gasket

1шт.

11

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 20 mm

2шт.

12

J907582

FUEL TUBE,8 mm OD x 250.6 mm L

TUBE - fuel supply

1шт.

13

J903035

BANJO BOLT

BOLT - banjo hex, 12 - 1.5 x 24 mm, special

1шт.

14

J918191

PACKING RING

WASHER - sealing, special, 12 x 18 x 1 mm

2шт.

J905860

BANJO BOLT

BOLT ASSEMBLY - banjo hex, special, Includes: Ref. 15 & 16

1шт.

15

NSS

NOT SOLD SEPARAT

BOLT - connector, banjo hex, special

1шт.

16

NSS

NOT SOLD SEPARAT

SCREW - hex special, vent

1шт.

17

J918191

PACKING RING

WASHER - sealing, special, 12 x 18 x 1 mm, replaces J903037 washer

2шт.

18

J918640

FUEL TUBE

TUBE ASSEMBLY - fuel supply, two-piece, replaces J908986, J917564 and J912783 tubes, Includes: Ref. 19 & 20

1шт.

19

222-103

SLEEVE,5/16" Tube

2шт.

20

222-4

FITTING,9/16"-24, Flex Tube

ADAPTER - compression, 5/16 inch tube OD

1шт.

21

J926764

GASKET KIT

KIT - transfer pump repair, not shown, replaces J920544 kit, Includes: Ref. 22 - 26

1шт.

22

NSS

NOT SOLD SEPARAT

VALVE - check, not shown

2шт.

23

NSS

NOT SOLD SEPARAT

GASKET - check valve, not shown

2шт.

24

NSS

NOT SOLD SEPARAT

O-RING - seal, not shown

1шт.

25

NSS

NOT SOLD SEPARAT

O-RING - seal, not shown

3шт.

26

NSS

NOT SOLD SEPARAT

O-RING - seal, not shown

1шт.
