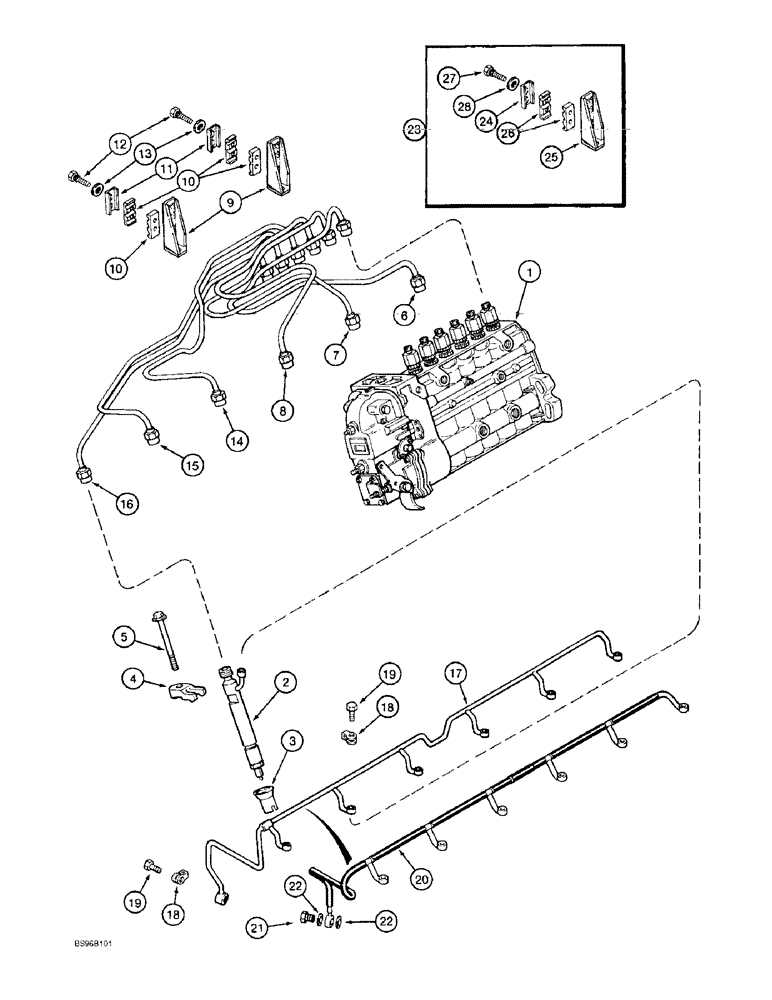

Запчасти Case 1150E (3-16) - FUEL INJECTION SYSTEM, 6-830 ENGINE, 6T-830 ENGINE (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection, for correct pump see Figure 3-24 or 3-25A

1шт.

2

REF

INSTRUCTION

INJECTOR ASSEMBLY - fuel, see Figure 3-30

6шт.

3

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

SLEEVE - injector

6шт.

4

J910279

CLAMP

- fuel injector

6шт.

5

845-8080

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 80 mm, replaces J902112 bolt

6шт.

6

J906783

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

TUBE - fuel injector, No. 1 cylinder

1шт.

7

J906784

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

TUBE - fuel injector, No. 2 cylinder

1шт.

8

J906785

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

TUBE - fuel injector, No. 3 cylinder

1шт.

A77494

BRACKET

ASSEMBLY - fuel tube, no longer available, order components separately, Includes: Ref. 9 - 13

2шт.

9

J917776

BRACE

BRACKET - fuel tube

1шт.

10

J917747

CLAMP

- fuel tube

2шт.

11

J904519

SUPPORT

BRACE - tube retaining

1шт.

12

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, , Replaces J903609 bolt, and J917712 bolt Hex Hd, M5 x .8 x 20, w/LW

2шт.

13

J903723

WASHER

- flat, special, 6 x 10 x 1 mm

2шт.

14

J910521

FUEL TUBE

TUBE - fuel injector, No. 4 cylinder

1шт.

15

J906787

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

TUBE - fuel injector, No. 5 cylinder

1шт.

16

J906788

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

TUBE - fuel injector, No. 6 cylinder

1шт.

17

J915695

MANIFOLD

- fuel drain, replaces J911246 manifold, no longer used, for service order (1) J920595 manifold, item 20, (1) J924726 check valve, item 21, and (2) J918188 washers, item 22

1шт.

18

J903380

SEAL

- connector

6шт.

19

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special M6 x 1 x 14.3

6шт.

20

J920595

TUBE ASSY.

MANIFOLD - fuel drain

1шт.

21

J924726

BANJO BOLT

VALVE - check, replaces J916360 valve

1шт.

22

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

- sealing

2шт.

23

A77593

KIT

- fuel tubes retaining, no longer available, order items 24 - 29

2шт.

A77494

BRACKET

ASSEMBLY - fuel tube, no longer available, order components separately, Includes: Ref. 24 - 28

1шт.

24

J904519

SUPPORT

BRACE - tube retaining

1шт.

25

J917776

BRACE

BRACKET - fuel tube

1шт.

26

J917747

CLAMP

- fuel tube

2шт.

27

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, , Replaces J903609 bolt, and J917712 bolt Hex Hd, M5 x .8 x 20, w/LW

2шт.

28

J903723

WASHER

- flat, special, 6 x 10 x 1 mm

2шт.

29

J907505

BRACE

BRACKET - tube retaining, not shown

1шт.
