Запчасти Case 1150E (3-14) - FUEL INJECTION SYSTEM, 6T-590 ENGINE (03) - FUEL SYSTEM

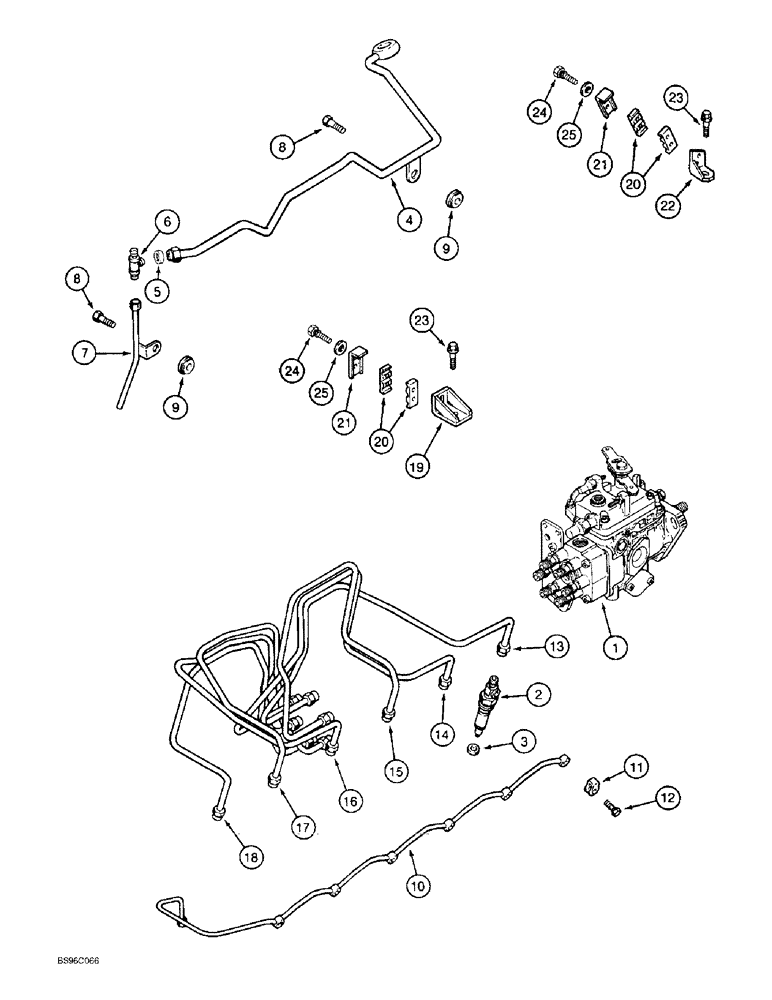

Схема запчастей Case 1150E - (3-14) - FUEL INJECTION SYSTEM, 6T-590 ENGINE (03) - FUEL SYSTEM
6
11
8
7
23
8
10
17
13
23
3
21
5
9
20
19
1
4
25
24
14
22
20
12
25
16
18
21
9
2
15
24

Артикул

Название

Примечание

Количество

1

J916934

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection, new, parts list Figure 3-22

1шт.

2

REF

INSTRUCTION

INJECTOR ASSEMBLY - fuel, see Figure 3-26 or 3-28

6шт.

3

J906659

SEAL

- injector nozzle, 7 mm injector tip, see Figure 3-28, Ref. 12

6шт.

4

J920889

FUEL TUBE

TUBE - fuel drain, replaces J905705 tube

1шт.

5

222-101

SLEEVE,3/16" Tube

- 3/16 inch tube OD

1шт.

6

222-121

TEE,3/16", Flex Tubing

(Remove and discard hex nuts and sleeves before assembly) 3/16", Flex Tubing

1шт.

7

J905692

FUEL TUBE

TUBE - fuel return, tee to fuel tank

2шт.

8

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm, Replaces J900629 bolt

2шт.

9

J900267

SEAL

- cover bolt

2шт.

10

J909696

TUBE

TUBE - manifold, fuel drain

1шт.

11

J903380

SEAL

- connector

6шт.

12

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special M6 x 1 x 14.3

6шт.

13

J909438

FUEL TUBE,2 mm ID x 6.4 mm OD x 746 mm L

TUBE - fuel injector, No. 1 cylinder

1шт.

14

J903486

FUEL TUBE,2 mm ID x 6.4 mm OD x 747.5 mm L

TUBE - fuel injector, No. 2 cylinder

1шт.

15

J903487

FUEL TUBE,2 mm ID x 6.4 mm OD x 741.8 mm L

TUBE - fuel injector, No. 3 cylinder

1шт.

16

J903488

FUEL TUBE,2 mm ID x 6.4 mm OD x 747.3 mm L

TUBE - fuel injector, No. 4 cylinder

1шт.

17

J903489

FUEL TUBE,2 mm ID x 6.4 mm OD x 748.1 mm L

TUBE - fuel injector, No. 5 cylinder

1шт.

18

J903490

FUEL TUBE,2 mm ID x 6.4 mm OD x 745.3 mm L

TUBE - fuel injector, No. 6 cylinder

1шт.

A77494

BRACKET

ASSEMBLY - fuel tube, no longer available, for service order Ref. 19, 20, 21 & 24

1шт.

19

J917777

BRACE

- fuel tube

1шт.

20

J917747

CLAMP

- fuel tube

4шт.

21

J904519

SUPPORT

BRACE - tube retaining

2шт.

A77529

BRACKET

ASSEMBLY - fuel tube, no longer available, for service order Ref. 20, 21, 22, 24, & 25

1шт.

22

J917778

BRACE

- fuel tube

1шт.

23

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Special, Replaces J904341 bolt Hex Flg Hd, M8 x 1.25 x 25

2шт.

24

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, , Replaces J917712 bolt Hex Hd, M5 x .8 x 20, w/LW

2шт.

25

J903723

WASHER

- flat, special, 6 x 10 x 1 mm

2шт.

26

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
