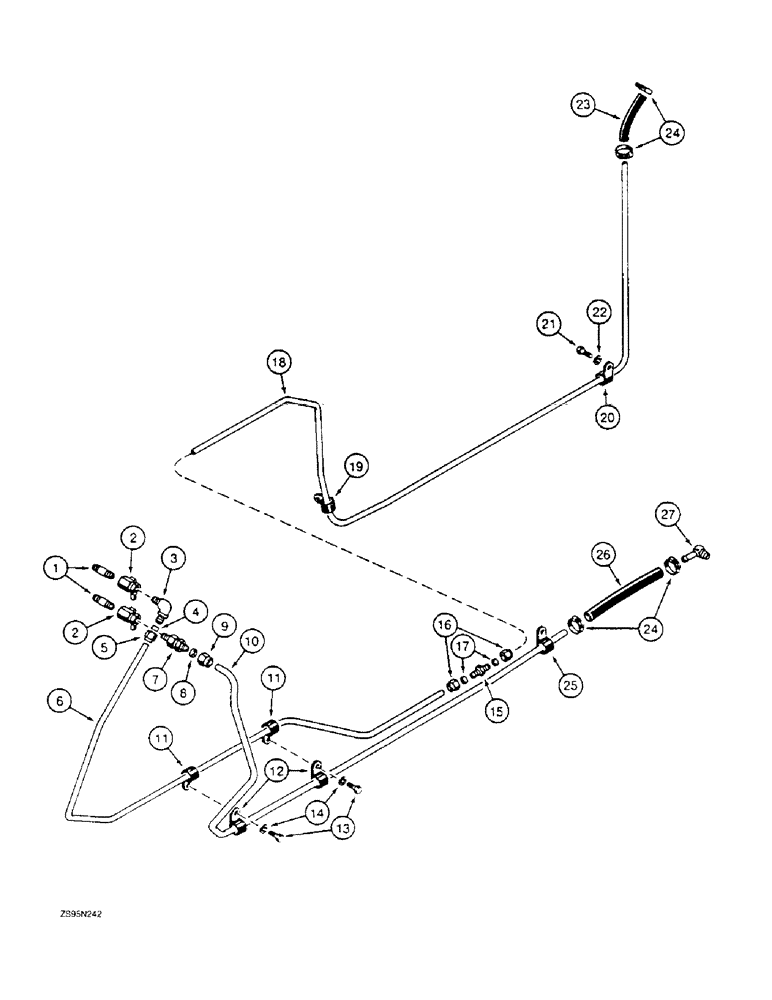

Запчасти Case 1150E (3-08) - FUEL LINES, 6-830 AND 6T-830 ENGINES, ALL DOZERS EXCEPT 62" LONG TRACK & DRAWBAR MODELS (03) - FUEL SYSTEM

1

221-135

PIPE,Nipple, 1/4" NPT x 1 5/8"

NIPPLE - straight, 1/4 PT x 1-5/8 inch

2шт.

2

R47797

VALVE

- shutoff, fuel

2шт.

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

- 90 degree, 5/16 tube OD x 1/4 inch PT, compression fitting, upper, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

4

222-103

SLEEVE,5/16" Tube

Compression fitting 5/16" Tube

1шт.

5

222-113

TUBE NUT,9/16"-24

NUT - hex, 5/16 tube OD x 9/16-24 inch, compression fitting

1шт.

6

R53420

FUEL TUBE,0.312" OD

TUBE - upper, fuel return

1шт.

222-27

HYD CONNECTOR,5/8"-24 x 1/4" NPTF W/Nut

ADAPTER - straight, compression fitting, 3/8 tube OD x 1/4 inch PT, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

8

222-104

SLEEVE,3/8" Tube

- 3/8 inch tube OD, compression fitting

1шт.

9

222-114

NUT,5/8"-24

NUT - hex, 3/8 tube OD x 5/8-24 inch, compression fitting

1шт.

10

R52685

FUEL TUBE,0.375" OD

TUBE - lower, fuel supply

1шт.

11

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

P-type, Upper tube 5/16", Insul, 3/8" Bolt

2шт.

12

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

P-type, Lower tube 3/8", Insul, 5/16" Bolt

2шт.

13

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

2шт.

14

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

222-4

FITTING,9/16"-24, Flex Tube

ADAPTER - straight, compression fitting, 5/16 inch tube OD, Includes: Ref. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

BODY - connector

1шт.

16

222-113

TUBE NUT,9/16"-24

NUT - hex, 5/16 tube OD x 9/16-24 inch, compression fitting

2шт.

17

222-103

SLEEVE,5/16" Tube

Compression fitting 5/16" Tube

2шт.

18

R53421

FUEL TUBE,0.312" OD

TUBE - return, from fuel injection pump

1шт.

19

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

P-type, Return tube, at rear of engine, use engine hardware 5/16", Insul, 3/8" Bolt

1шт.

20

51200191

CLAMP

- P-type, 5/16 inch ID, return tube, at front of engine

1шт.

21

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

1шт.

22

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

23

R42161

FUEL HOSE

HOSE - 7 inch (178 mm) long, from fuel injection pump, cut from S120317X bulk hose, see below

1шт.

24

214-1408

HOSE CLAMP,11.2mm - 19.8mm

CLAMP, HOSE, , Adj. #08, 0.50/0.91 Type F Worm

4шт.

25

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

Fuel supply tube, Double clamp to main frame with rear wiring harness 3/8", Insul, 3/8" Bolt

1шт.

26

R49444

FUEL HOSE,9.53 mm ID x 400.00mm, SAE 30R3

Supply 9.53 mm ID x 400.00mm, SAE 30R3

1шт.

27

217-132

90 ELBOW,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

- 90 degree, 3/8 stem end x 1/4 inch PT, at engine

1шт.

S120317X

HOSE

- bulk, 5/16 (8) x 9/16 (14) x 300 inch (7620 mm) long

1шт.

A21562X

LARGE HOSE,9.65mm ID x 711.2mm L

HOSE - bulk, 3/8 (10) ID x 300 inch (7620 mm) long

1шт.
