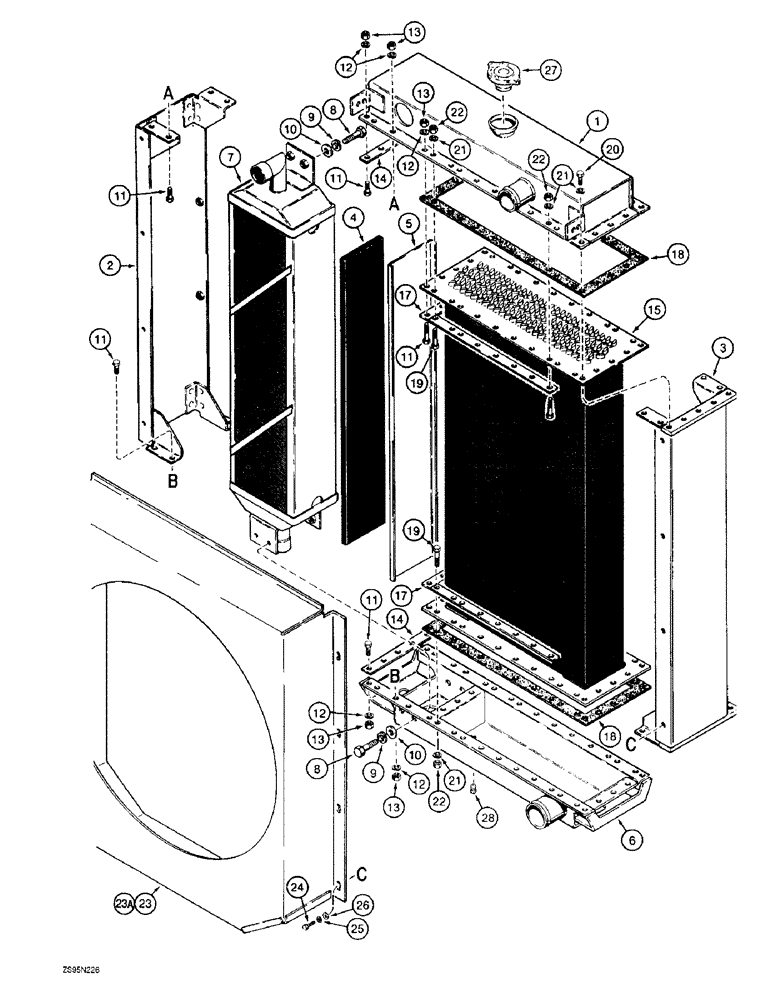

Запчасти Case 1150E (2-126) - RADIATOR ASSEMBLY, MODINE (02) - ENGINE

R52599

RADIATOR

ASSEMBLY - see note below, Modine (Ref. No. R51025), Includes: Ref. 1 - 28

1шт.

When ordering R52599 or 143135A1 radiator assembly, you will receive either a Modine radiator assembly (parts list shown above) or a General Thermodynamics radiator assembly (parts list on Figure 2-124). If you are ordering parts for your radiator, be sure you are ordering from the correct assembly parts list.

1шт.

143135A1

RADIATOR

ASSEMBLY - see note below, Modine, Includes: Ref. 1 - 28

1шт.

When ordering R52599 or 143135A1 radiator assembly, you will receive either a Modine radiator assembly (parts list shown above) or a General Thermodynamics radiator assembly (parts list on Figure 2-124). If you are ordering parts for your radiator, be sure you are ordering from the correct assembly parts list.

1шт.

1

195326A1

RESERVOIR

TANK - top

1шт.

2

N14808

PANEL, SIDE

PANEL - left-hand side, covers oil cooler tank

1шт.

3

N14803

PANEL, SIDE

PANEL - right-hand side, with panel for vibration dampner

1шт.

4

N14811

INSULATOR

- vibration damper

1шт.

5

N14812

LARGE PLATE

PLATE - core reinforcement, between core and oil cooler

1шт.

6

N14801

RESERVOIR

TANK - bottom

1шт.

7

N14807

OIL COOLER

COOLER - oil

1шт.

Catalog shows the bottom pipe pointing straight down from cooler, per print this is actually a 90 degree elbow pointing opposite direction of 90 degree elbow on on top of cooler.

1шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, Oil cooler mounting

8шт.

9

492-11038

LOCK WASHER,3/8"

8шт.

10

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

8шт.

11

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

12шт.

12

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

13

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

12шт.

14

N14804

LARGE PLATE

PLATE - reinforcement, 7-1/2 inch long, oil cooler, upper and lower

2шт.

15

N14802

CORE, RADIATOR

CORE - radiator

1шт.

16

N14805

LARGE PLATE

PLATE - reinforcement, 14-3/16 inch long, core header flange, front and rear

4шт.

17

N14804

LARGE PLATE

PLATE - reinforcement, 7-1/2 inch long, core header flange, inner

2шт.

18

N14806

GASKET

- core, upper and lower

2шт.

19

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

54шт.

20

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

10шт.

21

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

54шт.

22

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

54шт.

23

S300128

DEFLECTOR

SHROUD - radiator, used with R52599 radiator assembly only

1шт.

23a

N14809

DEFLECTOR

SHROUD - radiator, used with 143135A1 radiator assembly only

1шт.

24

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch, shroud mounting

8шт.

25

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

26

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

8шт.

27

A170241

RADIATOR CAP

CAP, RADIATOR, Filler, 15 psi

1шт.

28

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.
