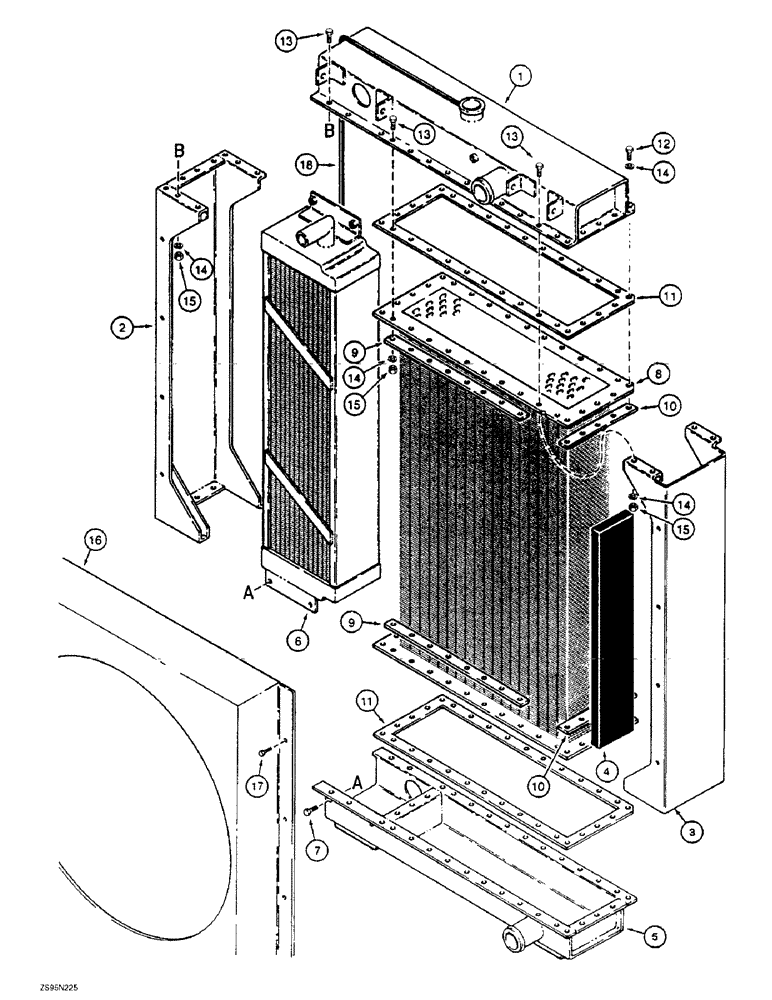

Запчасти Case 1150E (2-124) - RADIATOR ASSEMBLY, GENERAL THERMODYNAMICS (02) - ENGINE

R52599

RADIATOR

ASSEMBLY - see note below, General Thermodynamics (Ref. No. R49419), Includes: Ref. 1 - 18

1шт.

When ordering R52599 radiator assembly, you will receive either a General Thermodynamics radiator assembly (parts list shown above) or a Modine radiator assembly (parts list on Figure 2-126). If you are ordering parts for your radiator, be sure you are ordering from the correct assembly parts list.

1шт.

1

N14002

RESERVOIR

TANK - top

1шт.

2

N14005

PANEL, SIDE

PANEL - left-hand side, covers oil cooler

1шт.

3

N14004

PANEL, SIDE

PANEL - right-hand side, with panel for vibration dampner

1шт.

4

N7887

PADDING

INSULATOR - vibration dampner, single piece as shown not available, replace with three strips of 1968072C1, see below

1шт.

5

N14003

RESERVOIR

TANK - bottom

1шт.

6

N14008

COOLER ASSY.

COOLER - oil

1шт.

7

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex, 1/2 NC x 3/4 inch, oil cooler mounting

4шт.

8

N14006

COOLER ASSY.

CORE - radiator

1шт.

9

N14014

LARGE PLATE

PLATE - reinforcement, core

4шт.

10

N14013

LARGE PLATE

PLATE - reinforcement, core ends, inner

2шт.

11

N14015

GASKET

- core, upper and lower

2шт.

12

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

20шт.

13

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

48шт.

14

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

68шт.

15

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

60шт.

16

N14007

DEFLECTOR

SHROUD - radiator

1шт.

17

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch, Shroud mounting

8шт.

18

NSS

NOT SOLD SEPARAT

TUBE - overflow, see Figure 2-116 or 2-122 for correct overflow tube to recovery bottle

1шт.

1968072C1

SEAL

STRIP - foam, 19-5/16 inch (490 mm) long

3шт.

Use when ordering N7887

1шт.
