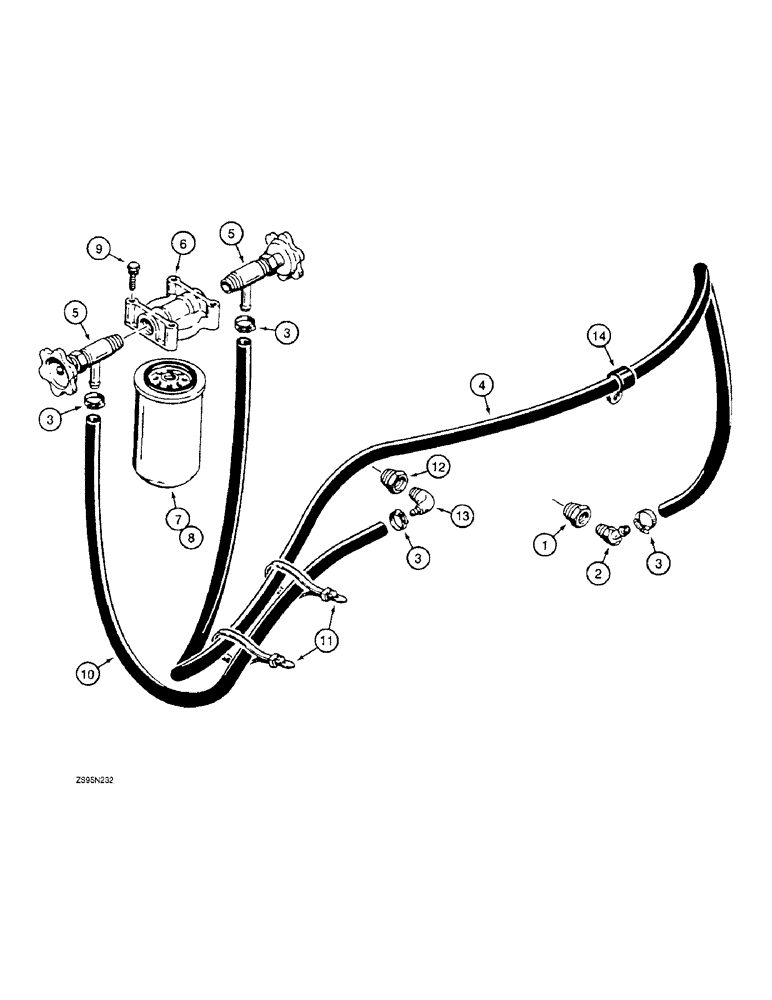

Запчасти Case 1150E (2-120) - COOLANT CONDITIONING SYSTEM, DOZER AND DRAWBAR MODELS, *USED PRIOR TO PIN JAK0008615 (02) - ENGINE

1

217-43

REDUCER,1/2" - 14 NPTF x 1/4" - 18 Fem NPTF

At engine water pump, used only on models without cab heating system 1/2"-14 NPTF x 1/4"-18 Fem NPTF

1шт.

For Ref. 4 hose connection at water pump on models with cab heating system, see Figure 9-104.

1шт.

2

217-142

ELBOW,45 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

- 45 degree, 3/8 stem end x 1/4 inch PT, used only on models without cab heating system

1шт.

For Ref. 4 hose connection at water pump on models with cab heating system, see Figure 9-104.

1шт.

3

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP, HOSE, , Adj. #06, .44/.78 Type F Worm

4шт.

4

R54431

HOSE

- 51-9/16 inch (1310 mm) long, filter to engine water pump

1шт.

5

A154051

COCK, DRAIN

VALVE - shutoff, at conditioning filter

2шт.

6

A152821

HEAD

- water conditioning filter

1шт.

7

A77543

FILTER

- pre-charged, use whenever engine coolant is completely replaced with new coolant

1шт.

8

A77544

FILTER

- water conditioning, maintenance, use for filter change when coolant is not being completely replaced

1шт.

9

A77546

BOLT,Hex, 3/8" - 16 x 1.25"

- hex washer, special, 3/8 NC x 1-1/4 inch, filter head mounting

4шт.

10

R54134

HOSE,9.50 mm ID x 660.00 mm

Engine to Filter, Cut from R54431 Hose, Ref. 4 9.50 mm ID x 660.00 mm

1шт.

11

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

12

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

- pipe, 1/2 male x 3/8 inch female

1шт.

13

A77548

ELBOW

- 90 degree, barb ends

1шт.

14

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type, Hose, Use circuit breaker mounting bracket hardware 3/4", Insul, 3/8" Bolt

1шт.
