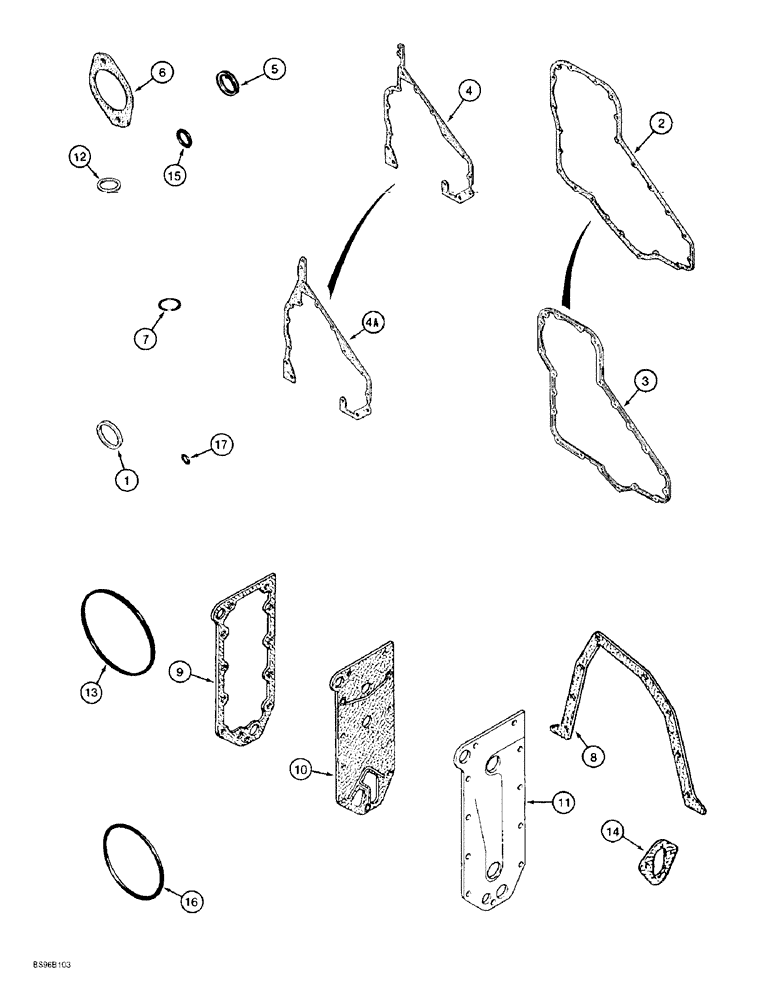

Запчасти Case 1150E (2-108) - GASKET KITS, 6-830 ENGINE, 6T-830 ENGINE, CYLINDER BLOCK (02) - ENGINE

A77718

GASKET KIT

KIT - gasket, cylinder block, prior to Engine SN 44500128, replaces A77677 and A77581 kit, Includes: Ref. 1 - 17

1шт.

For complete engine overhaul order (1) each of valve grind kit, Figure 2-106, cylinder block kit, above, oil pan kit, Figure 2-30, front and rear crankshaft seal kit, Figure 2-88 and required cylinder head gasket, Figure 2-34.

1шт.

A77726

KIT

- gasket, cylinder block, Engine SN 44500128 and after, and prior to Engine SN 45075642, Includes: Ref. 1 - 17

1шт.

For complete engine overhaul order (1) each of valve grind kit, Figure 2-106, cylinder block kit, above, oil pan kit, Figure 2-30, front and rear crankshaft seal kit, Figure 2-88 and required cylinder head gasket, Figure 2-34.

1шт.

A77839

KIT

- gasket, cylinder block, Engine SN 45075642 and after, Includes: Ref. 1 - 17

1шт.

For complete engine overhaul order (1) each of valve grind kit, Figure 2-106, cylinder block kit, above, oil pan kit, Figure 2-30, front and rear crankshaft seal kit, Figure 2-88 and required cylinder head gasket, Figure 2-34.

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- front access cover

1шт.

2

J917780

GASKET,0.98mm Thk

GASKET - front gear cover, used in A77726 kit only

1шт.

3

J917779

GASKET,0.98mm Thk

- front gear cover, replaces J913429 and J905471

1шт.

4

J281721

GASKET

- housing, gear, replaces J907623 and J914303 gasket, used in A77726 kit only

1шт.

4a

J926757

GASKET

- housing, gear, used in A77839 kit only

1шт.

5

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING - quad, timing pin housing

1шт.

6

J919601

GASKET

- access cover plate

1шт.

7

J902089

SEAL,0.139" Thk x 3.859" ID, -241

O-RING - sealing

1шт.

8

J914301

GASKET

- rear cover retainer, replaces J901734

1шт.

9

J918174

GASKET,0.71mm Thk

- cooler core, replaces J908332 and J914307

1шт.

10

J914308

GASKET

- filter head, replaces J908333 gasket, prior to Engine SN 44500128

1шт.

11

J929011

GASKET,1.19mm Thk

- cooler cover, replaces J918332 gasket, Engine SN 44500128 and after

1шт.

12

J901798

SEALING WASHER

WASHER - sealing, regulator plug, oil filter

1шт.

13

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING - flywheel housing to block, replaces A157927

1шт.

14

J923054

GASKET

- mounting, fuel transfer pump, replaces J904044 and J914304

1шт.

15

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

(Replaces 253070R1) -212, 70 Duro, .859" ID x .139" Thk

1шт.

16

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

O-RING - sleeve, piston

6шт.

17

J913994

O-RING

- sealing

1шт.
