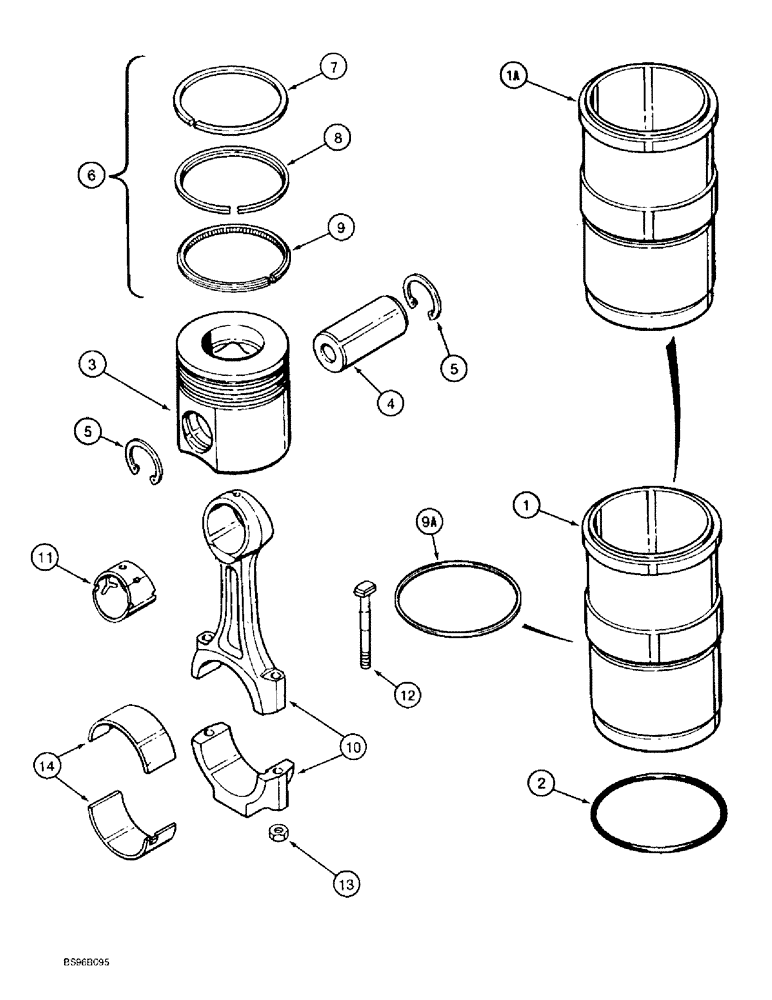

Запчасти Case 1150E (2-101A) - PISTONS AND CONNECTING RODS, 6-830 ENGINE, PISTONS ENGINE ENG SN 44706126 & AFT, CONNECTING RODS (02) - ENGINE

A77800

PACKAGE, REPAIR

KIT - piston and sleeve, engine, no longer available, order A77803 piston kit, (1) J919937 piston sleeve, and (1) J907177 sleeve O-ring

6шт.

1a

J919937

SLEEVE CYLINDER,114.02mm ID x 130.66mm OD x 237.12mm L

SLEEVE - piston

1шт.

Use when ordering A77610, Piston Sleeve Kit

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

O-RING - sleeve

1шт.

Use when ordering A77610, Piston Sleeve Kit

1шт.

A77803

PISTON ASSY.

KIT - piston and sleeve, engine, replaces A77561 piston kit

1шт.

3

NSS

NOT SOLD SEPARAT

PISTON - cylinder

1шт.

4

J901597

PIN

- piston

1шт.

5

100-21175

SNAP RING,1.75", Int, #175

Ring, Snap, (Replaces J901922, J901996 and G109044) 1.75", Int, #175

2шт.

6

A77562

PISTON RING SET

KIT - piston ring, use on engines prior to Engine Serial Number 44761679

1шт.

6

A77802

PISTON RING SET

KIT - piston ring, use on engines with Engine Serial Number 44761679 and after

1шт.

7

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

8

NSS

NOT SOLD SEPARAT

RING - compression, middle

1шт.

9

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

9a

J924445

SHIM,126.8mm ID x 130.5mm OD x 0.25mm Thk

Cylinder sleeve (.010"), Replaces J914653 0.254mm Thk

1шт.

Use Ref. 9A as required for cylinder sleeve protrusion adjustment on remanufactured blocks only

1шт.

9a

J924446

SHIM,126.8mm ID x 130.5mm OD x 0.38mm Thk

Cylinder sleeve (.015"), Replaces J914654 0.381mm Thk

1шт.

Use Ref. 9A as required for cylinder sleeve protrusion adjustment on remanufactured blocks only

1шт.

9a

J914655

SHIM,.020" Thk

Cylinder sleeve (0.508 mm) .020" Thk

1шт.

Use Ref. 9A as required for cylinder sleeve protrusion adjustment on remanufactured blocks only

1шт.

9a

J924448

SHIM,0.762mm Thk

Cylinder sleeve (.030") 0.762mm Thk

1шт.

Use Ref. 9A as required for cylinder sleeve protrusion adjustment on remanufactured blocks only

1шт.

9a

J924449

SHIM,1.000mm Thk

Cylinder sleeve (.040") 1.000mm Thk

1шт.

Use Ref. 9A as required for cylinder sleeve protrusion adjustment on remanufactured blocks only

1шт.

A77610

SLEEVE CYLINDER

KIT - piston sleeve, no longer available, order one each of Refs. 1A and 2 above

6шт.

JR901383

REMAN-CONNECTING ROD

ROD ASSEMBLY - connecting, remanufactured, North America only, component parts shown on this Figure do not apply to the remanufactured assembly

6шт.

JC901383

CORE-ROD CONNECTING

RETURN NUMBER - use this part number to return connecting rod for credit when using a remanufactured assembly

1шт.

J901383

CONNECTING ROD

ROD ASSEMBLY - connecting

6шт.

84487529R

REMAN-CONNECTING ROD

1150E, 1155E PISTONS AND CONNECTING RODS, 6-830 ENGINE, PISTONS ENGINE ENG SN 44706126 & AFT, CONNECTING RODS, Reman for New P/N J901383

6шт.

84487529C

CORE-ROD CONNECTING

Return Number

1шт.

10

NSS

NOT SOLD SEPARAT

ROD - connecting, two piece

1шт.

11

J913990

BUSHING,45.03mm ID x 49mm OD x 45mm L

- connecting rod

1шт.

12

J928870

ROD

- special, rod, bearing cap, replaces J901380, J920799 and J924351

2шт.

13

J901381

SPECIAL NUT

- hex, rod bolt

2шт.

14

A77563

BEARING SET

KIT - bearing, upper and lower, standard

6шт.

14

A77564

BEARING SET

KIT - bearing, upper and lower, 0.25 mm undersize

6шт.

14

A77565

BEARING SET

KIT - bearing, upper and lower, 0.50 mm undersize

6шт.

14

A77566

BEARING SET

KIT - bearing, upper and lower, 0.75 mm undersize

6шт.

14

A77567

BEARING SET

KIT - bearing, upper and lower, 1.00 mm undersize

6шт.
