(2-100) - PISTONS AND CONNECTING RODS, 6-830 ENGINE, PISTONS PRIOR TO ENG SN 44706126

Запчасти Case 1150E (2-100) - PISTONS AND CONNECTING RODS, 6-830 ENGINE, PISTONS PRIOR TO ENG SN 44706126 (02) - ENGINE

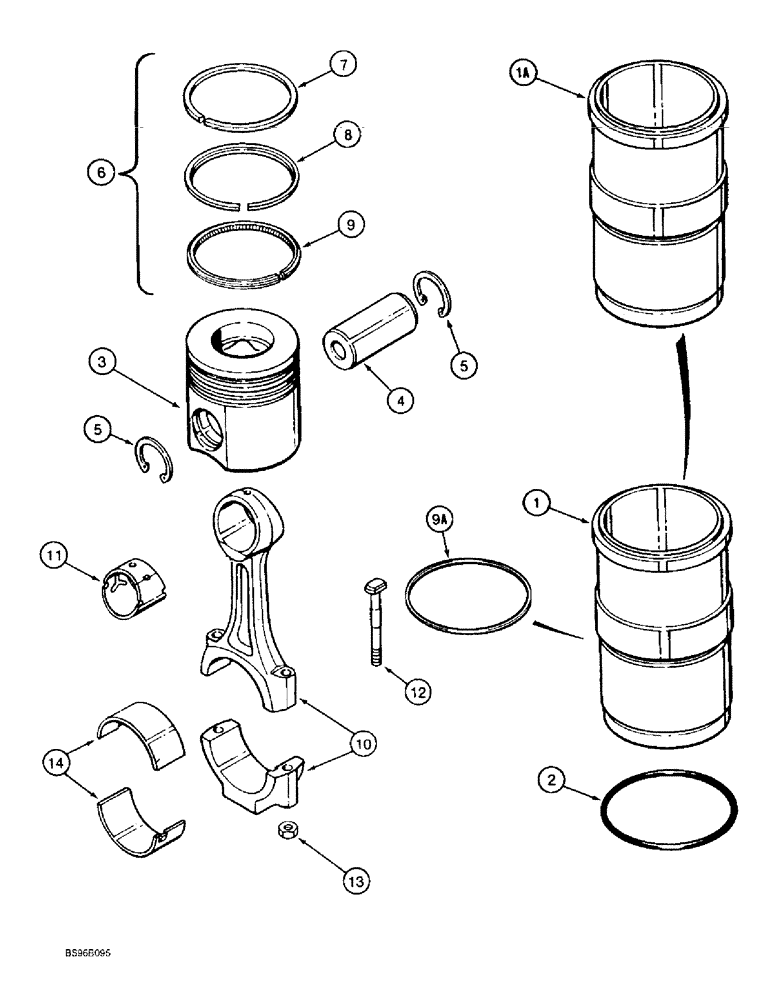

Схема запчастей Case 1150E - (2-100) - PISTONS AND CONNECTING RODS, 6-830 ENGINE, PISTONS PRIOR TO ENG SN 44706126 (02) - ENGINE
9
10
1a
6
1
5
2
13
14
9a
7
5
8
11
3
4
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A77568

PISTON

KIT - piston and sleeve, engine, no longer available, order A77803 piston kit, (1) J907792 piston sleeve, and (1) J907177 sleeve O-ring

6шт.

1

J907792

SLEEVE CYLINDER

SLEEVE - piston

1шт.

Use when ordering A77610, Piston Sleeve Kit

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

O-RING - sleeve

1шт.

Use when ordering A77610, Piston Sleeve Kit

1шт.

A77803

PISTON ASSY.

KIT - piston and sleeve, engine, replaces A77561

1шт.

Kit contains only the piston , piston rings, piston pin and circlips, no sleeve kit.

1шт.

3

NSS

NOT SOLD SEPARAT

PISTON - cylinder

1шт.

4

J901597

PIN

- piston

1шт.

5

100-21175

SNAP RING,1.75", Int, #175

Ring, Snap, (Replaces J901922, J901996 and G109044) 1.75", Int, #175

2шт.

6

A77562

PISTON RING SET

KIT - piston ring

1шт.

7

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

8

NSS

NOT SOLD SEPARAT

RING - compression, middle

1шт.

9

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

9a

J924445

SHIM,126.8mm ID x 130.5mm OD x 0.25mm Thk

Cylinder sleeve (.010"), Replaces J914653 0.254mm Thk

1шт.

Use Ref. 9A as required for cylinder sleeve protrusion adjustment on remanufactured blocks only

1шт.

9a

J924446

SHIM,126.8mm ID x 130.5mm OD x 0.38mm Thk

Cylinder sleeve (.015"), Replaces J914654 0.381mm Thk

1шт.

Use Ref. 9A as required for cylinder sleeve protrusion adjustment on remanufactured blocks only

1шт.

9a

J914655

SHIM,.020" Thk

Cylinder sleeve (0.508 mm) .020" Thk

1шт.

Use Ref. 9A as required for cylinder sleeve protrusion adjustment on remanufactured blocks only

1шт.

9a

J924448

SHIM,0.762mm Thk

Cylinder sleeve (.030") 0.762mm Thk

1шт.

Use Ref. 9A as required for cylinder sleeve protrusion adjustment on remanufactured blocks only

1шт.

9a

J924449

SHIM,1.000mm Thk

Cylinder sleeve (.040") 1.000mm Thk

1шт.

Use Ref. 9A as required for cylinder sleeve protrusion adjustment on remanufactured blocks only

1шт.

A77610

SLEEVE CYLINDER

KIT - piston sleeve, no longer available, order one each of Refs. 1 and 2 above

6шт.
