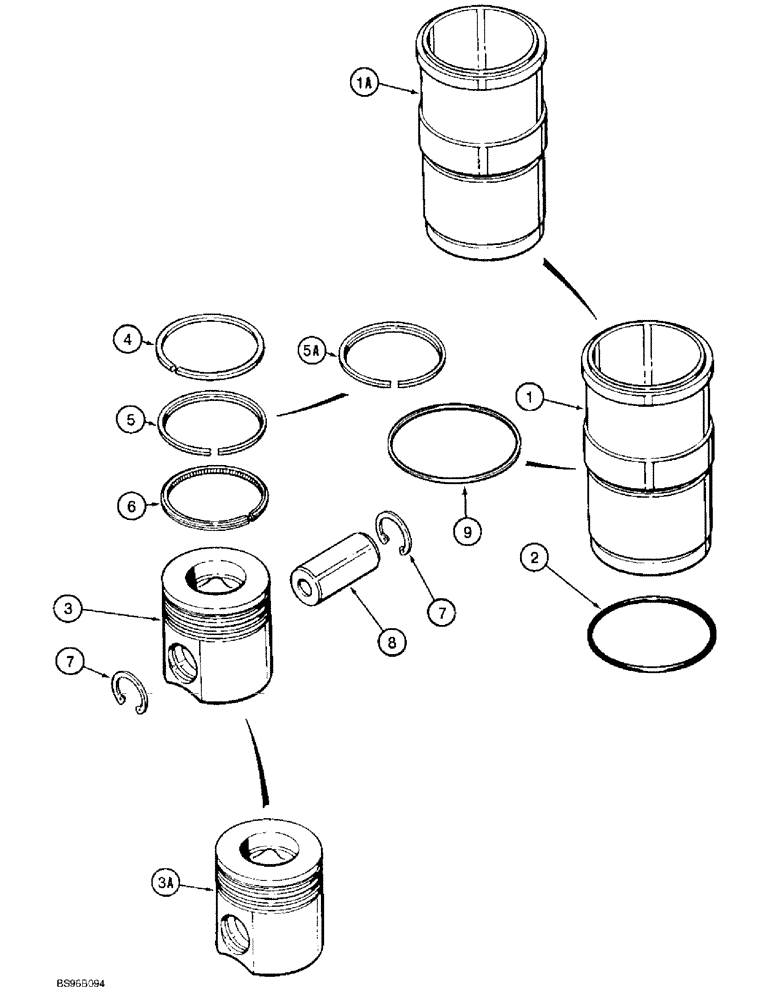

Запчасти Case 1150E (2-096) - PISTONS, 6T-830 ENGINE, PISTONS PRIOR TO ENGINE SN. 44536857, PISTONS ENG SN 44536857 THRU 44706125 (02) - ENGINE

A77598

CYLINDER

KIT - piston and sleeve, no longer available, order A77772, Includes: Ref. 1 - 8

6шт.

1

J907792

SLEEVE CYLINDER

SLEEVE - piston

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

O-RING - sleeve

1шт.

A77599

KIT

- piston, standard, no longer available, order A77771

1шт.

3

NSS

NOT SOLD SEPARAT

PISTON - cylinder, stamped 8749

1шт.

A77562

PISTON RING SET

KIT - piston ring, use with piston stamped 8749, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

5

NSS

NOT SOLD SEPARAT

RING - rectangular, compression, middle

1шт.

6

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

7

100-21175

SNAP RING,1.75", Int, #175

Ring, Snap, (Replaces J901922, J901996 and G109044) 1.75", Int, #175

2шт.

8

J901597

PIN

- piston

1шт.

9

J924445

SHIM,126.8mm ID x 130.5mm OD x 0.25mm Thk

Cylinder sleeve (.010"), Replaces J914653 0.254mm Thk

1шт.

Use Ref. 9 as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

9

J924446

SHIM,126.8mm ID x 130.5mm OD x 0.38mm Thk

Cylinder sleeve (.015"), Replaces J914654 0.381mm Thk

1шт.

Use Ref. 9 as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

9

J914655

SHIM,.020" Thk

Cylinder sleeve (0.508 mm) .020" Thk

1шт.

Use Ref. 9 as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

9

J924448

SHIM,0.762mm Thk

Cylinder sleeve (.030") 0.762mm Thk

1шт.

Use Ref. 9 as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

9

J924449

SHIM,1.000mm Thk

Cylinder sleeve (.040") 1.000mm Thk

1шт.

Use Ref. 9 as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

A77747

PACKAGE

KIT - piston and sleeve, includes piston stamped 9928, no longer available, order A77772 piston kit

6шт.

A77772

PACKAGE, REPAIR

KIT - piston and sleeve, includes piston stamped 9564 or 3163

6шт.

1

J907792

SLEEVE CYLINDER

SLEEVE - piston

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

O-RING - sleeve

1шт.

A77745

PACKAGE

KIT - piston, standard, includes piston stamped 9928, no longer available, order A77771

1шт.

A77771

PISTON ASSY.

KIT - piston, engine, standard, includes piston stamped 9564 or 3163

1шт.

3a

NSS

NOT SOLD SEPARAT

PISTON - cylinder, stamped 9928

1шт.

3a

NSS

NOT SOLD SEPARAT

PISTON - cylinder, stamped 9564 or 3163

1шт.

A77802

PISTON RING SET

KIT - piston ring, replaces A77744 kit, used with piston stamped 9928, 9564, or 3163

1шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

5a

NSS

NOT SOLD SEPARAT

RING - keystone with reverse twist, compression, middle

1шт.

6

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

7

100-21175

SNAP RING,1.75", Int, #175

Ring, Snap, (Replaces J901922, J901996 and G109044) 1.75", Int, #175

2шт.

8

J901597

PIN

- piston

1шт.

9

J924445

SHIM,126.8mm ID x 130.5mm OD x 0.25mm Thk

Cylinder sleeve (.010"), Replaces J914653 0.254mm Thk

1шт.

Use Ref. 9 as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

9

J924446

SHIM,126.8mm ID x 130.5mm OD x 0.38mm Thk

Cylinder sleeve (.015"), Replaces J914654 0.381mm Thk

1шт.

Use Ref. 9 as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

9

J914655

SHIM,.020" Thk

Cylinder sleeve (0.508 mm) .020" Thk

1шт.

Use Ref. 9 as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

9

J924448

SHIM,0.762mm Thk

Cylinder sleeve (.030") 0.762mm Thk

1шт.

Use Ref. 9 as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.

9

J924449

SHIM,1.000mm Thk

Cylinder sleeve (.040") 1.000mm Thk

1шт.

Use Ref. 9 as required for cylinder sleeve protrusion adjustment on remanufactured blocks only.

1шт.
