Запчасти Case 1150E (2-064) - CYLINDER BLOCK, 6T-830 ENGINE, TWELVE PISTON COOLING NOZZLES ENG SN 44487830 THRU 44706125 (02) - ENGINE

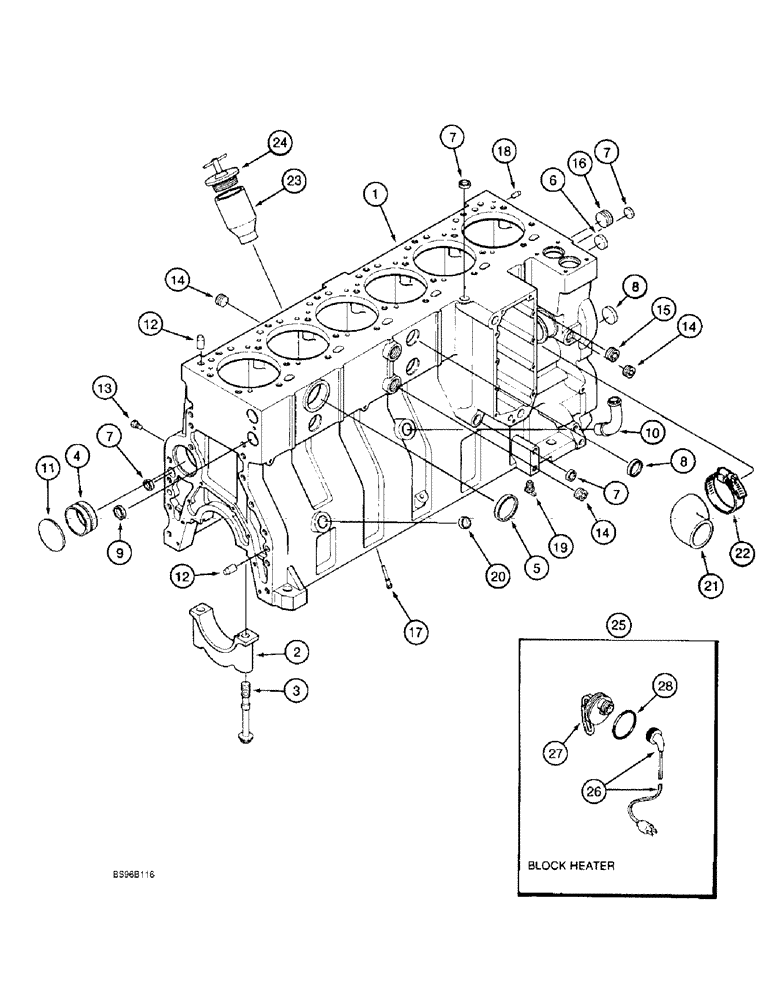

Схема запчастей Case 1150E - (2-064) - CYLINDER BLOCK, 6T-830 ENGINE, TWELVE PISTON COOLING NOZZLES ENG SN 44487830 THRU 44706125 (02) - ENGINE
27
13
7
8
7
2
7
14
12
8
28
20
5
23
14
25
1
3
7
19
12
26
10
9
18
17
11
21
24
15
14
6
16
4
22

Артикул

Название

Примечание

Количество

1989001C1

ENGINE ASSEMBLY

ENGINE ASSY ENGINE ASSEMBLY - complete, 6T-830, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe, uses oil filter and cooler shown on Figure 2-24, order 1989098C3 basic engine

1шт.

1989001C2

ENGINE ASSEMBLY

ENGINE ASSY ENGINE ASSEMBLY - complete, 6T-830, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe, uses oil filter and cooler shown on Figure 2-26, order 1989098C3 basic engine

1шт.

AR174398

REMAN-BASIC ENGINE

Remanufactured Basic Engine Assembly, assembly includes short block assembly, cylinder head, valve cover, front cover, oil pan, water pump, thermostat and gasket kit to transfer trim parts

1шт.

AC174398

CORE-BASIC ENGINE

Return Number. KNOWN POTENTIAL CORE VARIATIONS, REFER TO CORE CRITERIA FOR PROPER CORE IDENTIFICATION

1шт.

A174358

BASIC ENGINE

ENGINE ASSEMBLY - basic

1шт.

includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front crank pulley, turbocharger and belt tensioner, Engine SN 44487830 through 44536857, uses Ref. 1, sleeve and piston stamped 8749 shown on Figure 2-96, order 1989098C3 basic engine

1шт.

1989098C3

BASIC ENGINE

1шт.

ENGINE ASSEMBLY - basic, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front crank pulley and belt tensioner, Engine Serial Number 44536857 through 44706125, uses item 1, sleeve and pistons stamped 9928, 9564, or 3163, shown on Figure 2-96, replaces 1989098C1 and 1989098C2 basic engine

1шт.

J921057

CRANKCASE

CRANKCASE

1шт.

Order A77716 hardware kit, Refs. 9-19, when ordering J921057 block assembly.

1шт.

JR921057

SKELETON ENGINE

Block Assembly, Short, Remanufactured, Component Parts Shown On This Figure Do Not Apply To The Remanufactured Assembly, No Longer Available, Order JR921843 Remanufactured Short Block Assembly On Figure 2-68

1шт.

JC921057

CORE-SHORT ENGINE

Return Part Number, Use This Part Number To Return Short Block Core For Credit When Using a Remanufactured Assembly

1шт.

1

J920036

CYLINDER BLOCK

BLOCK ASSEMBLY - cylinder, stripped, new, Includes: Ref. 2 - 8

1шт.

Order A77716 Hardware Kit when ordering J920036 Stripped Block.

1шт.

1

JR920036

CRANKCASE

Block Assembly, Stripped, Remanufactured, Component Parts Shown On This Figure Do Not Apply To The Remanufactured Assembly, For Service Order Item 1, J920036 Stripped Block Assembly

1шт.

1

JC919374

CORE-ENGINE

Return Part Number, Use This Part Number To Return Stripped Core For Credit When Using a Remanufactured Assembly

1шт.

2

J917313

BEARING CAP

CAP - bearing, main

7шт.

3

J916369

FLANGE BOLT,Hex, M14 x 2 x 128mm, Cl 10.9

SCREW, Hex Flg Hd, M14 x 128

14шт.

4

REF

INSTRUCTION

BUSHING - camshaft, see Figure 2-50, Ref. 6

7шт.

5

A77782

PLUG

PLUG - expansion, 58 mm O.D.

1шт.

6

A77586

PLUG

PLUG - expansion, 28.9 mm O.D.

1шт.

7

A77506

PLUG

PLUG - expansion, 21 mm O.D.

4шт.

8

J905401

PLUG

PLUG - expansion, 35 mm O.D.

3шт.

A77716

BLOCK

KIT - block hardware, no longer available, order components seperately

1шт.

Order A77716 Hardware Kit when ordering J920036 Stripped Block.

1шт.

9

A77530

PLUG

PLUG - expansion, 30 mm O.D.

2шт.

10

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - turbocharger oil drain

1шт.

11

41-3044

PLUG,Exp, 2 3/4"

PLUG, Exp, 2 3/4"

1шт.

12

J901846

PIN,12.01mm OD x 24mm L

PIN - dowel

4шт.

13

J906619

PLUG,1/8" - 27

PLUG - hex, 1/8 inch PT

6шт.

14

A77429

PLUG

PLUG - hex socket, 1/2 inch PT

5шт.

15

A77505

PLUG

PLUG - hex socket, 3/4 inch PT

2шт.

16

A77533

PLUG

PLUG - hex socket, 1 inch PT

1шт.

17

J919003

NOZZLE INJECTION

NOZZLE - piston cooling

12шт.

18

J900257

PIN,10.01mm OD x 16mm L

PIN - dowel, 16 mm long

2шт.

19

217-103

COCK, DRAIN

VALVE - 1/4 inch PT

1шт.

20

A77439

PLUG

PLUG - expansion, 22 mm O.D.

1шт.

21

J920762

ELBOW

HOSE - elbow, replaces J909389

1шт.

22

J918521

HOSE CLAMP,59mm - 83mm

CLAMP - adj, 1-13/16 - 2-3/4 inch dia.

1шт.

23

J905408

TUBE,35.13 mm ID x 52.39 mm OD x 100 mm L

TUBE - oil filter

1шт.

24

A77424

FILLER CAP

CAP - oil fill tube

1шт.

25

196804A1

KIT

KIT - engine block heater, replaces A77595 kit, Includes: Ref. 26 - 28

1шт.

26

196466A1

ELECTRIC CABLE

CABLE - engine block heater, replaces J905113

1шт.

27

NSS

NOT SOLD SEPARAT

ELEMENT - heater, 120 volt, 1000 watts

1шт.

28

J910517

O-RING

O-RING - heater sealing

1шт.

Выбрано товаров: 45
