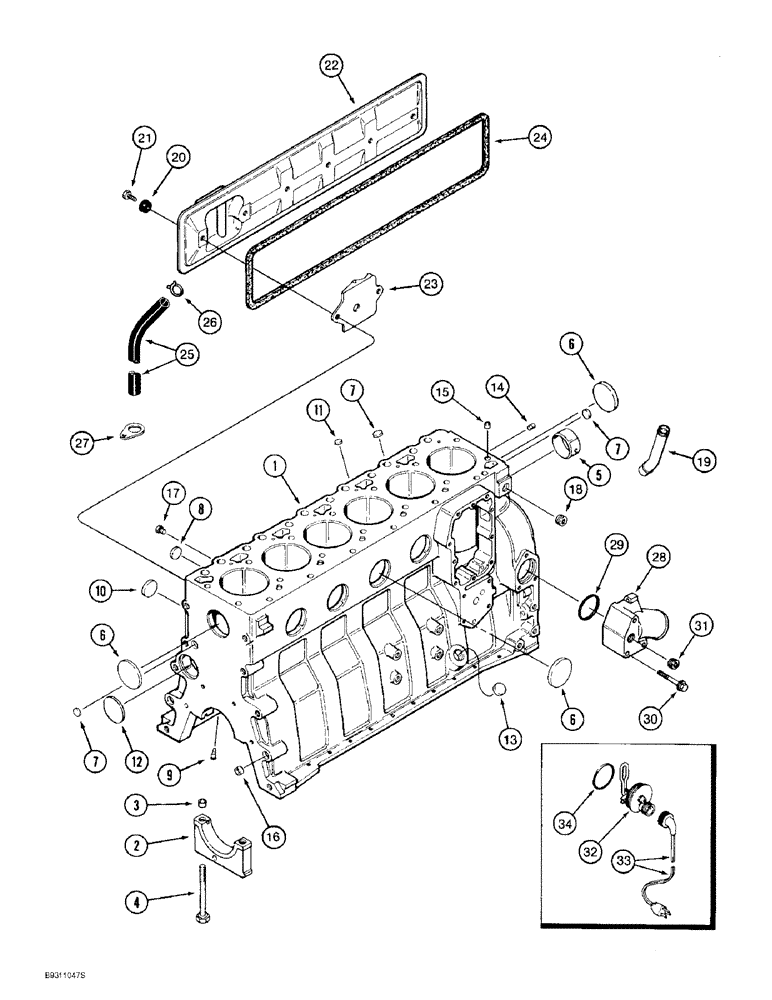

Запчасти Case 1150E (2-052) - CYLINDER BLOCK, 6T-590 ENGINE, A174035 AND A174356 ENGINE ASSY PRIOR ENG SN 44511034 (02) - ENGINE

A174035

ENGINE

ENGINE ASSEMBLY - complete, 6T-590, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe, for service order basic engine below

1шт.

1989051C2R

REMAN-REPLACEMENT EN

Remanufactured, For N.A. Only

1шт.

6T-590C

CORE-REPLACEMENT ENG

Return Number, Complete, For N.A. Only

1шт.

AR174356

ENGINE, EXCHANGE

ENGINE (EXCHANGE) ENGINE ASSEMBLY - remanufactured, North America only, component parts shown on this Figure do not apply to the remanufactured assembly, no longer available, order 1989096C2R basic engine on Figure 2-56

1шт.

AC174356

CORE-ENGINE

RETURN NUMBER - use this part number to return engine assembly core for credit when using a remanufactured assembly

1шт.

A174356

BASIC ENGINE

ENGINE ASSEMBLY

1шт.

Basic, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front crank pulley, turbocharger and belt tensioner, no longer available, order 1989096C2 basic engine on Figure 2-56

1шт.

JR910510

ENGINE, EXCHANGE

ENGINE (EXCHANGE) BLOCK ASSEMBLY - short, remanufactured, North America only, component parts shown on this Figure do not apply to the remanufactured assembly

1шт.

JC910510

CORE-ENGINE

RETURN NUMBER - use this part number to return block core for credit when using a remanufactured assembly

1шт.

J920392

SKELETON ENGINE

BLOCK ASSEMBLY - short, engine, new, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, replaces J910510 short block assembly

1шт.

Order J920399 hardware kit when ordering J920392 block assembly or J916255 stripped block.

1шт.

1

J916255

CYLINDER BLOCK

BLOCK ASSEMBLY - stripped, engine, replaces J905810 stripped block, Includes: Ref. 2 - 18

1шт.

Order J920399 hardware kit when ordering J920392 block assembly or J916255 stripped block.

1шт.

2

J900967

BEARING CAP

CAP - main bearing

7шт.

3

J900068

BEARING WASHER

RING - dowel, 18 mm OD

14шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

BOLT - main bearing cap, special

14шт.

5

REF

INSTRUCTION

BUSHING - front, camshaft, see Ref. 2 on Figure 2-48

1шт.

6

A77782

PLUG

PLUG - expansion, 58 mm OD, replaces J900965 plug

6шт.

7

J900956

PLUG

PLUG - expansion, 18 mm OD

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

PLUG, , Replaces A77539 Cup, 1", Stainless

4шт.

J802641

PACKAGE, REPAIR

KIT - block hardware, replaces J905813 kit

1шт.

Order J920399 hardware kit when ordering J920392 block assembly or J916255 stripped block.

1шт.

9

J901020

NOZZLE CAP

NOZZLE - piston cooling

6шт.

10

J900958

PLUG

PLUG - expansion, 32 mm O.D.

1шт.

11

J900955

PLUG

PLUG - expansion, 10 mm O.D.

2шт.

12

172599

PLUG,Exp, 2 3/8"

PLUG - expansion, Welch, 60 mm O.D.

1шт.

13

A77439

PLUG

PLUG - expansion, 22 mm O.D., not used in this application

1шт.

14

J900257

PIN,10.01mm OD x 16mm L

PIN - dowel, 16 mm long

2шт.

15

J902343

DOWEL

RING - dowel, 16 mm O.D.

2шт.

16

J900068

BEARING WASHER

RING - dowel, 18 mm O.D.

2шт.

17

J906619

PLUG,1/8" - 27

PLUG - hex, 1/8 inch PT

2шт.

18

A77429

PLUG

PLUG - hex socket, 1/2 inch PT

1шт.

19

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - turbocharger oil drain, see Fig. 2-15 for connecting parts

1шт.

20

J900267

SEAL

SEAL - cover bolt

6шт.

21

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 16 mm

6шт.

22

J927913

COVER

COVER - tappet, replaces J904672 and J911822

1шт.

23

J907586

BAFFLE

BAFFLE - tappet cover

1шт.

24

J928832

GASKET

GASKET - tappet cover, replaces J904776 and J907617

1шт.

25

J918612

TUBE,360.00 mm

Breather, Replaces J906593

1шт.

26

J904230

CLAMP,25.4mm

CLAMP - spring, hose, spring type, hose

1шт.

27

J909670

CLIP

CLIP - retaining, breather hose, replaces A77531

1шт.

28

J903102

CONNECTION

CONNECTION - water inlet

1шт.

29

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID, replaces J901467 O-ring

1шт.

30

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

BOLT - heavy hex flange, 10 - 1.5 x 75 mm, class 10.9, replaces J901757

3шт.

31

A77429

PLUG

PLUG - hex socket, 1/2 inch PT

2шт.

196803A1

KIT

KIT - engine block heater, replaces A77489 and A77634 kit

1шт.

32

NSS

NOT SOLD SEPARAT

HEATER - engine block

1шт.

33

196466A1

ELECTRIC CABLE

CABLE - engine block heater, replaces J905113

1шт.

34

J910517

O-RING

O-RING - heater sealing

1шт.
