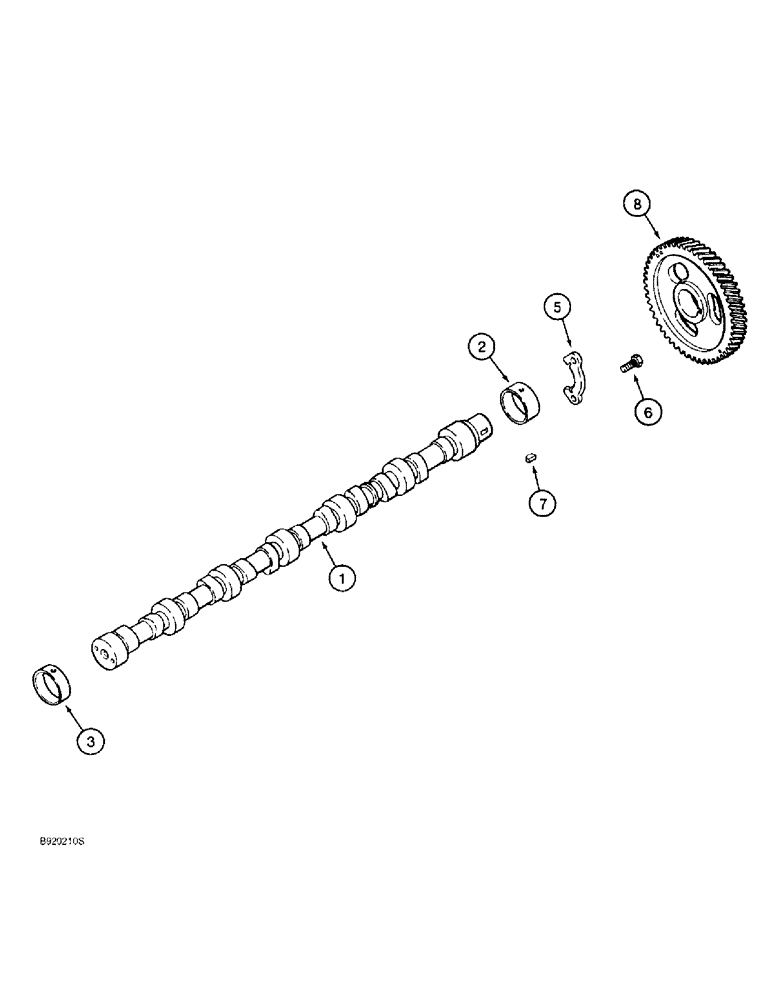

Запчасти Case 1150E (2-048) - CAMSHAFT, 6T-590 ENGINE (02) - ENGINE

1

J929042

CAMSHAFT

- engine, replaces J907824 and J914639

1шт.

J929042R

REMAN-CAMSHAFT

1150E, 1155E

1шт.

J929042C

CORE-CAMSHAFT

Return Number

1шт.

2

J901306

BUSHING

- camshaft, front

1шт.

2

J904369

BUSHING

- camshaft, front, oversize, 58 mm O.D.

1шт.

3

J903242

BUSHING,54.12mm ID x 57.38mm OD x 18mm L

- camshaft, intermediate and rear, service repair only

6шт.

When the intermediate and rear cylinder block camshaft bores are reamed in engine repair, order and install item 3, J903242 bushings shown above.

1шт.

5

J927155

SUPPORT

- thrust, camshaft, replaces J901761 and J914641

1шт.

6

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

7

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

Replaces J902332 #6, 5/32" x 5/8", HT

1шт.

8

J929030

PINION

GEAR - camshaft, replaces J907431

1шт.
