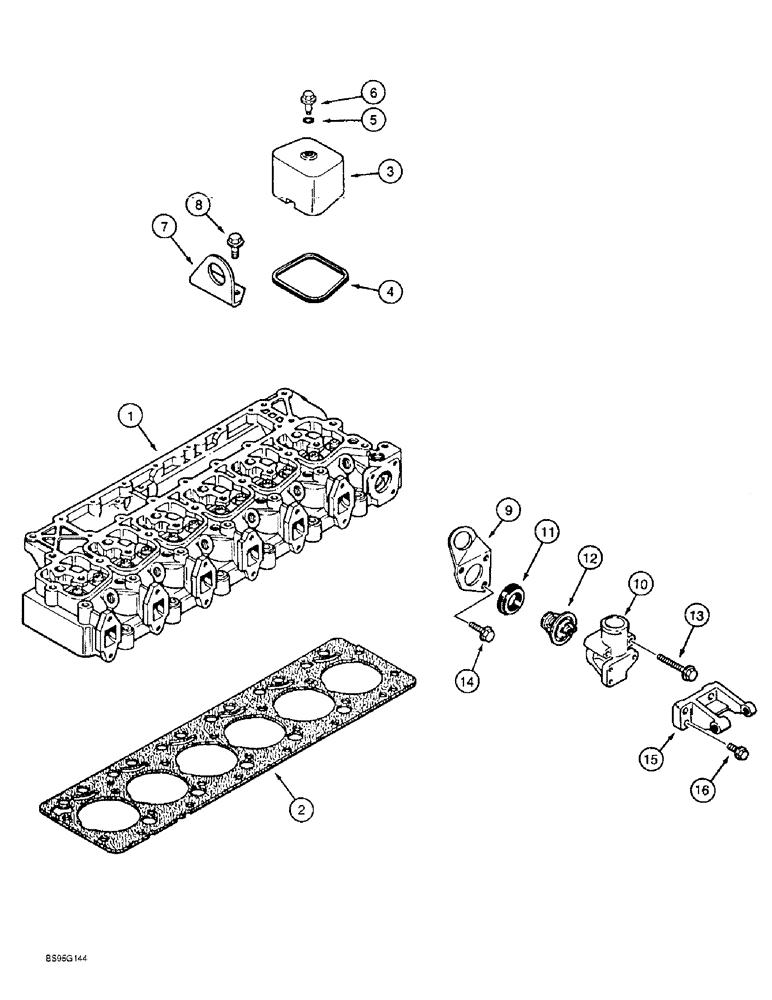

Запчасти Case 1150E (2-032) - CYLINDER HEAD COVER, 6T-590 ENGINE, THERMOSTAT AND HOUSING (02) - ENGINE

1

REF

INSTRUCTION

HEAD - cylinder, see Figure 2-40 for correct assembly and component parts

1шт.

2

J282805

GASKET

- head, standard, replaces J921394, J917358, A77755, J918035 and J907057 gasket

1шт.

2

J921396

CYLINDER HEAD GASKET

- head, 2 notches, 0.25 mm overthick, replaces J918306, J917359, J915723 and J907058 gasket

1шт.

2

J921398

GASKET

- head, 3 notches, 0.50 mm overthick, replaces J918307, J917360, J915724 and J907059 gasket

1шт.

3

J902604

COVER

- rocker arm

6шт.

4

J902666

GASKET

SEAL - rocker arm cover

6шт.

5

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt

6шт.

6

J907049

BOLT,Hex

- hex flange, special, 8 - 1.25 x 21.25 mm

6шт.

7

J908118

BRACKET

- lifting, rear

1шт.

8

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 25 mm, class 10.9

2шт.

9

J903757

BRACKET

- lifting, front, thermostat housing

1шт.

10

J914409

HOUSING

- thermostat, replaces J903756 housing

1шт.

A77736

THERMOSTAT

KIT - coolant thermostat, Includes: Ref. 11 & 12

1шт.

11

J923331

GASKET

- thermostat housing, replaces J920020 and J903301 gasket

1шт.

12

NSS

NOT SOLD SEPARAT

THERMOSTAT - water, replaces J912587 thermostat

1шт.

13

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 70 mm, Replaces J903096 bolt

2шт.

14

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 35 mm, Replaces J900632 bolt

1шт.

15

J923387

SUPPORT

- alternator mounting, replaces J910713 support

1шт.

16

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm, Replaces 813-8025 bolt

3шт.
