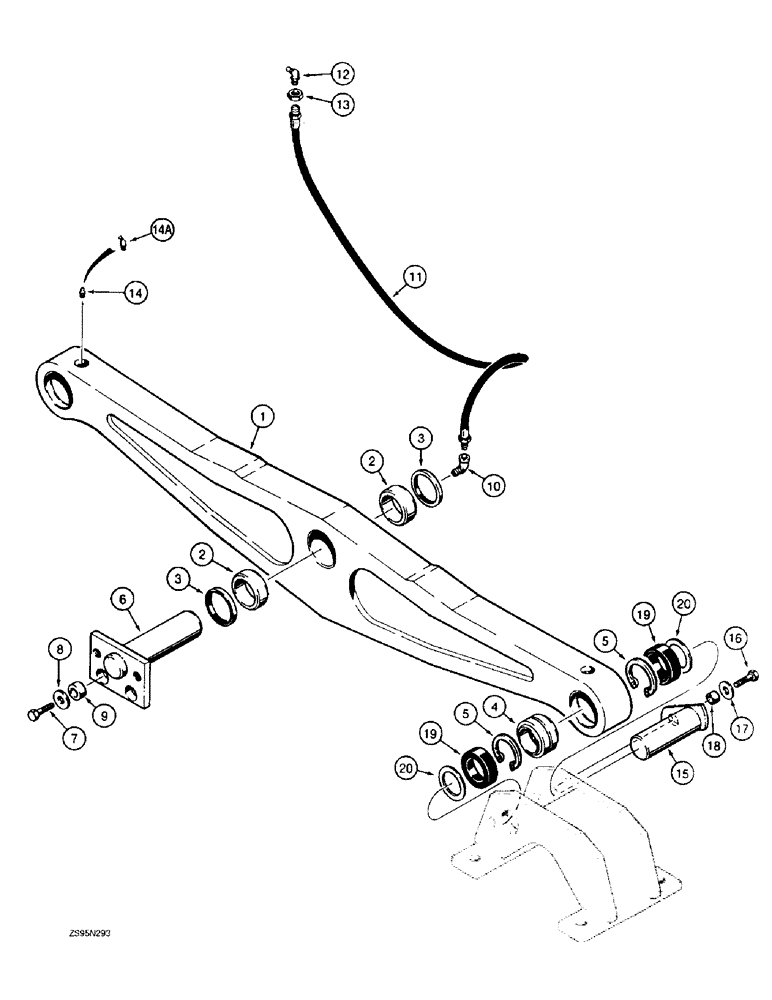

Запчасти Case 1150E (5-32) - SUSPENSION SYSTEM - EQUALIZER BEAM, DOZER AND DRAWBAR MODELS (11) - TRACKS/STEERING

R55857

BEAM ASSY.

BEAM ASSEMBLY - equalizer, 62 inch (1575 mm) gauge standard and long track dozer models (replaces R47800 beam assembly), Includes: Ref. 1 - 5

1шт.

R55859

BEAM ASSY.

BEAM ASSEMBLY - equalizer, 74 inch (1880 mm) gauge wide track, LGP, and long track dozer models, not shown, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

BEAM - equalizer, suspension

1шт.

2

D46403

BUSHING,63.75mm ID x 76.2mm OD x 28.44mm L

- center

2шт.

3

R39286

SEAL,63.5mm ID x 76.33mm OD x 7.92mm Thk

- bushing

2шт.

3a

B17069

LOCTITE

- Hi Strength, No. 601, 2 oz. (50 ml), use on center bushing seals, not shown

1шт.

3b

B500637

LOCTITE

PRIMER - Locquic, Grade T, 6 oz aerosol can, use with Loctite item 3A, not shown

1шт.

4

R55649

BUSHING,50.8mm ID x 80.96mm OD x 44.45mm W

- self-aligning, outer

2шт.

5

100-21315

SNAP RING,3.156", Int, #315

Ring, Snap, , Outer bushing 3.156", Int, #315

4шт.

6

R40497

PIN,63.5mm OD x 213mm L

- center, equalizer beam to main frame

1шт.

7

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch, Use with Loctite 242

2шт.

8

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

- flat, 13/16 x 1-1/2 x 7/32 inch, hardened

2шт.

9

T31129

BUSHING,19.66mm ID x 31.75mm OD x 17.48mm L

- pin

2шт.

10

221-1411

ELBOW,90 Degree, 1/8"-27, NPT

- street, 90 degree, 1/8 inch PT

1шт.

11

R45862

HOSE,3.17mm ID x 1041.4mm L, SAE 100R7

- 41 inch (1041 mm) long

1шт.

12

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 90 degree, 1/4-28 taper x 3/4 inch, tapered

1шт.

13

F53473

LOCK NUT,1/8-27 NPSM

- special

1шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch, if used

2шт.

14a

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree, 1/8 PT x 7/8 inch, special short, if used

2шт.

15

R47945

PIN,50.77mm OD x 151.13mm L

- beam, outer

2шт.

16

426-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 8

- hex, 3/4 NC x 1-3/4 inch, grade 8, use with Loctite 242

2шт.

17

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

- flat, 13/16 x 1-1/2 x 7/32 inch, hardened

2шт.

18

T31129

BUSHING,19.66mm ID x 31.75mm OD x 17.48mm L

- pin

2шт.

19

R36521

SEAL

- pin

4шт.

20

D34668

WASHER,52.39mm ID x 76.2mm OD x 3.57mm Thk

- seal, flat, special

4шт.
