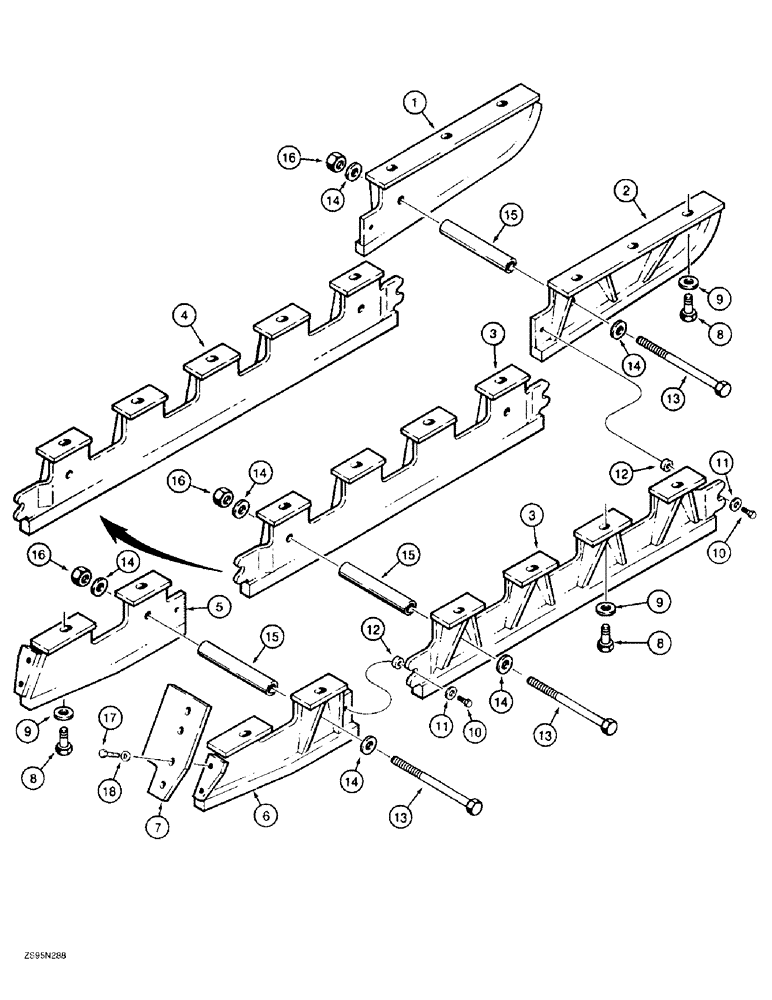

Запчасти Case 1150E (5-22) - TRACK GUARDS (11) - TRACKS/STEERING

1

R44377

PROTECTOR

GUARD - track, front, left-hand track - outer, right-hand track - inner

2шт.

2

R44378

PROTECTOR

GUARD - track, front, right-hand track - outer, left-hand track - inner

2шт.

3

R46198

GUARD ASSY.

GUARD - track, center, loader models, 62 inch gauge dozer models and 74 inch gauge wide track dozer models

4шт.

4

R44373

PROTECTOR

GUARD - track, center, 74 inch gauge LGP and long track dozer models

4шт.

5

R44385

GUIDE

GUARD - track, rear, left-hand track - outer, right-hand track - inner

2шт.

6

R44386

GUIDE

GUARD - track, rear, right-hand track - outer, left-hand track - inner

2шт.

7

R46471

COVER

- rear, track guard

4шт.

8

413-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

- hex, 3/4 NC x 1-1/2 inch, use with Loctite 242

36-40шт.

9

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, special

36-40шт.

10

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch, use with Loctite 242

8шт.

11

D64050

WASHER

- flat, special

8шт.

12

R43651

SPACER

- track guards

8шт.

13

413-12176

BOLT,3/4"-10 x 11", Gr 5

- hex, 3/4 NC x 11 inch

8шт.

14

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, special, 3/4 inch, hardened

16шт.

15

R27555

SPACER

- track guards

8шт.

16

231-41112

LOCK NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4 inch NC

8шт.

17

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

Use with Loctite 242 Hex, 5/8"-11 x 1 1/4", G5, Full Thd

16шт.

18

96-21066

WASHER,21/32" x 1 5/16" x .150", HDN

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened

16шт.
