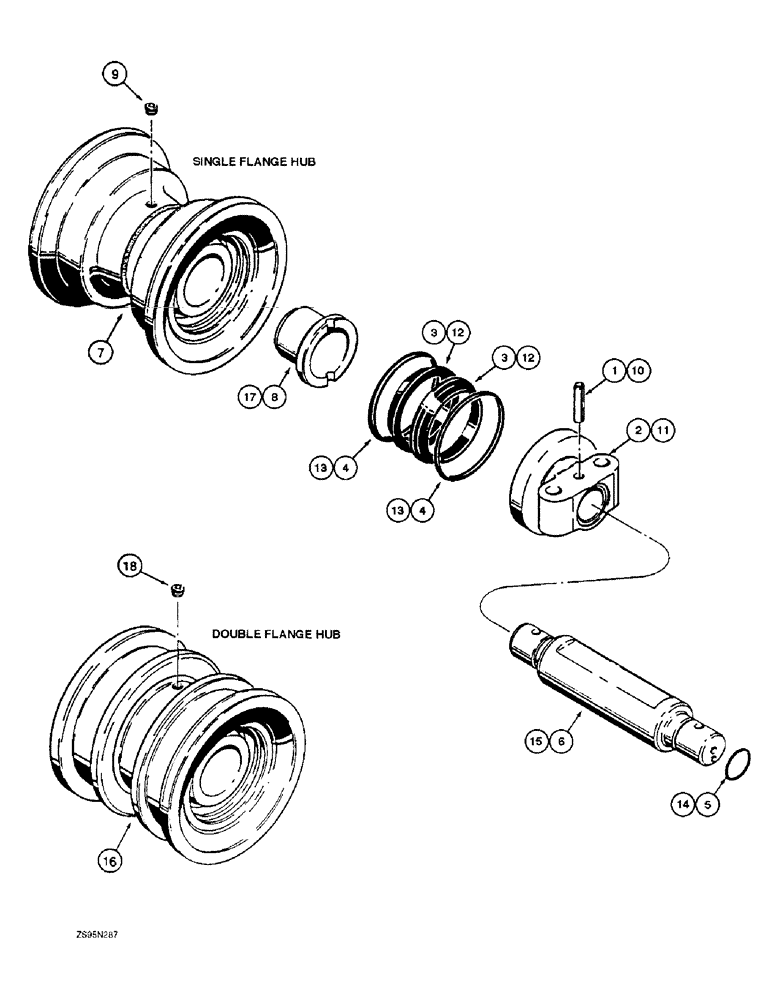

Запчасти Case 1150E (5-20) - TRACK ROLLERS, R33571 (SINGLE FLANGE) & R33572 (DOUBLE FLANGE) (11) - TRACKS/STEERING
№
Артикул
Название
Примечание
Количество
R33571
ROLLER
ASSEMBLY - track, single flange, eight used on all models
8шт.
1
R33581
PIN
- roll, cap retaining
2шт.
2
R33578
CYLINDER END CAP
CAP CYLINDER END - end collar
2шт.
R36780
SEAL,100mm ID x 123.7mm OD x 31.8mm Thk
- face, track roller
2шт.
3
NSS
NOT SOLD SEPARAT
RING - metal
2шт.
4
NSS
NOT SOLD SEPARAT
RING - rubber
2шт.
5
238-5222
O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro
Shaft -222, 70 Duro, 1.484" ID x .139" Thk
2шт.
6
R33579
SHAFT HOUSING
- track roller, retained by roll pins
1шт.
R33575
ROLLER
HUB ASSEMBLY - track
1шт.
7
NSS
NOT SOLD SEPARAT
HUB - track roller
1шт.
8
R33577
BUSHING
- hub
2шт.
9
R33557
PLUG
- hex socket, track roller
1шт.
R33572
ROLLER
ASSEMBLY - track, double flange, four used on loader models, 62 inch gauge dozer models and 74 inch gauge wide track dozer models; six used on 74 inch gauge LGP and long track dozer models
4-6шт.
10
R33581
PIN
- roll, cap retaining, R33572 track roller - double flange
2шт.
11
R33578
CYLINDER END CAP
CAP CYLINDER END - end collar, R33572 track roller - double flange
2шт.
R36780
SEAL,100mm ID x 123.7mm OD x 31.8mm Thk
- face, R33572 track roller - double flange
2шт.
12
NSS
NOT SOLD SEPARAT
RING - metal, R33572 track roller - double flange
2шт.
13
NSS
NOT SOLD SEPARAT
RING - rubber, R33572 track roller - double flange
2шт.
14
238-5222
O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro
Shaft, R33572 track roller - double flange -222, 70 Duro, 1.484" ID x .139" Thk
2шт.
15
R33579
SHAFT HOUSING
- retained by roll pins, R33572 track roller - double flange
1шт.
R33576
ROLLER
HUB ASSEMBLY - R33572 track - double flange
1шт.
16
NSS
NOT SOLD SEPARAT
HUB - R33572 track roller - double flange
1шт.
17
R33577
BUSHING
- hub, R33572 track roller - double flange
2шт.
18
R33557
PLUG
- hex socket, R33572 track roller - double flange
1шт.
Выбрано товаров: 24
