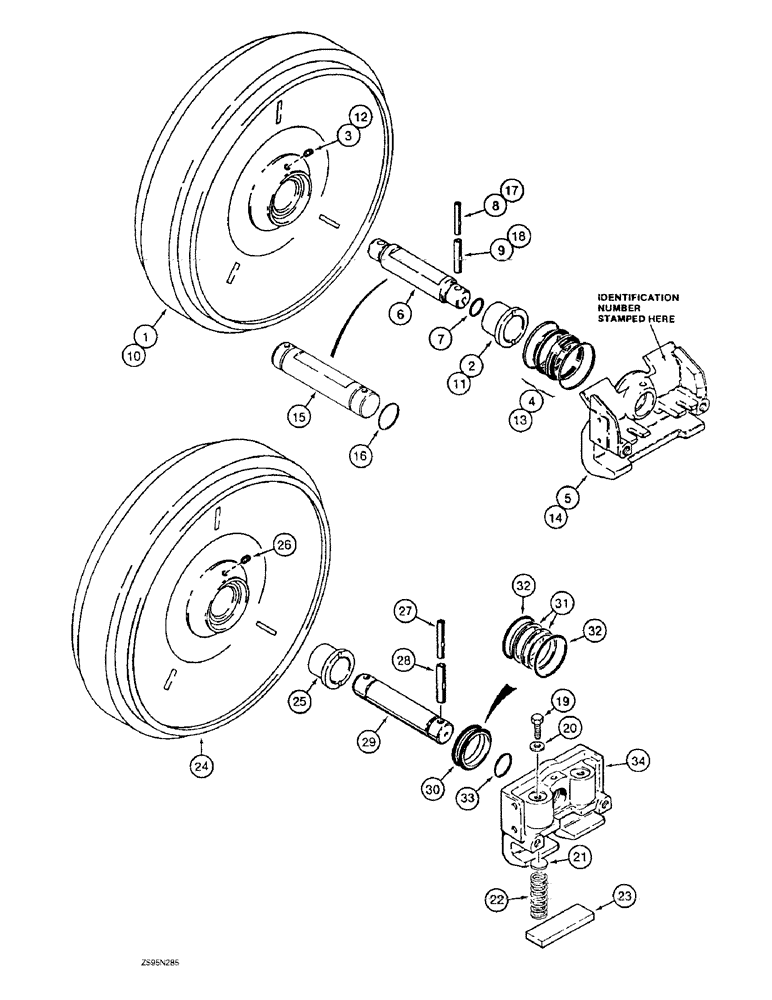

Запчасти Case 1150E (5-16) - IDLER ASSEMBLIES, R52666 , R55674 & R58615 (11) - TRACKS/STEERING

R52666

STEERING IDLER

IDLER, STEERING - track, no longer available, order R58615 idler and related parts, Refs. 19 - 34 below, Includes: Ref. 1 - 9

2шт.

1

R52667

WHEEL

HUB ASSEMBLY - idler, with bushing, Includes: Ref. 2, R52666 idler assy

1шт.

2

S105797

BUSHING

split, idler hub, R52666 idler assy

2шт.

3

R33557

PLUG

hex socket, R52666 idler assy

1шт.

4

S116825

SEAL,90.5mm ID x 109.5mm OD x 31.8mm Thk

SEAL - face, includes two metal rings and two seals, R52666 idler assy

2шт.

5

R52676

BRACKET

idler, stamped with No. 51903, R52666 idler assy

2шт.

Replace bracket or shaft, Ref. 5 and 6 with one R58617 shaft; and two each of R58616 bracket, R58618 and R58619 pins, R58620 wear plate, 238-5227 O-ring; and four each of R58621 spring, R33245 seat, 413-620 bolt, 495-21044 washer.

1шт.

6

R52675

AXLE PIN

SHAFT - idler, 1-3/4 inch (45 mm) O.D., at pin hole, R52666 idler assy

1шт.

Replace bracket or shaft, Ref. 5 and 6 with one R58617 shaft; and two each of R58616 bracket, R58618 and R58619 pins, R58620 wear plate, 238-5227 O-ring; and four each of R58621 spring, R33245 seat, 413-620 bolt, 495-21044 washer.

1шт.

7

238-5222

O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro

Shaft, R52666 idler assy -222, 70 Duro, 1.484" ID x .139" Thk

2шт.

8

R52706

PIN, ROLL

inner, shaft retaining, R52666 idler assy

2шт.

9

R52661

PIN, ROLL

outer, shaft retaining, R52666 idler assy

2шт.

R55674

FRONT IDLER

IDLER, FRONT - track, no longer available, order R58615 idler and related parts, Refs. 19 - 34 below

2шт.

10

R52667

WHEEL

HUB ASSEMBLY - idler, with bushing, Includes: Ref. 11, R55674 idler assy

1шт.

11

S105797

BUSHING

split, idler hub, R55674 idler assy

2шт.

12

R33557

PLUG

hex socket, idler assembly, R55674 idler assy

1шт.

13

S116825

SEAL,90.5mm ID x 109.5mm OD x 31.8mm Thk

SEAL - face, includes two metal rings and two seals, R55674 idler assy

2шт.

14

R55672

BRACKET

idler, stamped with No. 52094, R55674 idler assy

2шт.

Replace bracket or shaft, Ref. 5 and 6 with one R58617 shaft; and two each of R58616 bracket, R58618 and R58619 pins, R58620 wear plate, 238-5227 O-ring; and four each of R58621 spring, R33245 seat, 413-620 bolt, 495-21044 washer.

1шт.

15

R55673

AXLE PIN

SHAFT - idler, 2-3/8 inch (60 mm) O.D. at pin hole, R55674 idler assy

1шт.

Replace bracket or shaft, Ref. 5 and 6 with one R58617 shaft; and two each of R58616 bracket, R58618 and R58619 pins, R58620 wear plate, 238-5227 O-ring; and four each of R58621 spring, R33245 seat, 413-620 bolt, 495-21044 washer.

1шт.

16

238-5227

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

Shaft, R55674 idler assy -227, 70 Duro, 2.109" ID x .139" Thk

2шт.

17

R52706

PIN, ROLL

inner, shaft retaining, R55674 idler assy

2шт.

18

R52661

PIN, ROLL

outer, shaft retaining, R55674 idler assy

2шт.

19

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

hex, 3/8 NC x 1-1/4 inch, R58615 idler assy

8шт.

20

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch), R58615 idler assy 3/8"

8шт.

21

R33245

SPRING SEAT

SEAT, SPRING, R58615 idler assy

8шт.

22

R58621

SPRING

recoil, R58615 idler assy

8шт.

23

R58620

LARGE PLATE

PLATE, wear, R58615 idler assy

4шт.

R58615

FRONT IDLER

IDLER, FRONT - track, R58615 idler assy

2шт.

R52667

WHEEL

HUB ASSEMBLY - idler, with bushing, Includes: Ref. 24 & 25, R58615 idler assy

1шт.

24

NSS

NOT SOLD SEPARAT

HUB - idler, R58615 idler assy

1шт.

25

S105797

BUSHING

- split, R58615 idler assy

2шт.

26

R33557

PLUG

- hex socket, 12 mm - 1.5 x 10 mm, tapered, R58615 idler assy

1шт.

27

R58619

ROLL PIN

PIN - roll, 10 x 95 mm, R58615 idler assy

2шт.

28

R58618

ROLL PIN

PIN - roll, 16 x 95 mm, R58615 idler assy

2шт.

29

R58617

SHAFT

- idler, R58615 idler assy

1шт.

30

S116825

SEAL,90.5mm ID x 109.5mm OD x 31.8mm Thk

SEAL ASSEMBLY - face, includes two metal rings and two seals, R58615 idler assy

1шт.

31

NSS

NOT SOLD SEPARAT

SEAL - metal, R58615 idler assy

2шт.

32

NSS

NOT SOLD SEPARAT

O-RING - seal, R58615 idler assy

2шт.

33

238-5227

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

Shaft, R58615 idler assy -227, 70 Duro, 2.109" ID x .139" Thk

2шт.

34

R58616

BRACKET

- mounting, with recoil spring feature, R58615 idler assy

2шт.
