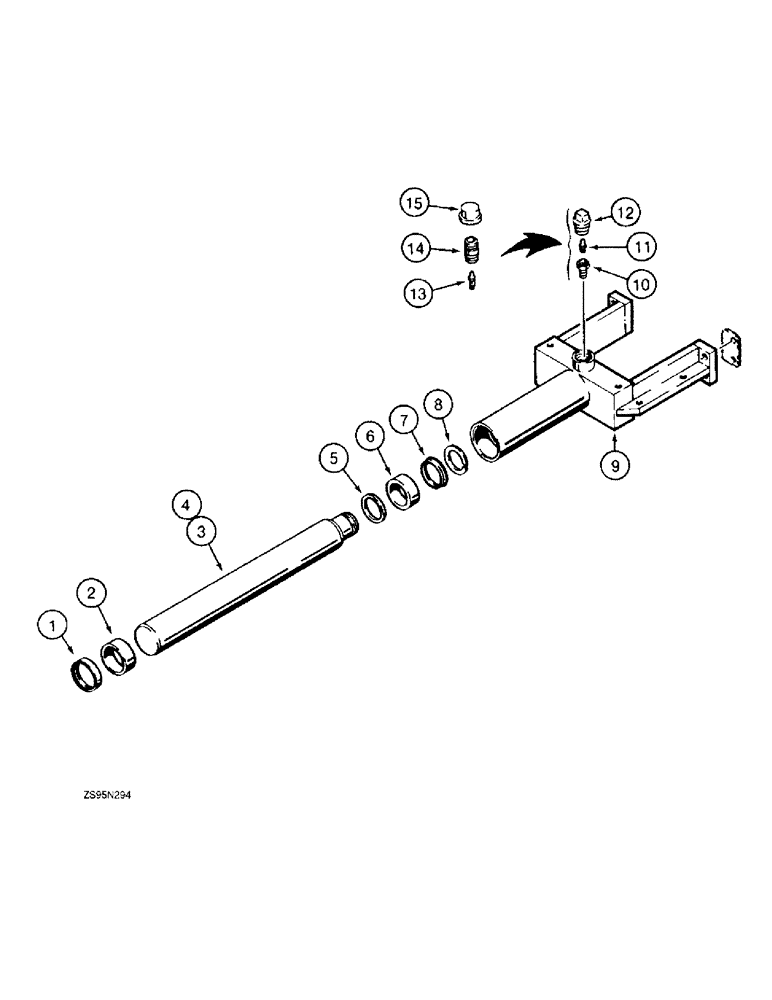

Запчасти Case 1150E (5-14) - TRACK ADJUSTER ASSEMBLY (11) - TRACKS/STEERING

R45815

ADJUSTER,Track

ADJUSTER ASSEMBLY - track, loader models, 62 inch gauge dozer models and 74 inch gauge wide track dozer models, Includes: Ref. 1 - 12

2шт.

R45460

TENSIONER

ADJUSTER ASSEMBLY - track, 74 inch gauge LGP and long track dozer models, Includes: Ref. 1 - 12

2шт.

1

D95149

PACKING RING,60.24mm ID x 73.05mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

2

D30374

RING,60.43mm ID x 73.15mm OD x 25.4mm L

- wear, piston rod, recoil housing end

1шт.

3

R39210

PISTON

ROD - piston, 18-1/4 inch (464 mm) long, R45815 track adjuster only

1шт.

4

143807A1

PISTON

ROD - piston, 28-3/4 inch (732 mm) long, R45460 track adjuster only

1шт.

5

R30202

RING,54.101mm ID x 65.1mm OD x 5.08mm Thk

- backup, bushing

1шт.

6

R25663

BUSHING,53.98mm ID x 66.62mm OD x 25.4mm L

BUSHING - piston rod, yoke end

1шт.

7

R25706

SEAL,53.9mm ID x 66.75mm OD x 10.69mm Thk

- U-cup, piston rod

1шт.

8

101-11212

SNAP RING,#212, 1.997", Ext

RING, SNAP, , Piston rod #212, 1.997", Ext

1шт.

9

R45458

YOKE

YOKE - track adjuster

1шт.

10

D35287

CHECK VALVE,5/8" - 18

- check, track adjuster

1шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch, short, used without track adjuster cover

1шт.

12

221-29

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

used without track adjuster cover Sq Hd, 1 1/4"-11 1/2 NPTF

1шт.

13

219-5

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 3/16 drive type x 23/32 inch, long, used with track adjuster cover

2шт.

For track adjuster covers see Figure 5-10.

1шт.

14

221-1262

FITTING

NIPPLE - straight, 1-1/4 PT x 2 inch, used with track adjuster cover

2шт.

For track adjuster covers see Figure 5-10.

1шт.

15

221-528

CAP,1 1/4" NPT

- pipe, 1-1/4 inch, used with track adjuster cover

2шт.

For track adjuster covers see Figure 5-10.

1шт.
