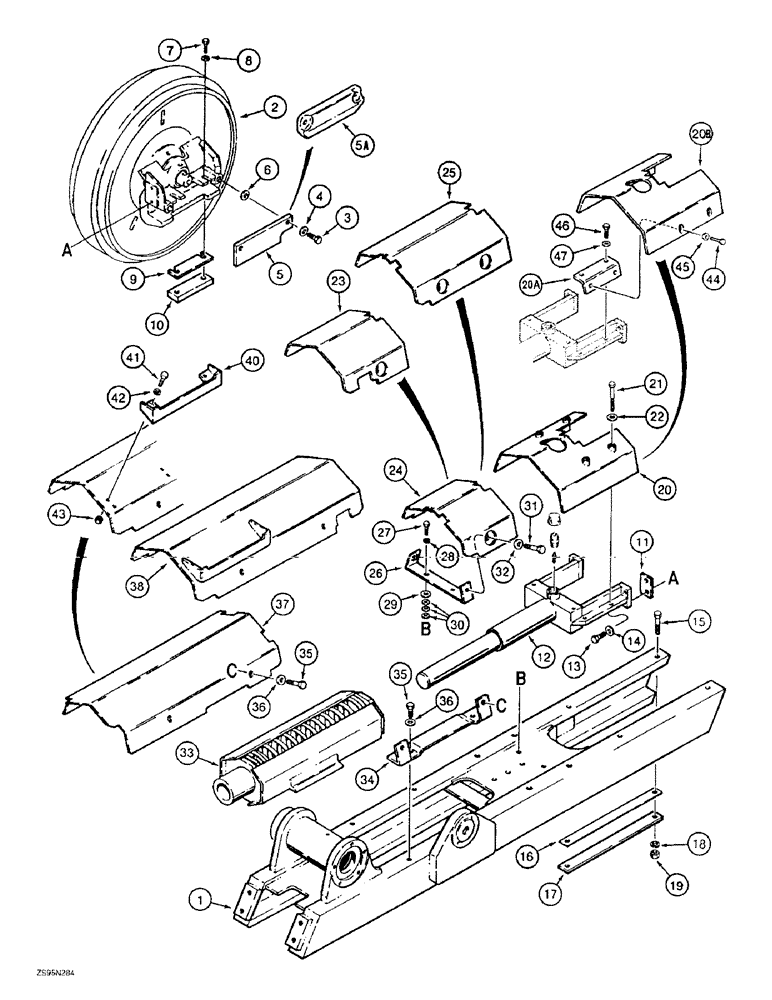

Запчасти Case 1150E (5-10) - IDLER AND RECOIL SYSTEM MOUNTING (11) - TRACKS/STEERING

1

REF

INSTRUCTION

FRAME - track, see Figures 5-2 through 5-8 for track frame options and related parts, right-hand track frame shown in illustration

2шт.

2

REF

INSTRUCTION

IDLER ASSEMBLY - for correct assembly and components see Figure 5-16

2шт.

3

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

8шт.

4

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, special, 3/4 inch, hardened

8шт.

5

R44516

PLATE

- thrust, idler, no longer used, order Ref. 5A for service

4шт.

5a

R56668

LARGE PLATE

PLATE - thrust, idler

4шт.

6

D35268

SHIM,1/32" Thk

(25/32" ID x 1-1/4" OD), Idler thrust plate 1/32" Thk

1шт.

7

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

If used, See Fig. 5-16 Hex, 1/2"-13 x 1 1/2", G5, Full Thd

8шт.

8

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

8шт.

9

R40783

SHIM

- idler wear plate, if used, see Figure 5-16

1шт.

10

R52679

PLATE

- wear, idler, if used, see Figure 5-16

4шт.

11

R37875

SHIM,0.813mm Thk

(.032"), Track adjuster yoke 0.813mm Thk

1шт.

12

REF

INSTRUCTION

ADJUSTER ASSEMBLY - track, for correct assembly and components see Figure 5-14

2шт.

13

113-2448

LOCK BOLT,Locking, 1/2"-13 x 1 1/2", G8

BOLT, Locking, 1/2"-13 x 1 1/2", G8

8шт.

14

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

8шт.

15

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

8шт.

16

R25691

SHIM

- 0.030 inch thick, wear bar

1шт.

17

R40782

PLATE

BAR - wear, idler

4шт.

18

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

19

425-1010

NUT,5/8"-11, G5

8шт.

20

R45878

COVER

- track adjuster yoke, if used, no longer available, order two R57287 brackets (item 20A), one R57292 cover (item 20B), and four each of hardware items 44 - 47 on Figure 5-12 for service

2шт.

20a

R57287

SUPPORT

BRACKET - cover mounting, if used

2шт.

20b

R57292

COVER

- track adjuster yoke, if used

1шт.

21

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch, for R45878 cover, Ref 20

8шт.

22

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened, if used

8шт.

23

R52812

COVER

- track adjuster, right-hand, loader models, if used

1шт.

23

R52811

COVER

- track adjuster, left-hand, loader models, not shown, if used

1шт.

24

R45576

COVER

- track adjuster, drawbar and dozer models except LGP and long track dozer models, if used

2шт.

25

R45557

COVER

- track adjuster, LGP and long track dozer models, if used

2шт.

26

R45965

SUPPORT

BRACKET - cover mounting, four used on LGP and long track dozer models, two used on all other models, if used

2шт.

27

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4-8шт.

28

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4-8шт.

29

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened, if used

4шт.

30

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.

31

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

Use with Loctite 242 Hex, 5/8"-11 x 1 1/4", G5, Full Thd

4шт.

32

96-21066

WASHER,21/32" x 1 5/16" x .150", HDN

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened

4шт.

33

R57728

TENSIONER

HOUSING - recoil, track adjuster

2шт.

34

R45634

SUPPORT

BRACKET - cover retaining, and cover

4шт.

35

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

16шт.

36

96-21066

WASHER,21/32" x 1 5/16" x .150", HDN

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened

16шт.

37

R45472

COVER

- recoil housing, dozer and drawbar models

2шт.

38

R53797

COVER

- recoil housing, with step welded on, right-hand, loader models

1шт.

39

R53796

COVER

- recoil housing, with step welded on, left-hand, loader models, not shown

1шт.

40

R45221

STEP

- recoil housing cover, loader models only, bolt-on, if used

2шт.

41

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

8шт.

42

492-11038

LOCK WASHER,3/8"

8шт.

43

425-106

NUT,3/8"-16, Cl 5

8шт.

44

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

45

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

8шт.

46

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

8шт.

47

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

8шт.

32

96-21066

WASHER,21/32" x 1 5/16" x .150", HDN

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened

4шт.
