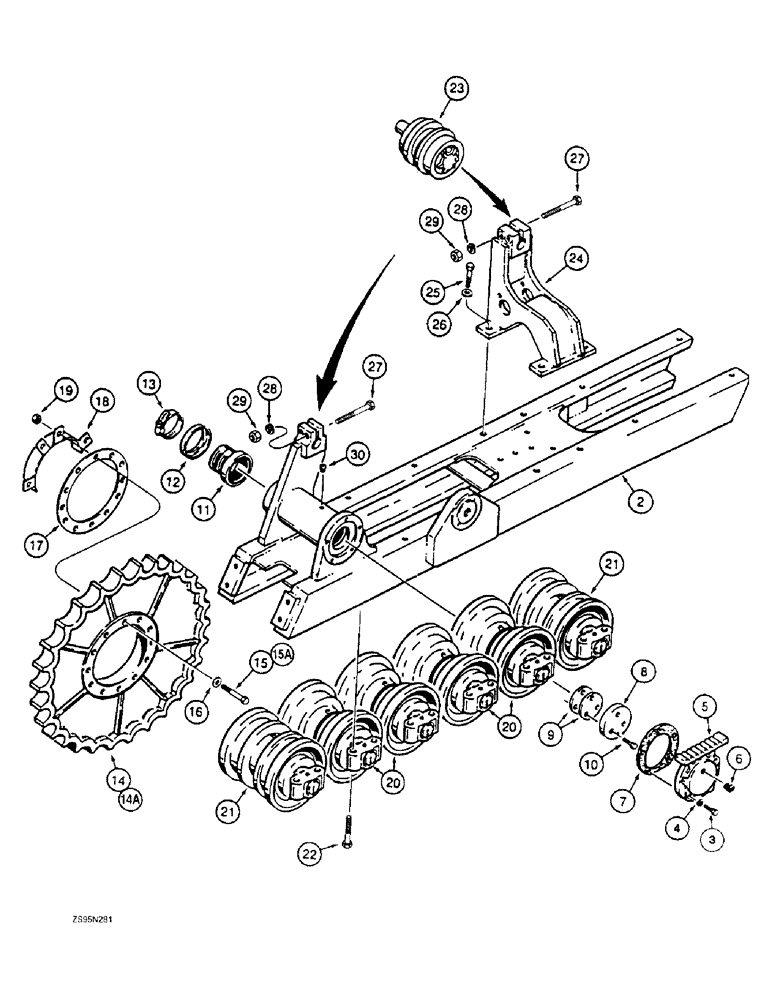

Запчасти Case 1150E (5-04) - TRACK FRAME, SPROCKET, AND ROLLERS, DRAWBAR MODELS (11) - TRACKS/STEERING

1

R51337

FRAME

- track, left-hand, not shown

1шт.

2

R51338

CHASSIS

FRAME - track, right-hand

1шт.

3

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

10шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

10шт.

5

R46782

COVER

ASSEMBLY - pivot shaft, Includes: Ref. 6

2шт.

6

221-841

PLUG

- hex socket, 1/4 inch PT

1шт.

7

R27377

GASKET,0.38mm Thk

- pivot shaft cover

1шт.

8

R36949

PLATE

- end, pivot shaft

2шт.

9

R27540

SHIM,.031" Thk

Pivot shaft end plate .031" Thk

1шт.

10

28-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 8

- hex, 5/8 NF x 1-3/4 inch, grade 8

6шт.

11

R41714

SEAL

- pivot shaft

2шт.

12

R41713

GUARD

- seal, pivot shaft

2шт.

13

214-3164

HOSE CLAMP,3-1/4" - 4-1/8", HD Worm

CLAMP - adj, 3-1/4 - 4-1/8 inch dia, pivot shaft

2шт.

14

R53118

DRIVE SPROCKET

SPROCKET - track drive, 13/16 inch thick at mounting surface, 62 inch gauge dozer models only

2шт.

14a

R53119

DRIVE SPROCKET

SPROCKET - track drive, 1-13/16 inch thick at mounting surface, 74 inch gauge wide track dozer models only

2шт.

15

R27242

BOLT

- hex, special, 3/4 NC x 3-1/4 inch, grade 8, special, 62 inch gauge dozer models only

24шт.

15a

R31277

BOLT

- hex, special, 3/4 NC x 4-1/4 inch, grade 8, special, 74 inch gauge wide track dozer models only

24шт.

16

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, special, 3/4 inch, hardened

24шт.

17

R27241

SHIM,1/32" Thk

Sprocket 1/32" Thk

1шт.

18

192443A1

GUARD

- final drive shaft, if used

4шт.

19

232-41112

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

24шт.

20

R33571

ROLLER

ASSEMBLY - track, single flange, parts list Figure 5-20

8шт.

21

R33572

ROLLER

ASSEMBLY - track, double flange, parts list Figure 5-20

4шт.

22

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

- hex, 3/4 NC x 3 inch, use with Loctite 242

48шт.

23

R33594

ROLLER

ASSEMBLY - carrier, parts list Figure 5-18

4шт.

24

R45454

SUPPORT

BRACKET - mounting, and equalizer beam mounting

2шт.

25

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch

8шт.

26

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, special, 3/4 inch, hardened

8шт.

27

326-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

BOLT, Hex, 5/8"-11 x 3 1/2", G8

8шт.

28

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

29

29-1010

NUT,5/8"-11, G8

- hex, 5/8 inch NC, grade 8

8шт.

30

221-841

PLUG

- hex socket, 1/4 inch PT

2шт.
