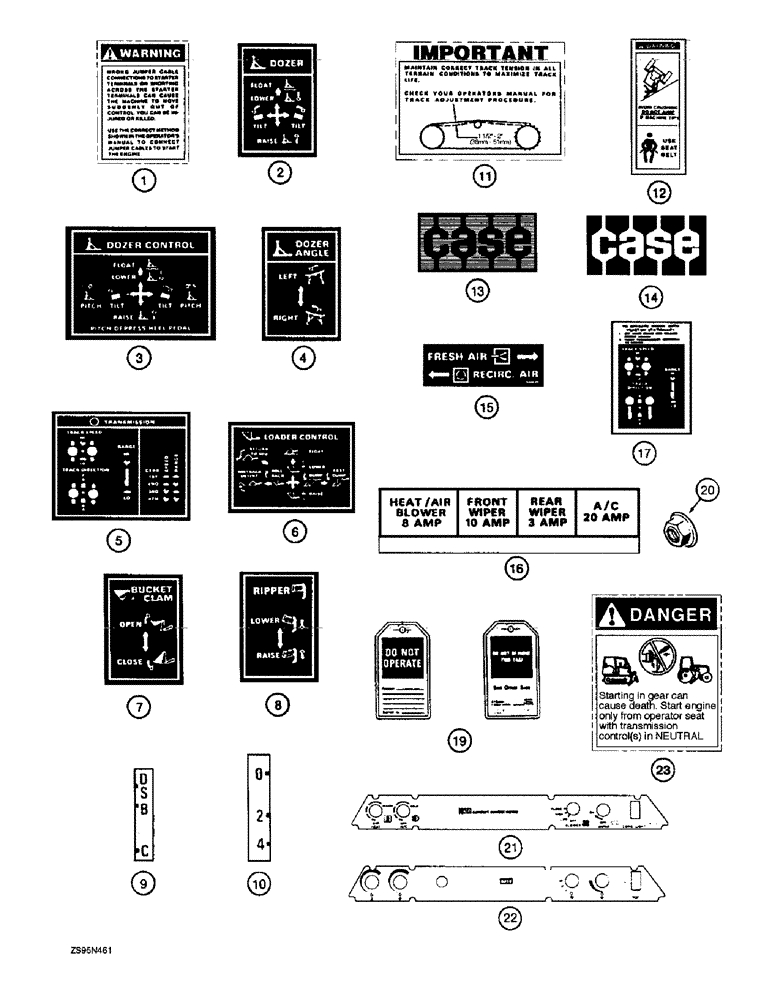

Запчасти Case 1150E (9-132) - DECALS (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
R52106
KIT
- decal, includes instruction sheet, also includes items on Figure 9-130
1шт.
1
321-6718
DECAL
- Warning, wrong jumper cable connections to starter terminals at starter on circuit breaker plate
1шт.
2
321-4181
DECAL
- dozer tilt control pattern
1шт.
3
321-4173
DECAL
- dozer control, pitch and tilt control pattern, angle tilt pitch dozer models
1шт.
4
321-4182
DECAL
- dozer angle control pattern
1шт.
5
321-4178
DECAL
- transmission control pattern
1шт.
6
321-4396
DECAL
- loader control pattern
1шт.
7
321-4184
DECAL
- bucket clam control pattern
1шт.
8
321-4185
DECAL
- ripper control pattern
1шт.
9
321-2433
DECAL
- clam bucket position
1шт.
10
321-1706
DECAL
- clam bucket position indicator
1шт.
11
R57776
DECAL
- Important, maintain correct track tension, single adjustment, if used
1шт.
11
R57817
DECAL
- Important, maintain correct track tension, double adjustment, if used
1шт.
12
321-7030
WARNING DECAL
DECAL, WARNING, Do Not Jump
1шт.
13
321-4739
EMBLEM
- Case, metallic, on grille, if used
1шт.
14
R51993
DECAL
- Case, on grille, adhesive, if used
1шт.
15
R46825
DECAL
- Fresh Air, Recirc. Air, cab models only, if used
1шт.
16
R53390
DECAL
- Heat/Air Blower, Front Wiper, Rear Wiper, A/C, fuses, cab models only
1шт.
17
321-6258
DECAL
- winch operation control pattern
1шт.
19
321-4614
TAG
- do not operate
1шт.
20
131-431
PUSH-ON NUT,Self, Threading, 1/4"
NUT - push-on type, 1/4 inch, on type, plated, attaches Case emblem (Ref.11) to grille, if used
2шт.
21
F64629
PANEL ASSY.
PLATE - cab control panel, includes decal, prior to dozer P.I.N. JAK0009016 or loader P.I.N. JAK0009982
1шт.
22
1999646C1
DECAL
- cab control panel, dozer P.I.N. JAK0009016 or loader P.I.N. JAK0009982 and after
1шт.
23
321-7040
DANGER DECAL
DECAL, DANGER, Starting in gear can cause death
1шт.
24
A180055
CAP ASSY.
INSERT - steering wheel, not shown
1шт.
Выбрано товаров: 25
