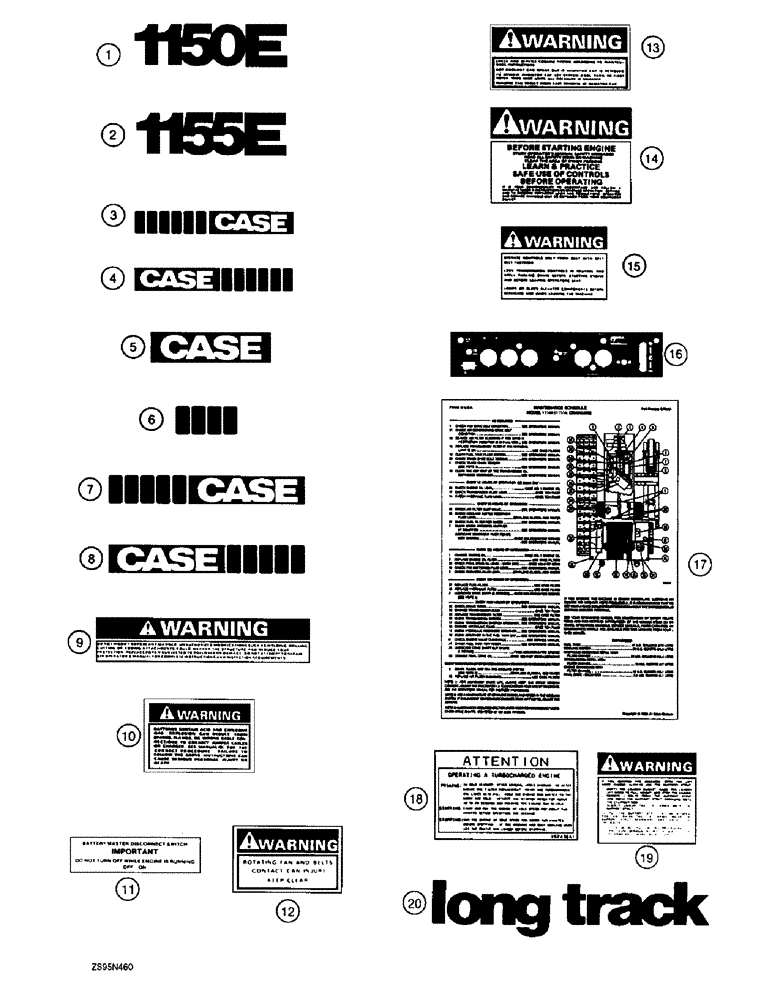

Запчасти Case 1150E (9-130) - DECALS (09) - CHASSIS/ATTACHMENTS

R52106

KIT

- decal, includes instruction sheet, also includes items on Figure 9-132

1шт.

1

R50314

DECAL

- 1150E, dozer and drawbar models

2шт.

2

R50313

DECAL

- 1155E, loader models

2шт.

3

R48429

DECAL

- Case, with left-hand treads, right-hand side shield

1шт.

4

R48430

DECAL

- Case, with right-hand treads, left-hand side shield

1шт.

5

R48428

DECAL

- Case, rear

1шт.

6

R48427

DECAL

- four treads, rear

2шт.

7

R48432

DECAL

- Case, with left-hand treads, right-hand loader lift frame

1шт.

8

R48431

DECAL

- Case, with right-hand treads, left-hand loader lift frame

1шт.

9

321-4192

DECAL

- Warning, do not modify ROPS

1шт.

10

321-6714

DECAL

- Warning, batteries contain acid and explosive gas

2шт.

11

R55652

DECAL

- battery master disconnect switch (Battery), on seat mounting plate

1шт.

12

321-3596

DECAL

- Warning, rotating fan and belts

2шт.

13

321-6672

DECAL

- Warning, check and service cooling system

1шт.

14

321-3705

DECAL

- Warning, before starting engine

1шт.

15

321-4188

DECAL

- Warning, operate controls only from seat

1шт.

16

R51506

DECAL

- instrument panel

1шт.

17

R52796

ADHESIVE

DECAL - Maintenance Schedule, loader models, prior to P.I.N. JAK0009807

1шт.

17

8-80913

DECAL

- Maintenance Schedule, loader models, P.I.N. JAK0009807 and after

1шт.

Decal part numbers preceded by an asterisk above are not available from the parts division, and must be ordered from the technical publications distribution service.

1шт.

17

R50311

DECAL

- Maintenance Schedule, used on dozer and drawbar models without turbo engine, prior to P.I.N. JAK0009807, not shown

1шт.

17

8-80912

DECAL

- Maintenance Schedule, used on dozer and drawbar models without turbo engine, P.I.N. JAK0009807 and after, not shown

1шт.

Decal part numbers preceded by an asterisk above are not available from the parts division, and must be ordered from the technical publications distribution service.

1шт.

17

R56586

DECAL

- Maintenance Schedule, used on dozer models with turbocharged engine only, prior to P.I.N. JAK0009807, not shown

1шт.

17

8-80911

DECAL

- Maintenance Schedule, used on dozer models with turbocharged engine only, P.I.N. JAK0009807 and after, not shown

1шт.

Decal part numbers preceded by an asterisk above are not available from the parts division, and must be ordered from the technical publications distribution service.

1шт.

18

R51636

DECAL

- Attention, operating turbocharged engine

1шт.

19

321-6488

DECAL

- Warning, if you service the machine with the lift arms raised

2шт.

20

R56135

DECAL

- long track, model designation, sides of seat and tank frame, if used, not part of R52106 decal kit

2шт.
