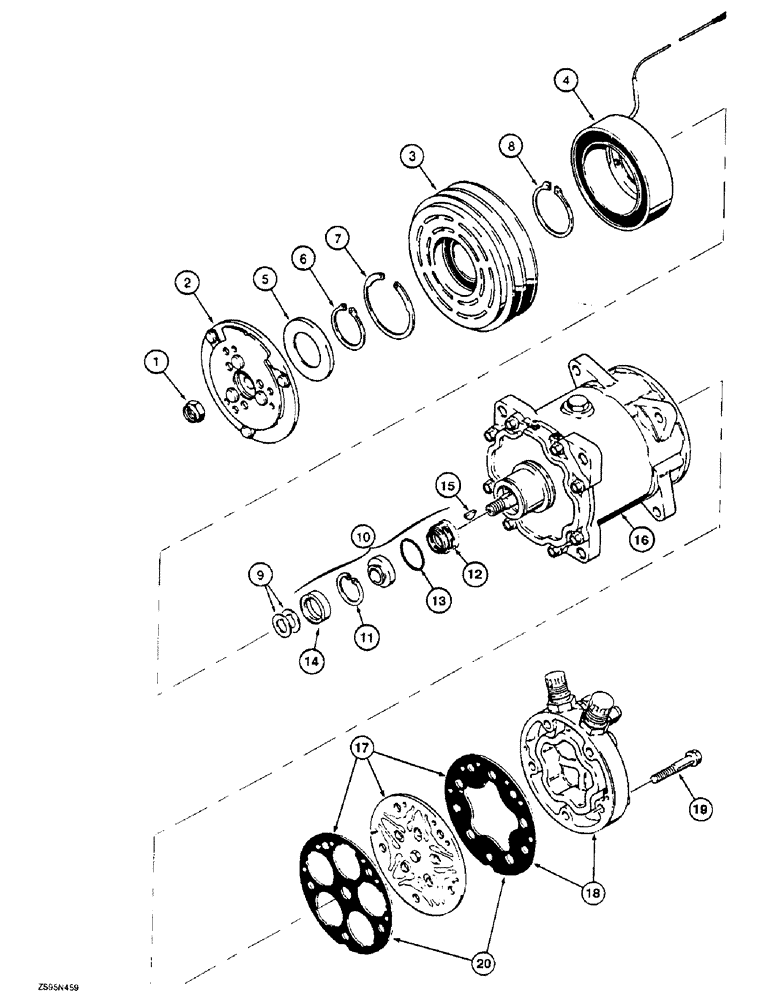

Запчасти Case 1150E (9-122) - AIR CONDITIONING COMPRESSOR ASSY LOADER MODELS PRIOR PIN JAK0009996 DOZER MODEL PRIOR TO JAK0009032 (09) - CHASSIS/ATTACHMENTS

R44120

COMPRESSOR

ASSEMBLY - air conditioning, Includes: Ref. 1 - 20

1шт.

1

NSS

NOT SOLD SEPARAT

NUT - clutch plate end

1шт.

A49705

CLUTCH

ASSEMBLY - compressor, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

PLATE - clutch

1шт.

3

NSS

NOT SOLD SEPARAT

PULLEY - clutch assembly

1шт.

4

NSS

NOT SOLD SEPARAT

COIL - clutch assembly

1шт.

5

NSS

NOT SOLD SEPARAT

SHIELD - dust

1шт.

6

NSS

NOT SOLD SEPARAT

SNAP RING - shaft, small

1шт.

7

NSS

NOT SOLD SEPARAT

SNAP RING - pulley

1шт.

8

NSS

NOT SOLD SEPARAT

SNAP RING - coil

1шт.

9

NSS

NOT SOLD SEPARAT

SHIM - clutch assembly

1шт.

10

A49665

SEAL KIT

KIT - seal, shaft, Includes: Ref. 11 - 14

1шт.

11

A49664

CIRCLIP

RING - snap

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - shaft

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - shaft

1шт.

14

NSS

NOT SOLD SEPARAT

RING - felt

1шт.

15

A49671

KEY

- shaft

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - cylinder assembly

1шт.

17

N9072

LARGE PLATE

PLATE - valve, includes gasket

1шт.

18

N9071

HEAD

- cylinder, includes gasket

1шт.

19

NSS

NOT SOLD SEPARAT

BOLT - cylinder head, special

5шт.

20

A49668

GASKET KIT

KIT - gaskets for cylinder head and valve plate

1шт.
