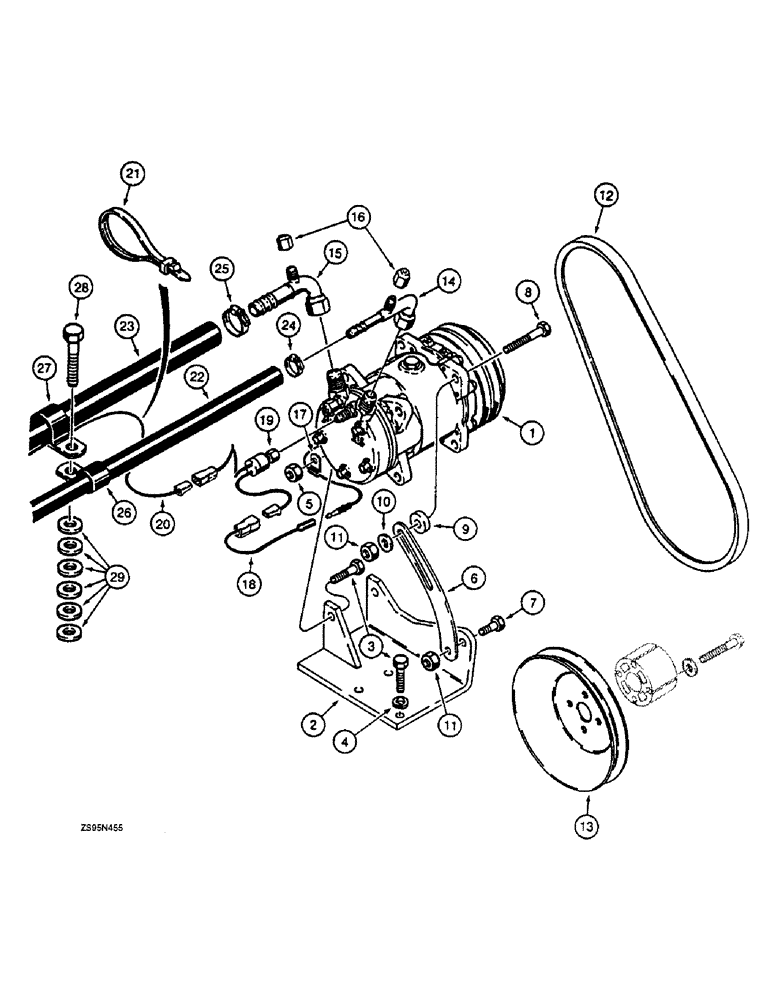

Запчасти Case 1150E (9-114) - AIR CONDITIONING SYSTEM, COMPRESSOR AND CONNECTIONS - LOADER MODELS PRIOR TO PIN JAK0009982 (09) - CHASSIS/ATTACHMENTS

1

R44120

COMPRESSOR

ASSEMBLY - air conditioning, parts list Figure 9-122

1шт.

2

R49998

SUPPORT

BRACKET - compressor mounting

1шт.

3

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- hex, full threads, 10 - 1.5 x 35 mm

5шт.

4

492-11038

LOCK WASHER,3/8"

3шт.

5

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, M10 x 1.5, Cl 8

2шт.

6

R44206

SUPPORT

STRAP - compressor adjusting

1шт.

7

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

Strap, Lower Hex, M10 x 25, 8.8, Full Thd

1шт.

8

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

- hex, 10 - 1.5 x 45 mm, Strap, upper

1шт.

9

R42287

SPACER

- adjusting strap, upper

1шт.

10

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

11

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, M10 x 1.5, Cl 8

2шт.

12

R50426

BELT

Compressor drive

1шт.

13

J908819

PULLEY

- compressor drive, fits over fan pulley, for mounting bolt, washer, and fan spacer see Figure 2-72

1шт.

14

R48816

ELBOW

TUBE - barb fitting, compressor, right-hand

1шт.

15

R48817

ELBOW

TUBE - barb fitting, compressor, left-hand

1шт.

16

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP - hex, 7/16-20 inch female 45 degree flare, compressor barb fitting, test point

2шт.

17

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- compressor wire, P-type, 3/16 inch ID, at lower left-hand mounting hole

1шт.

18

R49638

ELECTRICAL WIRE

WIRE - jumper, compressor

1шт.

19

R48818

IGNITION SWITCH

SWITCH - high pressure

1шт.

20

R49637

ELECTRICAL WIRE

WIRE - compressor to low pressure switch at hose splice fitting

1шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

22

R53951

A/C HOSE,10.32 mm ID x 4300.00 mm, SAE J51 Type A

- To condenser, RH, Cut to length from S118832X hose, See below 10.32 mm ID x 4300.00 mm, SAE J51 Type A

1шт.

For completion of air conditioning hose circuit to components above cab roof see Figures 9-108, 9-110 and 9-114.

1шт.

23

R53952

A/C HOSE,15.88 mm ID x 4000.00 mm, SAE J51 Type A

- Evaporator core return, To compressor, LH, Cut to length from R48824 hose, See below 15.88 mm ID x 4000.00 mm, SAE J51 Type A

1шт.

For completion of air conditioning hose circuit to components above cab roof see Figures 9-108, 9-110 and 9-114.

1шт.

24

A65795

COLLAR CLAMP

CLAMP - adjustable, right-hand, Serial Range: hose-fitting

1шт.

25

A65791

COLLAR CLAMP

CLAMP - adjustable, left-hand, Serial Range: hose-fitting

1шт.

26

51200320

CLAMP

- P-type, 1 inch ID, right-hand hose

1шт.

27

R24840

CLAMP,1.12", Coat, 0.41" Bolt Hole, P Type

- P-type, 1-1/8 inch ID, left-hand hose

1шт.

28

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

1шт.

29

195-533

WASHER,1/2", SAE

- flat, 17/32 x 1-1/16 x 3/32 inch

6шт.

S118832X

HOSE

- 13/32 (10) x 29/32 (23) x 300 inch (7620 mm) long

1шт.

For completion of air conditioning hose circuit to components above cab roof see Figures 9-108, 9-110 and 9-114.

1шт.

R48824

A/C HOSE,15.88 mm ID x 5500.00 mm, SAE J51 Type A

- Bulk 15.88 mm ID x 5500.00 mm, SAE J51 Type A

1шт.

For completion of air conditioning hose circuit to components above cab roof see Figures 9-108, 9-110 and 9-114.

1шт.
