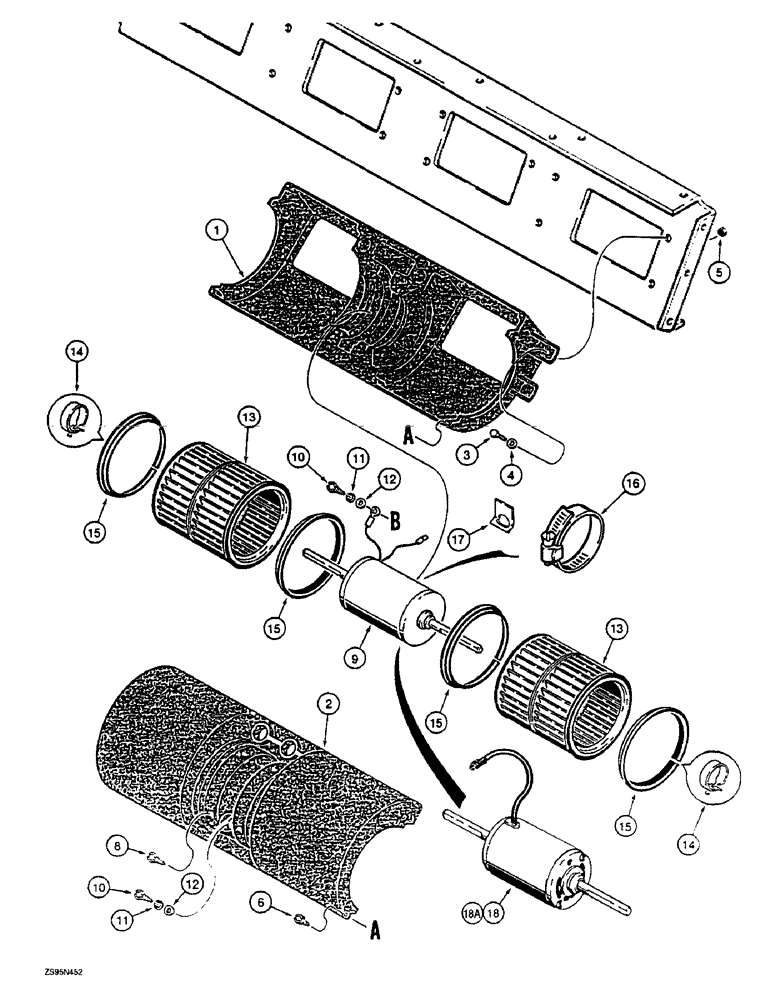

Запчасти Case 1150E (9-108) - AIR CONDITIONING CONDENSER BLOWER, ABOVE CAB ROOF (09) - CHASSIS/ATTACHMENTS

1

F64740

HOUSING

- fan, lower

2шт.

2

F64741

HOUSING

- fan, upper

2шт.

3

463-11012

SCREW,Hex Hd, #10-24 x 3/4"

- machine, hex head, No. 10 NC x 3/4 inch

8шт.

4

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 3/64 inch

8шт.

5

230-42409

NUT,#10-24, GA

NUT - hex, self locking, No. 10 NC

8шт.

6

187-1916

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

SCREW - self tapping, pan head Phillips, No. 8-16 x 3/4 inch

16шт.

8

187-1920

SELF-TAP SCREW,Cross Pan Hd, #8 x 1"

SCREW - self tapping, pan head Phillips, No. 8-16 x 1 inch, motor mounting

8шт.

9

F96902

MOTOR, ELECTRIC

MOTOR - blower, 24 volt, with bullet type connector, no longer available, order A187600 motor (Ref. 18)

2шт.

For motor wiring connection see Figure 9-110.

1шт.

10

260-16512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - self tapping, pan Phillips, No. 10-16 x 3/4 "

6шт.

11

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

6шт.

12

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 3/64 inch

6шт.

13

F64935

BLOWER,Fan

FAN - condenser blower

4шт.

14

F64936

CLAMP

- steel spring, fan retaining

4шт.

15

F64739

RING

- plastic, fan retaining

8шт.

16

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - adj., 2-1/16 - 3 inch dia., motor retaining

2шт.

17

R51563

CLIP,ELECTRICAL

CLIP - motor retaining clamp

2шт.

18

A187600

MOTOR, ELECTRIC

MOTOR - blower, 24 volt, with molded terminal, prior to dozer P.I.N. JAK0009016 or loader P.I.N. JAK0009982

2шт.

For motor wiring connection see Figure 9-110.

1шт.

18a

1546448C1

MOTOR, ELECTRIC

MOTOR - blower, 24 volt, with molded terminal, dozer P.I.N. JAK0009016 or loader P.I.N. JAK0009982 and after

2шт.

For motor wiring connection see Figure 9-110.

1шт.

18a

370512A1R

REMAN-ELECTRIC MOTOR

1150E, Aft. P.I.N. JAK0009016, 1155E, Aft. P.I.N. JAK0009982, Reman For New P/N 1546448C1

2шт.

18a

370512A1C

CORE-ELECTRIC MOTOR

Return Number

2шт.
