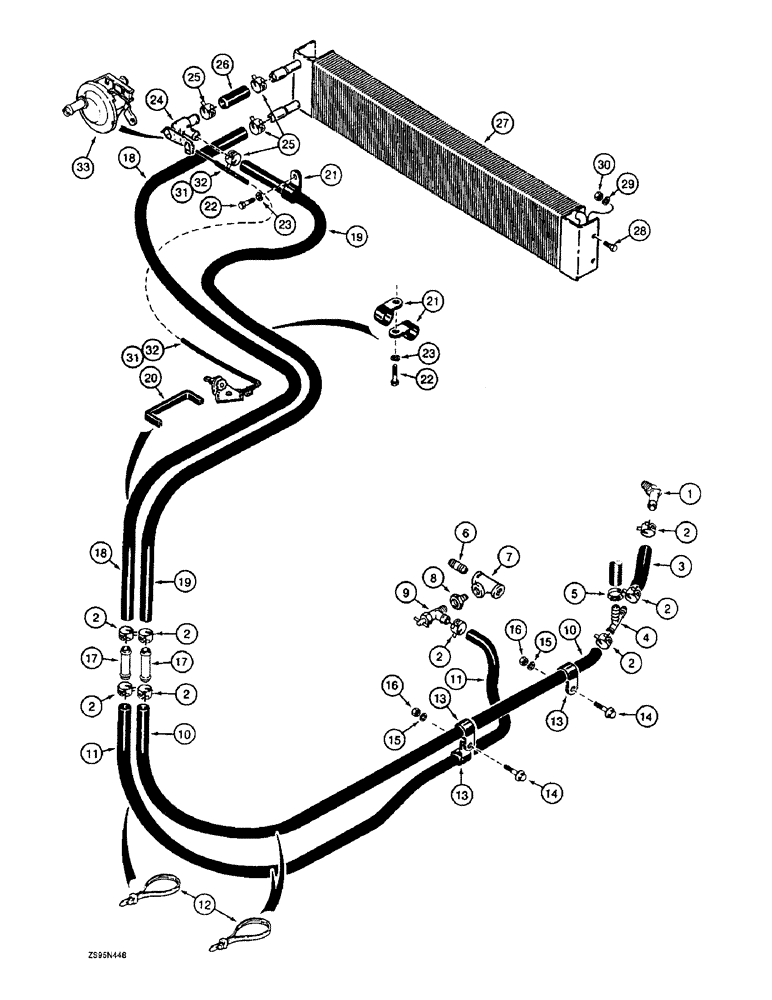

Запчасти Case 1150E (9-100) - CAB HEATING SYSTEM - DOZER MODELS, ALL DOZERS EXCEPT 6" GUAGE LONG TRACK MODELS (09) - CHASSIS/ATTACHMENTS

1

217-144

45 ELBOW,45 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

- 45 degree, 5/8 stem end x 1/2 inch PT, return hose, at water pump

1шт.

2

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, , Adjustable #24

6-8шт.

3

REF

INSTRUCTION

HOSE - 4 inch (102 mm) long, return to water pump, cut from 97252CX, see below

1шт.

For the side brackets that mount the heater core see Figure 9-112.

1шт.

4

A154014

CONNECTOR, ELEC

TEE - stem fitting, special, heater return hoses and coolant conditioning filter hose, if used

1шт.

5

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP, HOSE, , Adj., Coolant conditioning filter, at tee, if used #06, .44/.78 Type F Worm

1шт.

6

221-185

PIPE,Nipple, 1/2" NPT x 1 1/8"

NIPPLE - straight, 1/2 PT x 1-1/8 inch, supply hose

1шт.

7

221-1424

TEE,Pipe, 1/2" NPT

- pipe, 1/2 inch, supply hose

1шт.

8

221-1089

REDUCER,Hex, 1/2" x 3/8" NPT

- pipe, 1/2 male x 3/8 inch female, black

1шт.

9

301803R1

SHUT-OFF VALVE

VALVE - shutoff, heater supply hose

1шт.

10

R55244

HEATER HOSE,15.50 mm ID x 4500.00 mm

Heater return, to engine water pump, Cut from 97252C1, See below 15.50 mm ID x 4500.00 mm

1шт.

For the side brackets that mount the heater core see Figure 9-112.

1шт.

11

R55245

HEATER HOSE,15.50 mm ID x 3700.00 mm

From engine, Cut from R54970,See below 15.50 mm ID x 3700.00 mm

1шт.

For the side brackets that mount the heater core see Figure 9-112.

1шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

13

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

P-type, Hoses 7/8", Insul, 3/8" Bolt

3шт.

14

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

2шт.

15

492-11038

LOCK WASHER,3/8"

2шт.

16

425-106

NUT,3/8"-16, Cl 5

2шт.

17

S104739

TUBE,0.625" OD x 3" L

- hose splice

2шт.

18

R55243

HEATER HOSE,15.50 mm ID x 2300.00 mm

- To heater core, Cut from R54970, See below 15.50 mm ID x 2300.00 mm

1шт.

For the side brackets that mount the heater core see Figure 9-112.

1шт.

19

R55242

HEATER HOSE,15.50 mm ID x 2550.00 mm

- From flow control valve, Cut from 97252CX, See below 15.50 mm ID x 2550.00 mm

1шт.

For the side brackets that mount the heater core see Figure 9-112.

1шт.

20

D33500

LINING

TRIM - edge, 7 inch (178 mm) long, hose protection, on cab frame, cut from F42827, see below

1шт.

21

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

P-type, Hoses 7/8", Insul, 3/8" Bolt

3шт.

22

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

23

492-11038

LOCK WASHER,3/8"

2шт.

24

F63865

VALVE

- heater, flow control, prior to P.I.N. JAK0009016

1шт.

25

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, #24

4шт.

26

R54967

HEATER HOSE,15.50 mm ID x 70.00 mm

- Return, Heater core to flow control valve, Cut from 97252CX, See below 15.50 mm ID x 70.00 mm

1шт.

For the side brackets that mount the heater core see Figure 9-112.

1шт.

27

F45204

HEAT-EXCHANGER

CORE - heater

1шт.

28

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

4шт.

29

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

30

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

31

F64904

CONTROL

- heater, with cable, prior to P.I.N. JAK0009016

1шт.

32

1999666C1

CONTROL,862.4mm L

- heater, with cable, P.I.N. JAK0009016 and after

1шт.

33

1331087C1

HEATER VALVE

VALVE - flow control, heater, P.I.N. JAK0009016 and after

1шт.

R54970

HEATER HOSE,15.88mm ID x 15240mm Bulk

15.88 mm ID x 15240.0 mm

1шт.

For the side brackets that mount the heater core see Figure 9-112.

1шт.

97252CX

HOSE

- bulk, 5/8 (16) x 1 (25) x 600 inch (15240 mm) long

1шт.

For the side brackets that mount the heater core see Figure 9-112.

1шт.

F42827

TRIM,2946.4mm L

TRIM - edge, bulk, 116 inch (2946 mm) long

1шт.
