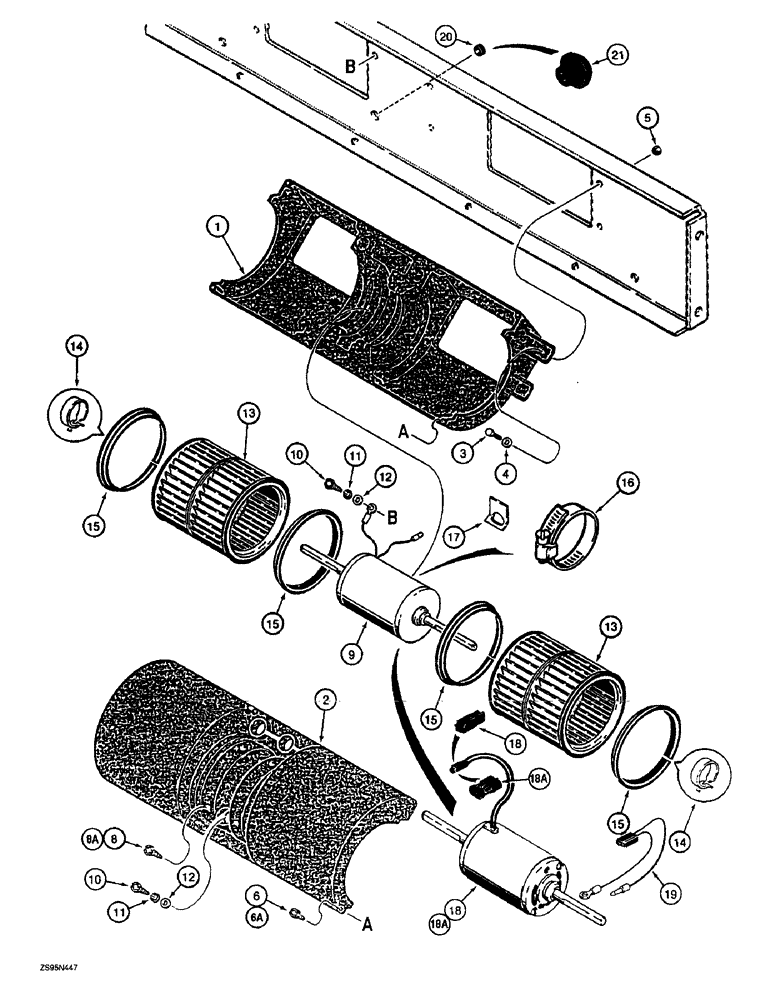

Запчасти Case 1150E (9-098) - ROPS CAB BLOWER - INSIDE CAB ROOF (09) - CHASSIS/ATTACHMENTS

1

F64740

HOUSING

- fan, lower

1шт.

2

F64741

HOUSING

- fan, upper

1шт.

3

463-11012

SCREW,Hex Hd, #10-24 x 3/4"

- machine, hex head, No. 10 NC x 3/4 inch

4шт.

4

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 3/64 inch

4шт.

5

230-42409

NUT,#10-24, GA

NUT - hex, self locking, No. 10 NC

4шт.

6

187-1916

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

SCREW - self tapping, pan head Phillips, No. 8-16 x 3/4 inch, if used

8шт.

6a

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

SCREW, SELF TAP, , If used Cross Pan Hd, M4.8 x 19, Coated

8шт.

8

187-1920

SELF-TAP SCREW,Cross Pan Hd, #8 x 1"

SCREW - self tapping, pan head Phillips, No. 8-16 x 1 inch, motor mounting, if used

4шт.

8a

187-1928

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

SCREW - self tapping, pan head Phillips, No. 10-16 x 1 inch, motor mounting, if used

4шт.

9

F96902

MOTOR, ELECTRIC

MOTOR - blower, 24 volt, with bullet type connector, no longer available, order A187600 motor, A187699 adapter harness, and R54547 grommet, Refs. 18, 19 and 21

1шт.

For main cab wiring harness see Figure 4-46 - 4-52.

1шт.

10

260-16512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - self tapping, pan Phillips, No. 10-16 x 3/4 "

3шт.

11

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

3шт.

12

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 3/64 inchå

3шт.

13

F64935

BLOWER,Fan

FAN - condenser blower

2шт.

14

F64936

CLAMP

- steel spring, fan retaining

2шт.

15

F64739

RING

- plastic, fan retaining

4шт.

16

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - adj., 2-1/16 - 3 inch dia., motor retaining

1шт.

17

R51563

CLIP,ELECTRICAL

CLIP - motor retaining clamp

1шт.

18

A187600

MOTOR, ELECTRIC

MOTOR - blower, 24 volt, with molded terminal, prior to dozer P.I.N. JAK0009016 or loader P.I.N. JAK0009982

1шт.

For main cab wiring harness see Figure 4-46 - 4-52.

1шт.

18a

1546448C1

MOTOR, ELECTRIC

MOTOR - blower, 24 volt, with molded terminal, dozer P.I.N. JAK0009016 or loader P.I.N. JAK0009982 and after

1шт.

For main cab wiring harness see Figure 4-46 - 4-52.

1шт.

18a

370512A1R

REMAN-ELECTRIC MOTOR

1150E, Aft. P.I.N. JAK0009016, 1155E, Aft. P.I.N. JAK0009982, Reman For New P/N 1546448C1

1шт.

18a

370512A1C

CORE-ELECTRIC MOTOR

Return Number

1шт.

19

A187699

HARNESS

- adapter, use to adapt R53391 main cab harness with bullet type connector to A187600 blower motor with molded wire terminal, if used

1шт.

For main cab wiring harness see Figure 4-46 - 4-52.

1шт.

20

353-700

BUSHING

- open/closed, 3/8 inch ID, use with F96902 motor wire, in blower mounting panel, if used

1шт.

21

R54547

GROMMET

- 1-1/32 inch (26 mm) hole size, use with A187600 motor wire, in blower mounting panel, if used

1шт.
