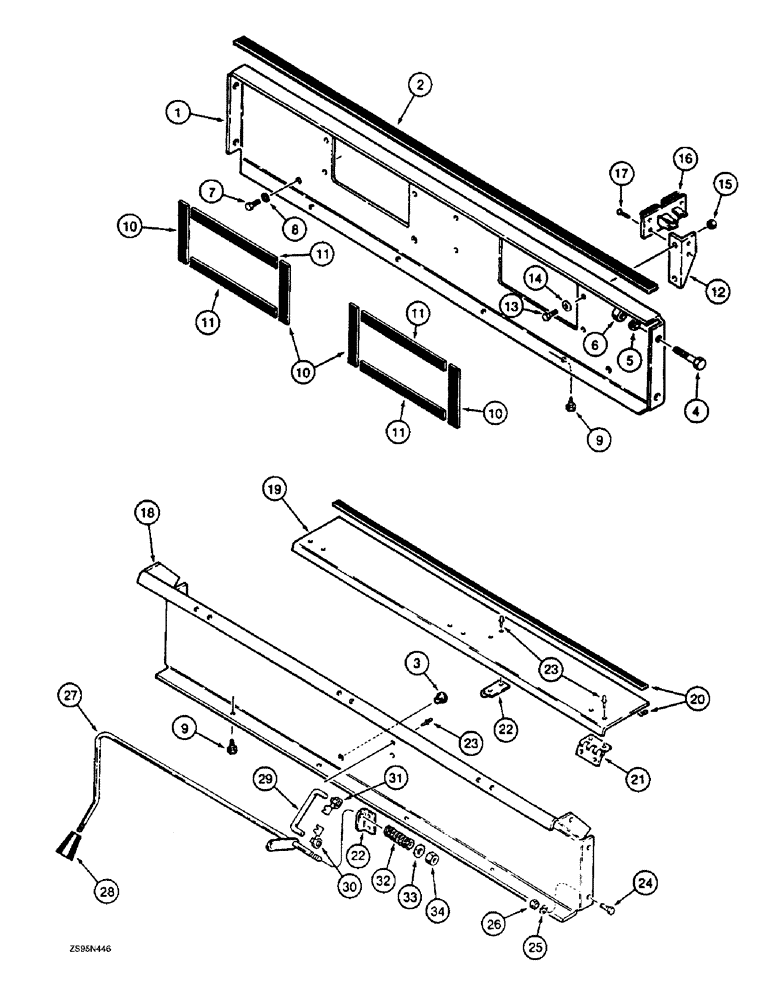

Запчасти Case 1150E (9-096) - BLOWER HOUSING AND AIR FLOW CONTROL, INSIDE CAB ROOF (09) - CHASSIS/ATTACHMENTS

1

1975819C1

PANEL

- blower mounting, with 1 inch hole for A187600 blower motor wire, replaces panel with 3/8 inch hole for F96902 blower motor wire (old panel may be reworked to enlarge hole, see Figure 9-102 for blower motor and grommet for hole)

1шт.

2

R44282

SEAL

- blower mounting panel, 31-1/2 inch (800 mm) long, top

1шт.

3

REF

INSTRUCTION

GROMMET - blower panel, see Figure 9-98 for correct size

1шт.

4

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

5

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

6

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

7

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

2шт.

8

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

9

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - self-tapping, special, No. 10-16 x 3/4 inch, Phillips, with washer, No. 10 - 16 NC x 3/4"

8шт.

10

F64818

SEALING STRIP

STRIP - foam, adhesive-backed, 3-13/16 inch (96 mm) long, cut from F64119X bulk strip, see below

4шт.

11

F64817

SEALING STRIP

STRIP - foam, adhesive-backed, 6-1/2 inch (165 mm) long, cut from F64119X bulk strip, see below

4шт.

12

R52799

SUPPORT

BRACKET - resistor mounting

1шт.

13

463-11012

SCREW,Hex Hd, #10-24 x 3/4"

- machine, hex head, No. 10 NC x 3/4 inch

2шт.

14

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 3/64 inch

2шт.

15

230-42409

NUT,#10-24, GA

NUT - hex, self-locking, No. 10 NC

2шт.

16

F44903

RESISTOR

- blower speed, 24 volt

1шт.

17

294-1658

SELF-TAP SCREW,Cross Truss Hd, #10 x 1/2"

SCREW - self-tapping, truss head Phillips, No. 10-16 x 1/2 "

2шт.

18

R51716

PANEL

- blower, rear

1шт.

19

R44793

PANEL

- air flow control

1шт.

20

REF

INSTRUCTION

SEAL - foam, air flow control panel, 23-5/8 inch (600 mm) long, cut from A42905X bulk, see below

2шт.

21

F64065

HINGE

- panel

3шт.

22

R44794

SUPPORT

BRACKET - panel, air flow control

2шт.

23

151-546

RIVET,Pop, 1/8" x 5/16"

- break mandrel, 1/8 x 5/16 inch

16шт.

24

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

6шт.

25

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

26

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

6шт.

27

R51717

LEVER

ROD - air flow control

1шт.

28

F64341

KNOB

- adjustment lever

1шт.

29

R44798

THREADED ROD

ROD - air flow control

1шт.

30

F43349

CLIP

- adjustment, Serial Range: lever-rod

1шт.

31

F43350

CLIP

-, Serial Range: rod-bracket

1шт.

32

F62245

SPRING

- adjustment lever

1шт.

33

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

1шт.

34

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

1шт.

F64119X

GASKET

STRIP - foam, bulk, 1/16 (1.5) x 1/2 (13) x 1200 inch (30480 mm), adhesive-backed

1шт.

A42905X

FOAM

SEAL - foam, 1/8 (3) x 1/2 (13) x 360 inch (9144 mm) long, bulk roll

1шт.
