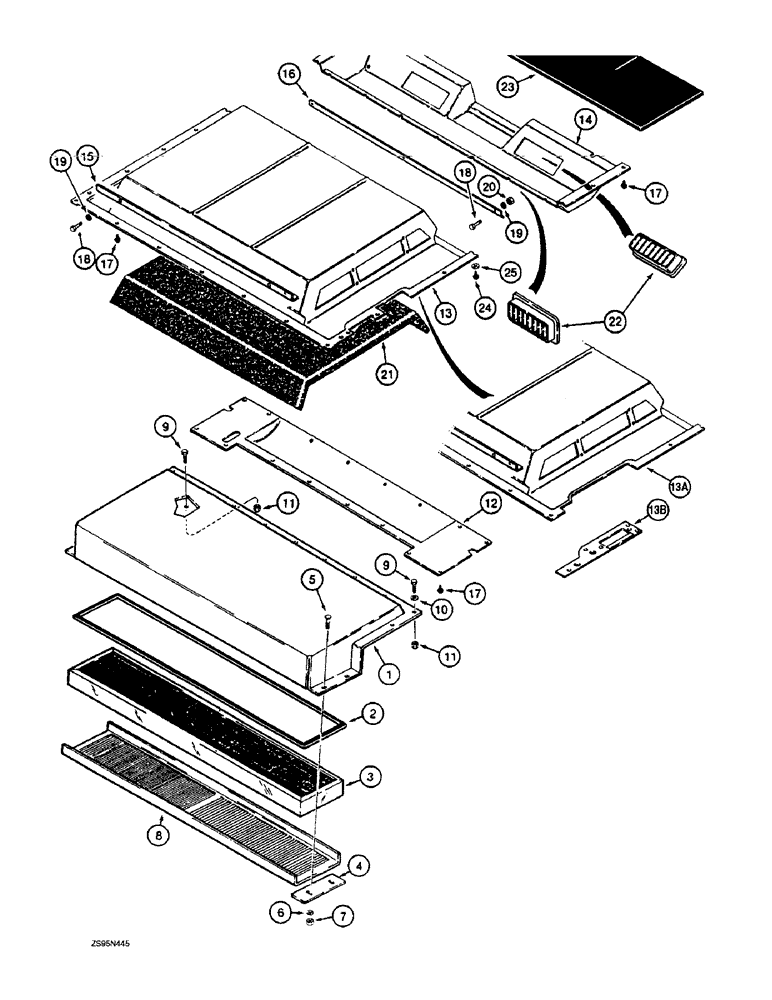

Запчасти Case 1150E (9-094) - CAB AIR FILTER AND HEADLINERS (09) - CHASSIS/ATTACHMENTS

1

R44782

HOUSING

- filter

1шт.

2

F63669

SEAL

- rubber, housing

1шт.

3

F64318

AIR FILTER

FILTER - air

1шт.

4

R44783

LARGE PLATE

PLATE - retainer, filter

2шт.

5

411-416

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1", Gr 2

BOLT - carriage, 1/4 NC x 1 inch, grade 2

4шт.

6

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

4шт.

7

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

4шт.

8

R46136

SIEVE

LOUVER - filter

1шт.

9

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

13шт.

10

F42778

WASHER

- special

11шт.

11

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

13шт.

12

R51722

LINING

HEADLINER - rear, blower cover

1шт.

13

R53248

PADDING

HEADLINER - center, if used

1шт.

13a

1999699C1

ROOF

HEADLINER - center, if used

1шт.

13b

1999698C1

CLAMP

- headliner, if used

1шт.

14

R53247

PADDING

HEADLINER - front

1шт.

15

R51723

ANGLE BAR

BRACKET - rear, headliner support

1шт.

16

R52822

ANGLE

BRACKET - front, headliner support

1шт.

17

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - self-tapping, special, No. 10-16 x 3/4 inch, Phillips, with washer, No. 10 - 16 x 3/4"

35шт.

18

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

5шт.

19

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

20

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

3шт.

21

R51915

FOAM

PAD - center headliner, vinyl covered, attach with adhesive, see below

1шт.

22

L109555

GUARD

LOUVER - front headliner

6шт.

23

R53394

FOAM

PAD - foam with reflective seal, 43-11/16 inch (1110 mm) long, cut from R51916 bulk pad, see below, attach to underside of roof front above heater and air conditioner cores

1шт.

24

260-16512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - self-tapping, pan Phillips, No. 10-16 x 3/4 "

9шт.

25

195-81026

WASHER,.266" x 13/16" x .079"

- flat, 17/64 x 13/16 x 3/32 inch

9шт.

R51916

FOAM

PAD - bulk, 1/2 (13) x 10-7/16 (265) x 49-5/8 inch (1260 mm) long, sealed surface foam

1шт.

345-41

ADHESIVE

CEMENT - contact, yellow, 1 pint, use to attach Ref. 23 foam pad

1шт.

345-44

ADHESIVE

- spray can, 3M No. 74, 23 ounce, for attaching foam pads to metal surfaces

1шт.
