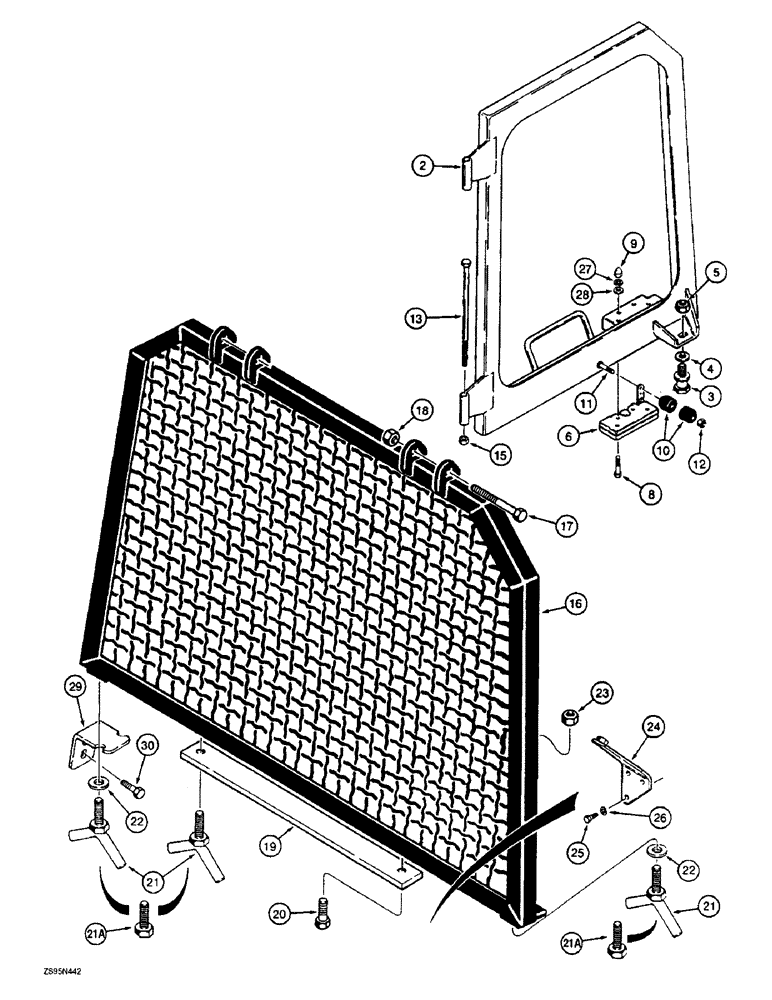

Запчасти Case 1150E (9-088) - ROPS CAB DOOR WINDOW AND REAR SCREEN (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
R53183
GLASS,CAB
FRAME - door window, left-hand, not shown
1шт.
2
R53184
GLASS,CAB
FRAME - door window, right-hand
1шт.
3
R51754
STRIKER
STRIKER - on window frame, outer
2шт.
4
495-21050
WASHER,7/16"
- flat, 1/2 x 1-1/4 x 5/64 inch
2шт.
5
131-595
NUT,7/16"-14
NUT - hex, self-locking, 7/16 inch NC
2шт.
6
R55002
LATCH
- window, right-hand
1шт.
7
R55003
LATCH ASSY.
LATCH - window, left-hand, not shown
1шт.
9
129-884
CROWN NUT,Crown, 1/4"-20
- dome, 1/4 inch NC
8шт.
10
L35871
FENDER
BUMPER - rubber, latch release knob
4шт.
11
470-11016
SCREW,Pan HD, #10 - 24 x 1"
- machine, pan head slotted, No. 10 NC x 1 inch
2шт.
12
225-14110
NUT,#10-24
2шт.
13
413-6152
BOLT,Hex, 3/8" - 16 x 9-1/2", Gr 5
- hex, 3/8 NC x 9-1/2 inch
4шт.
15
230-4216
LOCK NUT,3/8"-16, GA
NUT - hex, self-locking, 3/8 inch NC
4шт.
16
R53506
BAFFLE
SCREEN - rear
1шт.
17
413-660
BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5
- hex, 3/8 NC x 3-3/4 inch
2шт.
18
230-4216
LOCK NUT,3/8"-16, GA
NUT - hex, self-locking, 3/8 inch NC
2шт.
19
N7662
BAR
- screen mounting
1шт.
20
413-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
- hex, 3/8 NC x 1-1/2 inch
1шт.
21
N8712
BOLT
BOLT - wing-type, special
3шт.
21a
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
- hex, 3/8 NC x 1 inch, if used
3шт.
22
495-21044
WASHER,3/8"
(flat, 7/16 x 1 x 5/64 inch) 3/8"
2шт.
23
131-103
NUT,Tinn, 1/4"-20
- J-type, 1/4 inch NC, self-locking
1шт.
24
R53510
SUPPORT
BRACKET - rear screen retaining, for open screen
1шт.
25
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
- hex, 3/8 NC x 1 inch
2шт.
26
492-11038
LOCK WASHER,3/8"
2шт.
27
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
8шт.
28
495-11028
WASHER,1/4", SAE
(flat, 9/32 x 5/8 x 1/16") 1/4", SAE
8шт.
29
1999640C1
BRACKET
- rear screen, if used
2шт.
30
413-816
BOLT,Hex, 1/2" - 13 x 1", Gr 5
If used Hex, 1/2"-13 x 1", G5, Full Thd
4шт.
8
413-420
BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5
8шт.
Выбрано товаров: 30
