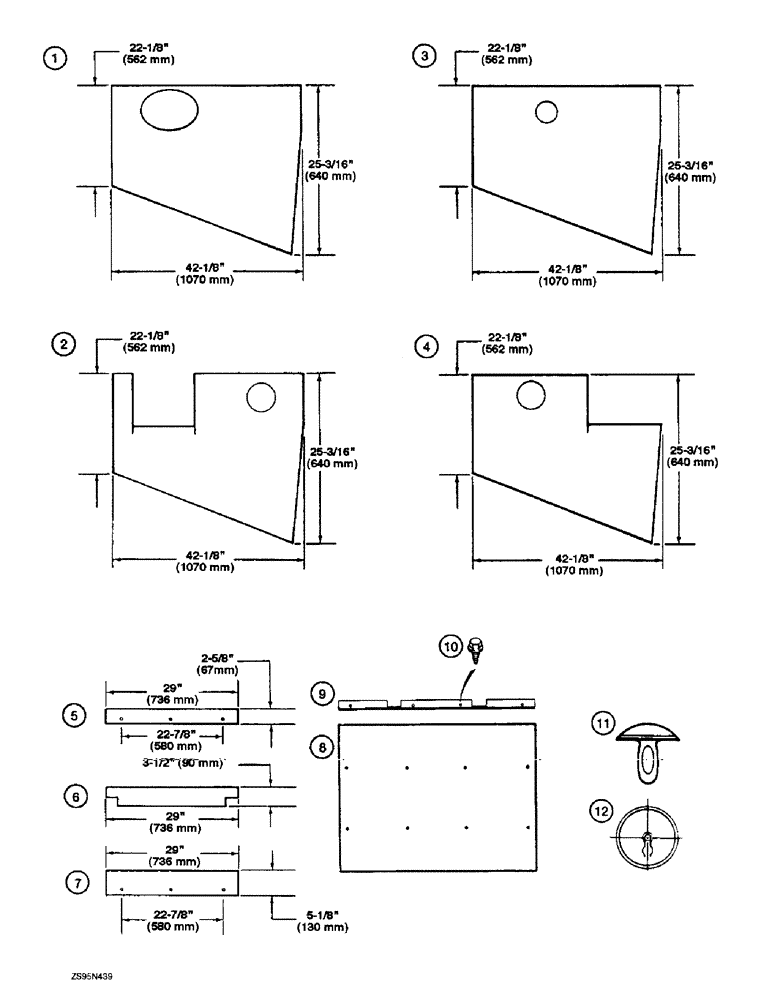

Запчасти Case 1150E (9-082) - NOISE REDUCTION AND ANTI-RECIRCULATION PADS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

PAD - hood, loader models, right-hand, cut from R30870

1шт.

For additional noise reduction pads, see Figure 9-80.

1шт.

2

REF

INSTRUCTION

PAD - hood, loader models, left-hand, cut from R30870

1шт.

For additional noise reduction pads, see Figure 9-80.

1шт.

3

REF

INSTRUCTION

PAD - hood, dozer and drawbar models, right-hand, cut from R30870

1шт.

For additional noise reduction pads, see Figure 9-80.

1шт.

4

REF

INSTRUCTION

PAD - hood, dozer and drawbar models, left-hand, cut from R30870

1шт.

For additional noise reduction pads, see Figure 9-80.

1шт.

5

REF

INSTRUCTION

PAD - upper radiator baffle, loader models only, cut from R30870

1шт.

For additional noise reduction pads, see Figure 9-80.

1шт.

6

REF

INSTRUCTION

PAD - lower radiator baffle, loader models only, cut from R30870

1шт.

For additional noise reduction pads, see Figure 9-80.

1шт.

7

REF

INSTRUCTION

PAD - upper and lower radiator baffle, dozer and drawbar models, cut from R30870

2шт.

For additional noise reduction pads, see Figure 9-80.

1шт.

8

R48860

PADDING

HEADLINER - ROPS canopy

1шт.

9

R58403

ANGLE

RETAINER - headliner, if used

2шт.

10

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/4 inch

8шт.

11

151-706

CLIP,Rd 7/8" Hd, 1/4" Hole

RETAINER - black, plastic, 1/4 hole size x 7/8 inch head dia, ROPS canopy headliner, if used

8шт.

12

R37160

RETAINER

- spring clip, used with hood and side shield noise reduction pad

1шт.

R30870

PAD

- bulk, 54 (1372) x 72 (1829) x 1 inch (25 mm) thick

1шт.

For additional noise reduction pads, see Figure 9-80.

1шт.

345-44

ADHESIVE

- spray can, 3M No. 74, 23 ounce, for attaching foam pads to metal surfaces

1шт.
