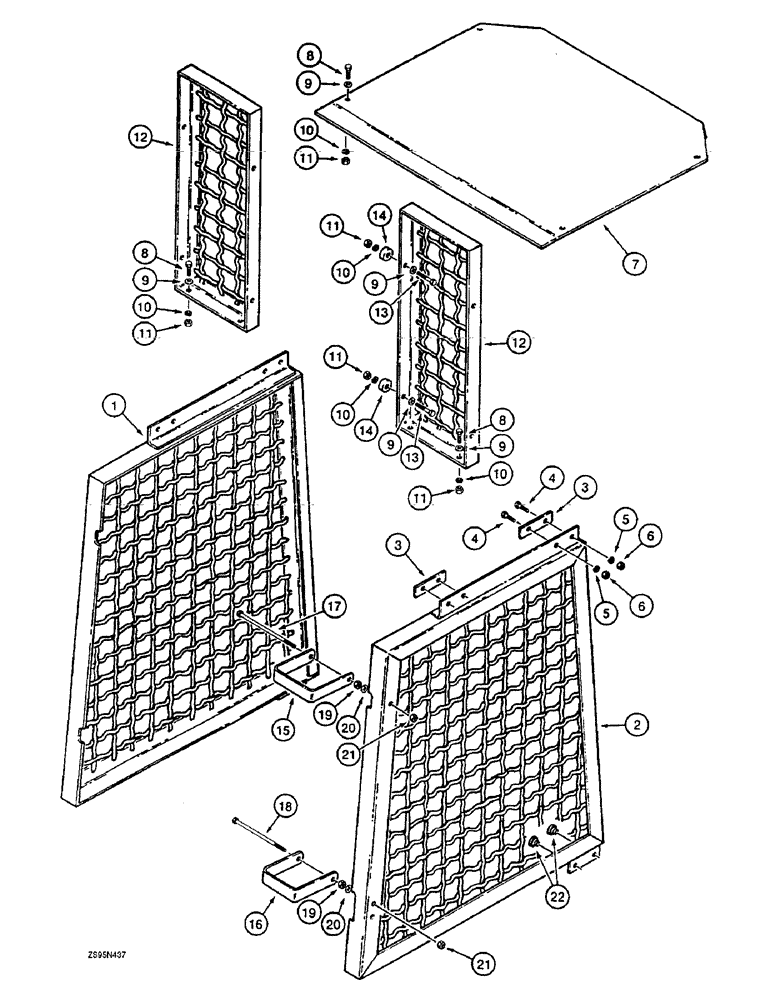

Запчасти Case 1150E (9-078) - ROPS CANOPY BRUSH SCREENS AND EXTENSION (09) - CHASSIS/ATTACHMENTS

1

R39249

BAFFLE

SCREEN - left-hand side

1шт.

2

R39248

BAFFLE

SCREEN - right-hand side

1шт.

3

F44446

NOZZLE HOLDER

SPACER - upper, side screen

4шт.

4

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

8шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

6

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

7

R39250

ROOF

CANOPY - brush guard, dozer and drawbar models only

1шт.

8

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

6шт.

9

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

10шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

10шт.

11

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

10шт.

12

F96631

SCREEN

- front, lower, dozer and drawbar models only

2шт.

13

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

14

R39251

SPACER

- front screen mounting, dozer and drawbar models only

4шт.

15

F43766

SUPPORT

CLAMP - screen mounting, rear, upper

2шт.

16

F43767

SUPPORT

CLAMP - screen mounting, rear, lower

2шт.

17

413-8112

BOLT,Hex, 1/2" - 13 x 7", Gr 5

- hex, 1/2 NC x 7 inch, upper clamp

2шт.

18

113-443

BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 5

Lower clamp Hex, 1/2"-13 x 6 1/2", G5

2шт.

19

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

20

T53868

BUSHING

SPACER - filter mounting, clamp

4шт.

21

131-1308

JAM NUT,Jam, 1/2"-13

NUT - hex, jam, self-locking, 1/2 inch NC

4шт.

22

R38089

CUSHION ASSY.

BUMPER - rubber, side screen

4шт.
