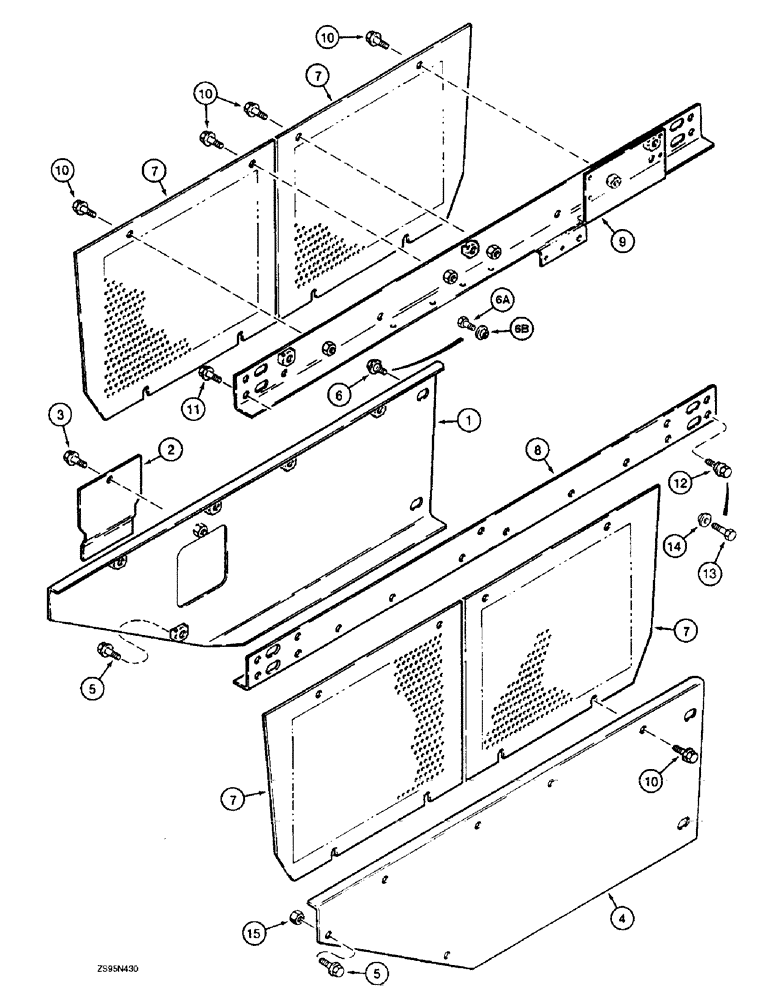

Запчасти Case 1150E (9-066) - SIDE SHIELDS - LOADER MODELS (09) - CHASSIS/ATTACHMENTS

1

R57543

SHIELD

- lower left hand side, was R53895

1шт.

For noise reduction pads used with lower side shields see Figure 9-84.

1шт.

2

R51249

LARGE PLATE

COVER - access, lower left hand side shield

1шт.

3

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

1шт.

4

R57544

SHIELD

- lower right hand side, was R53897

1шт.

For noise reduction pads used with lower side shields see Figure 9-84.

1шт.

5

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

4шт.

6

R53902

BOLT

BOLT ASSEMBLY - special, no longer available, replace with 413-820 bolt and R54996 spacer, Refs. 6A and 6B

4шт.

6a

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch, used on models with Ref. 6B spacer, if used

4шт.

6b

R54996

SPACER

- 1-1/8 inch O.D., 1/2 inch NC, used on models with Ref. 6A bolt, if used

4шт.

7

R51154

PANEL, SIDE

SHIELD - upper, side, front and rear, both sides, bolt-on

4шт.

8

R53365

SUPPORT

BRACKET - right hand, upper side, Serial Range: shields-hood

1шт.

9

R53366

SUPPORT

BRACKET - left hand, upper side, Serial Range: shields-hood

1шт.

10

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

22шт.

11

160-105

BOLT,Hex, 1/2" - 13 x 3/4", Gr 8

4шт.

12

R49739

BOLT

- special, if used

4шт.

13

413-814

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5

- hex, 1/2 NC x 7/8 inch, used on models with Ref. 14 spacer, if used

4шт.

14

R54996

SPACER

- 1-1/8 inch O.D., 1/2 inch NC, used on models with Ref. 13 bolt, if used

4шт.

15

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, If used 1/2"-13, G5

2шт.
