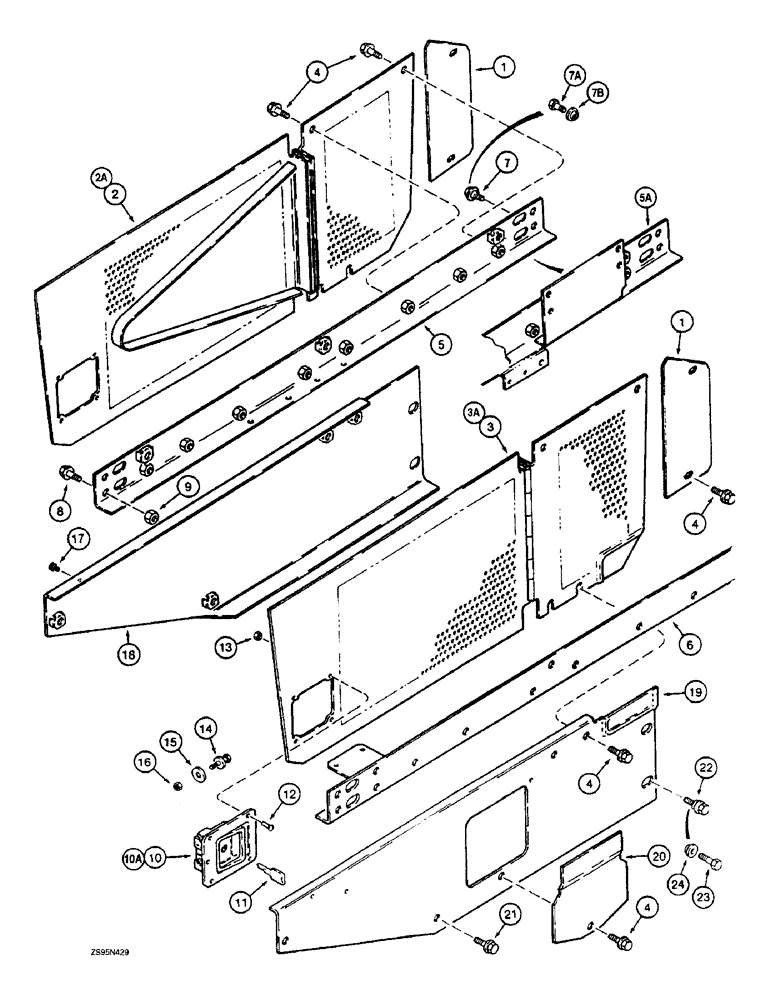

Запчасти Case 1150E (9-064) - SIDE SHIELDS - DOZER AND DRAWBAR MODELS (09) - CHASSIS/ATTACHMENTS

1

R50133

COVER

- front side shield, at radiator shroud, if used

2шт.

2

R53903

SHIELD

- left hand side, hinged, used on models with No. 10 latch mounting hardware, Refs. 12 and 13, if used

1шт.

2a

R55087

PROTECTION PLATE

SHIELD - left hand side, hinged, used on models with 1/4 inch latch mounting hardware, Refs. 12A and 13A, if used

1шт.

3

R53905

SHIELD

- right hand side, hinged, used on models with No. 10 latch mounting hardware, Refs. 12 and 13, if used

1шт.

3a

R55089

GUARD ASSY.

SHIELD - right hand side, hinged, used on models with 1/4 inch latch mounting hardware, Refs. 12A and 13A, if used

1шт.

4

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

13шт.

5

R53365

SUPPORT

BRACKET - hood mounting, left or right hand, side shield to hood, all dozers except left hand on 62 inch gauge long track

1шт.

5a

R53366

SUPPORT

BRACKET - left hand side shield to hood, 62 inch gauge long track

1шт.

6

R54143

SUPPORT

BRACKET - right hand side shield to hood, no longer used, order R53365 Ref. 5 above

1шт.

7

R49739

BOLT

- special, bracket to radiator shroud, if used

4шт.

7a

413-814

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5

- hex, 1/2 NC x 7/8 inch, used on models with Ref. 7B spacer, if used

4шт.

7b

R54996

SPACER

- 1-1/8 O.D., 1/2 inch, used on models with Ref. 7A bolt, if used

4шт.

8

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

Bracket to upright frame Hex Flg, 1/2"-13 x 1 1/4", G8, Full Thd

4шт.

9

231-1448

NUT,1/2"-13, GB

- hex, self locking, 1/2 inch NC

4шт.

10

R49213

LATCH ASSY.

LATCH - side shields, uses No. 10 mounting hardware, if used

2шт.

10a

R54912

LATCH ASSY.

LATCH - side shields, uses 1/4" mounting hardware, if used

2шт.

11

R49215

KEY

- latch

2шт.

12

470-1108

SCREW,Slotted Pan Hd, #10-24 x 1/2"

- machine, pan head slotted, No. 10 NC x 1/2 inch, if used

8шт.

12a

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex flange, 1/4 NC x 3/4 inch, if used

8шт.

13

F45165

SPECIAL NUT,#10-24

NUT - hex, self locking, special, No. 10 NC, if used

8шт.

13a

231-5344

FLANGE NUT,Flg, 1/4"-20

NUT, LOCK, , if used Flg, 1/4"-20

8шт.

14

D136115

LATCH

STRIKER - latch

2шт.

15

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- flat, special, hardened

2шт.

16

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - light hex, self locking, 3/8 inch NC

2шт.

17

A161780

BUMPER

- rubber, side shields

4шт.

18

R53891

HOOD

SHIELD - side, lower left hand

1шт.

For noise reduction pads used with lower side shields see Figure 9-84.

1шт.

19

R53893

HOOD

SHIELD - side, lower right hand

1шт.

For noise reduction pads used with lower side shields see Figure 9-84.

1шт.

20

R50128

LARGE PLATE

PLATE - access, right hand side shield

1шт.

21

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

4шт.

22

R53902

BOLT

BOLT ASSEMBLY - special, no longer available, replace with 413-820 bolt and R54996 spacer, Refs. 23 and 24

4шт.

23

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch, used on models with Ref. 24 spacer, if used

4шт.

24

R54996

SPACER

- used on models with Ref. 23 bolt, if used

4шт.
